Computing Optical Flow to detect moving objects or moving camera

This tutorial implements a simple optical flow algorithm based on tracking interest points from one video frame to the next. This can be used either to detect moving objects in video when the camera is stationary, or to detect when the camera itself is moving.

This tutorial also aims at demonstrating how one can easily port other Python OpenCV tutorials to JeVois.

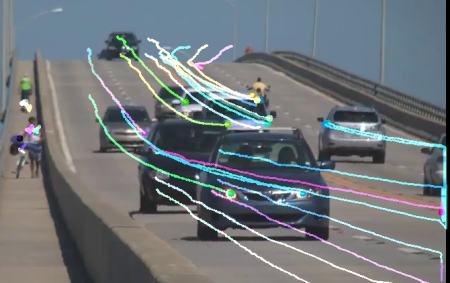

Example of tracked interest points over a movie sequence. Image from OpenCV documentation (see link below).

Approach

• We start with https://docs.opencv.org/4.0.0-alpha/d7/d8b/tutorial_py_lucas_kanade.html
• We will port the code developed in that tutorial to JeVois
• We will modify it a little to detect when all tracked points have run out of the field of view, in which case we will detect a new set of interest points and track those.

Creating the module

• Select New Python Module... from the pull-down menu of JeVois Inventor (or press CTRL-N).

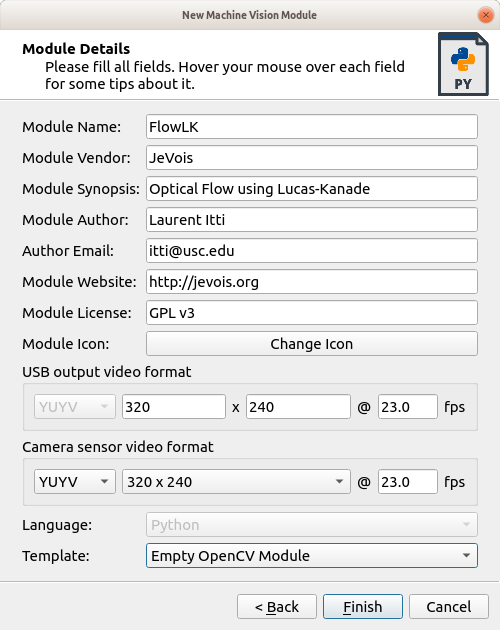

• Fill in the details as shown below:



• Allow JeVois to restart, select your new module from the Vision Module pull-down menu, and switch to the Code tab of the Inventor.

Analyzing the original code

We start by reading the tutorial at https://docs.opencv.org/4.0.0-alpha/d7/d8b/tutorial_py_lucas_kanade.html

Here is the first piece of code from that tutorial:

import numpy as np
import cv2 as cv
cap = cv.VideoCapture('slow.flv')
# params for ShiTomasi corner detection
feature_params = dict( maxCorners = 100,
                       qualityLevel = 0.3,
                       minDistance = 7,
                       blockSize = 7 )
# Parameters for lucas kanade optical flow
lk_params = dict( winSize  = (15,15),
                  maxLevel = 2,
                  criteria = (cv.TERM_CRITERIA_EPS | cv.TERM_CRITERIA_COUNT, 10, 0.03))
# Create some random colors
color = np.random.randint(0,255,(100,3))
# Take first frame and find corners in it
ret, old_frame = cap.read()
old_gray = cv.cvtColor(old_frame, cv.COLOR_BGR2GRAY)
p0 = cv.goodFeaturesToTrack(old_gray, mask = None, **feature_params)
# Create a mask image for drawing purposes
mask = np.zeros_like(old_frame)
while(1):
    ret,frame = cap.read()
    frame_gray = cv.cvtColor(frame, cv.COLOR_BGR2GRAY)
    # calculate optical flow
    p1, st, err = cv.calcOpticalFlowPyrLK(old_gray, frame_gray, p0, None, **lk_params)
    # Select good points
    good_new = p1[st==1]
    good_old = p0[st==1]
    # draw the tracks
    for i,(new,old) in enumerate(zip(good_new,good_old)):
        a,b = new.ravel()
        c,d = old.ravel()
        mask = cv.line(mask, (a,b),(c,d), color[i].tolist(), 2)
        frame = cv.circle(frame,(a,b),5,color[i].tolist(),-1)
    img = cv.add(frame,mask)
    cv.imshow('frame',img)
    k = cv.waitKey(30) & 0xff
    if k == 27:
        break
    # Now update the previous frame and previous points
    old_gray = frame_gray.copy()
    p0 = good_new.reshape(-1,1,2)
cv.destroyAllWindows()
cap.release()

To port the code to JeVois, we need to address the following:

• Our JeVois module is a Python class, with class member functions, such as process() called on every frame. This means that:
  • the JeVois engine runs the main loop of grabbing images, sending them to processing (our module), and sending the results to the host computer over USB. Hence, we will delete any code related to:
    • running a main loop, as in while(1) in the original code;
    • grabbing images, as in cap.read(); we will replace that by a get() on the inframe passed to process();
    • and display or user interaction, as in cv.imshow(), cv.waitKey(), etc; instead we will just at the end of process() run a send() for the final result image.
    • For more details, see Concepts used throughout this documentation and Tutorial on how to write new machine vision modules in Python
  • Instead of global variables (or variables created outside the main loop), we will use class member variables (with name like self.var). We initialize these in the constructor of our module: member function __init__(self).

• Looking at the original code, there are two phases in this algorithm:

  • Once when the program starts, grab a video frame and detect some interest points using goodFeaturesToTrack(), which finds a number of fairly unique-looking points that we hope can be seen again on the next video frame, even though the camera or the objects might have moved a little.
  • Then, on every subsequent frame, those points are tracked using calcOpticalFlowPyrLK(). The resulting set of points (which possibly have moved a bit) replaces the old set of points, so that the new set can be tracked on the next video frame.

  JeVois does not allow one to just grab a frame during initialization. The only time we get to process frames is when the module's process() function is called. So we will instead decide on what to do (extract good features to track, or track them) inside process(), based on whether a member variable self.old_gray exists or not:

  • On the first frame (first call to process()), it does not exist and we then find the good features to track and also create self.old_gray;
  • On subsequent frames, self.old_gray exists and we use that as a cue to now track the detected points.
• A small detail: in this example the authors imported cv2 as cv (i.e., they use prefix cv. for OpenCV functions) while we usually just import cv2 (and use prefix cv2.).
• One last small detail is that variable p1 would become NoneType when all the tracked points have disappeared from the field of view. This gave rise to an exception when trying to subindex p1 in the line good_new = p1[st==1]; hence, in our module, we add a test if p1 is None: in which we just delete self.old_gray, which will trigger finding new good points to track on the next call to process().

Writing the JeVois code

import libjevois as jevois
import cv2
import numpy as np

## Optical Flow using Lucas-Kanade
#
# Add some description of your module here.
#
# @author Laurent Itti
#
# @videomapping YUYV 320 240 23 YUYV 320 240 23 JeVois FlowLK
# @email itti@usc.edu
# @address 123 first street, Los Angeles CA 90012, USA
# @copyright Copyright (C) 2018 by Laurent Itti
# @mainurl http://jevois.org
# @supporturl http://jevois.org
# @otherurl http://jevois.org
# @license GPL v3
# @distribution Unrestricted
# @restrictions None
# @ingroup modules
class FlowLK:
    def __init__(self):
        # params for ShiTomasi corner detection
        self.feature_params = dict( maxCorners = 100,
                       qualityLevel = 0.3,
                       minDistance = 7,
                       blockSize = 7 )

        # Parameters for lucas kanade optical flow
        self.lk_params = dict( winSize  = (15,15),
                       maxLevel = 2,
                       criteria = (cv2.TERM_CRITERIA_EPS | cv2.TERM_CRITERIA_COUNT, 10, 0.03))

        # Create some random colors
        self.color = np.random.randint(0,255,(100,3))

        # Create a timer for frame rate:
        self.timer = jevois.Timer('FlowLK', 50, jevois.LOG_DEBUG)

    def process(self, inframe, outframe):
        # Grab a frame from camera sensor:
        frame = inframe.getCvBGR()
        self.timer.start()

        # If first frame, detect good interest points to track:
        if not hasattr(self, 'old_gray'):
            self.old_gray = cv2.cvtColor(frame, cv2.COLOR_BGR2GRAY)
            self.p0 = cv2.goodFeaturesToTrack(self.old_gray, mask = None, **self.feature_params)
            self.mask = np.zeros_like(frame)

        else: # if not first frame, track the interest points from previous frame to current:
            frame_gray = cv2.cvtColor(frame, cv2.COLOR_BGR2GRAY)

            # calculate optical flow
            p1, st, err = cv2.calcOpticalFlowPyrLK(self.old_gray, frame_gray, self.p0, None, **self.lk_params)

            # Select good points, if any, otherwise restart:
            if p1 is None:
                frame = cv2.add(frame, self.mask)
                del self.old_gray
            else:
                good_new = p1[st==1]
                good_old = self.p0[st==1]

                # draw the tracks
                for i,(new, old) in enumerate(zip(good_new, good_old)):
                    a,b = new.ravel()
                    c,d = old.ravel()
                    self.mask = cv2.line(self.mask, (a,b),(c,d), self.color[i].tolist(), 2)
                    frame = cv2.circle(frame, (a,b), 5, self.color[i].tolist(), -1)
                frame = cv2.add(frame, self.mask)

                # Now update the previous frame and previous points
                self.old_gray = frame_gray.copy()
                self.p0 = good_new.reshape(-1, 1, 2)

        # Send results to host computer over USB:
        fps = self.timer.stop()
        cv2.putText(frame, fps, (3,frame.shape[0]-7), cv2.FONT_HERSHEY_SIMPLEX,
                  0.4, (255,255,255), 1, cv2.LINE_AA)
        outframe.sendCv(frame)

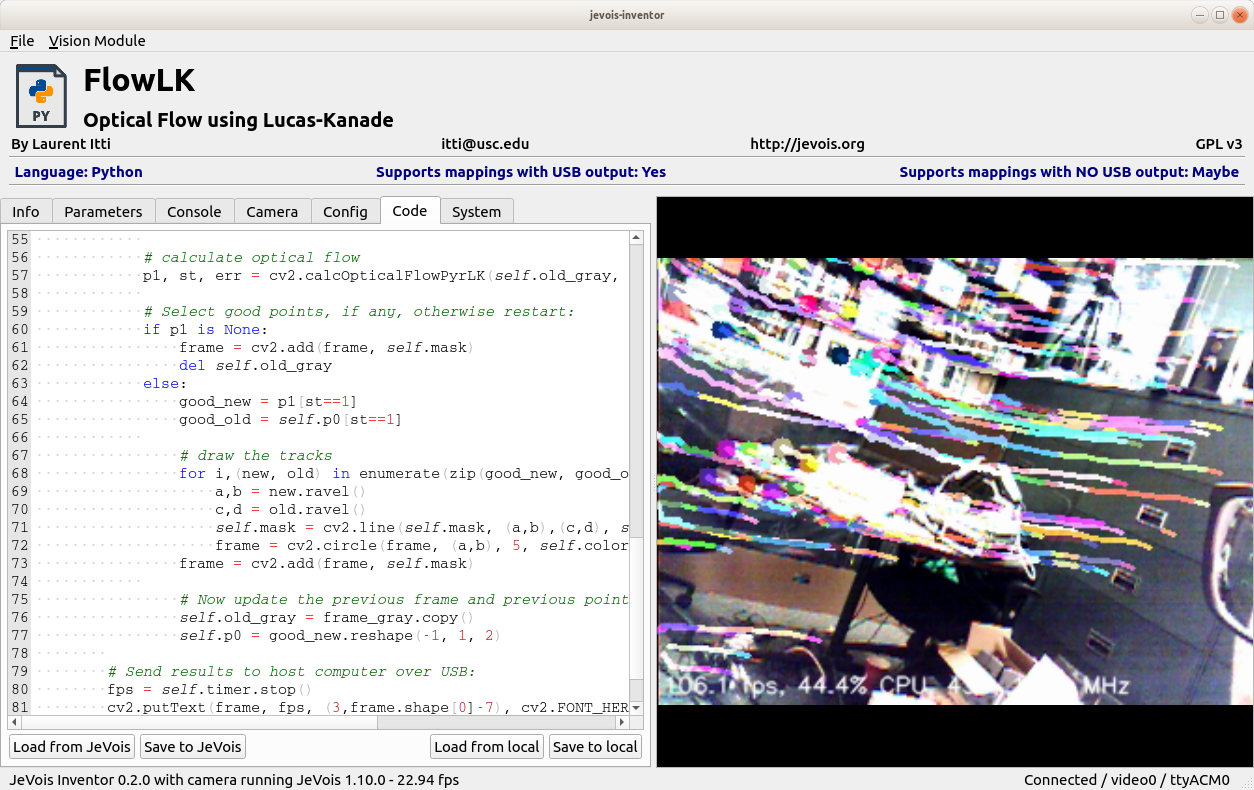

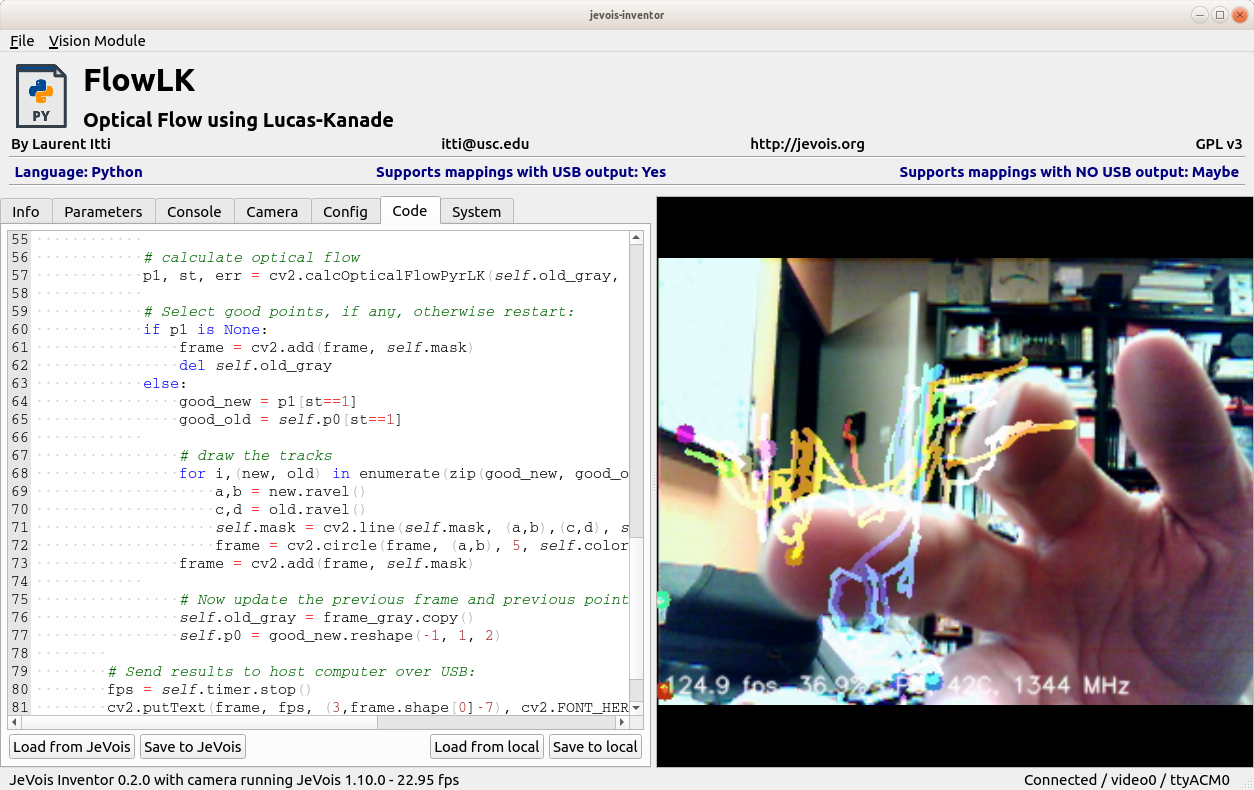

And here we go!

Quite fast actually, 80 to 140 frames/s depending on how many points get tracked.

Going further

• Try the dense optical flow computation which is in the second part of the OpenCV tutorial studied here.
• Try to port other OpenCV tutorials to JeVois.
