This is a burn test: run the quad-core saliency demo while also loading up CPU, GPU and NEON in the background. More...

Inheritance diagram for BurnTest:

[legend]

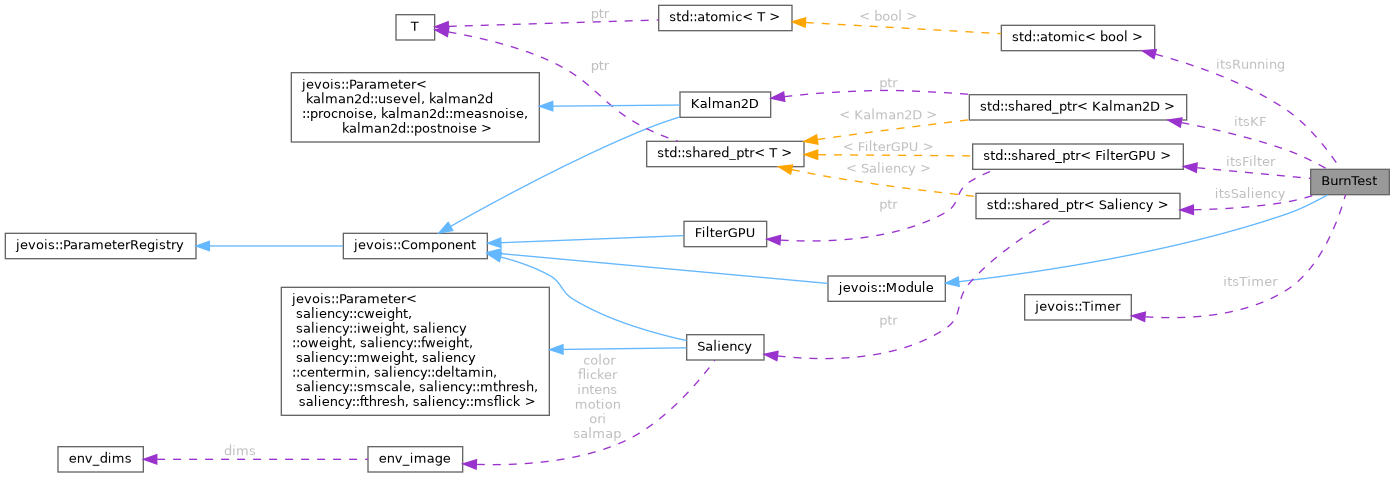

Collaboration diagram for BurnTest:

[legend]

Public Member Functions
	BurnTest (std::string const &instance)
	Constructor. More...

void	postInit () override
	Set our GPU program after we are fully constructed and our Component path has been set. More...

void	postUninit () override
	Kill our external processes on uninit. More...

virtual	~BurnTest ()
	Virtual destructor for safe inheritance. More...

virtual void	process (jevois::InputFrame &&inframe, jevois::OutputFrame &&outframe) override
	Processing function. More...

Public Member Functions inherited from jevois::Module
	Module (std::string const &instance)

virtual	~Module ()

virtual void	process (InputFrame &&inframe)

virtual void	process (InputFrame &&inframe, GUIhelper &helper)

virtual void	sendSerial (std::string const &str)

virtual void	parseSerial (std::string const &str, std::shared_ptr< UserInterface > s)

virtual void	supportedCommands (std::ostream &os)

Public Member Functions inherited from jevois::Component
	Component (std::string const &instance)

virtual	~Component ()

std::shared_ptr< Comp >	addSubComponent (std::string const &instance, Args &&...args)

void	removeSubComponent (std::shared_ptr< Comp > &component)

void	removeSubComponent (std::string const &instance, bool warnIfNotFound=true)

std::shared_ptr< Comp >	getSubComponent (std::string const &instance) const

bool	isTopLevel () const

Engine *	engine () const

bool	initialized () const

const std::string &	className () const

const std::string &	instanceName () const

std::vector< std::string >	setParamVal (std::string const &paramdescriptor, T const &val)

void	setParamValUnique (std::string const &paramdescriptor, T const &val)

std::vector< std::pair< std::string, T > >	getParamVal (std::string const &paramdescriptor) const

T	getParamValUnique (std::string const &paramdescriptor) const

std::vector< std::string >	setParamString (std::string const &paramdescriptor, std::string const &val)

void	setParamStringUnique (std::string const &paramdescriptor, std::string const &val)

std::vector< std::pair< std::string, std::string > >	getParamString (std::string const &paramdescriptor) const

std::string	getParamStringUnique (std::string const &paramdescriptor) const

void	freezeParam (std::string const &paramdescriptor)

void	unFreezeParam (std::string const &paramdescriptor)

void	freezeAllParams ()

void	unFreezeAllParams ()

std::string	descriptor () const

void	setParamsFromFile (std::string const &filename)

std::istream &	setParamsFromStream (std::istream &is, std::string const &absfile)

virtual void	paramInfo (std::shared_ptr< UserInterface > s, std::map< std::string, std::string > &categs, bool skipFrozen, std::string const &cname="", std::string const &pfx="")

void	foreachParam (std::function< void(std::string const &compname, ParameterBase *p)> func, std::string const &cname="")

std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ParameterCategory const &category)

std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ValidValuesSpec< T > const &validValuesSpec, ParameterCategory const &category)

void	setDynamicParameterCallback (std::string const &name, std::function< void(T const &)> cb, bool callnow=true)

void	removeDynamicParameter (std::string const &name)

void	setPath (std::string const &path)

std::filesystem::path	absolutePath (std::filesystem::path const &path="")

std::shared_ptr< Comp >	addSubComponent (std::string const &instance, Args &&...args)

void	removeSubComponent (std::shared_ptr< Comp > &component)

void	removeSubComponent (std::string const &instance, bool warnIfNotFound=true)

std::shared_ptr< Comp >	getSubComponent (std::string const &instance) const

bool	isTopLevel () const

Engine *	engine () const

bool	initialized () const

const std::string &	className () const

const std::string &	instanceName () const

std::vector< std::string >	setParamVal (std::string const &paramdescriptor, T const &val)

void	setParamValUnique (std::string const &paramdescriptor, T const &val)

std::vector< std::pair< std::string, T > >	getParamVal (std::string const &paramdescriptor) const

T	getParamValUnique (std::string const &paramdescriptor) const

std::vector< std::string >	setParamString (std::string const &paramdescriptor, std::string const &val)

void	setParamStringUnique (std::string const &paramdescriptor, std::string const &val)

std::vector< std::pair< std::string, std::string > >	getParamString (std::string const &paramdescriptor) const

std::string	getParamStringUnique (std::string const &paramdescriptor) const

void	freezeParam (std::string const &paramdescriptor)

void	unFreezeParam (std::string const &paramdescriptor)

void	freezeAllParams ()

void	unFreezeAllParams ()

std::string	descriptor () const

void	setParamsFromFile (std::string const &filename)

std::istream &	setParamsFromStream (std::istream &is, std::string const &absfile)

virtual void	paramInfo (std::shared_ptr< UserInterface > s, std::map< std::string, std::string > &categs, bool skipFrozen, std::string const &cname="", std::string const &pfx="")

void	foreachParam (std::function< void(std::string const &compname, ParameterBase *p)> func, std::string const &cname="")

std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ParameterCategory const &category)

std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ValidValuesSpec< T > const &validValuesSpec, ParameterCategory const &category)

void	setDynamicParameterCallback (std::string const &name, std::function< void(T const &)> cb, bool callnow=true)

void	removeDynamicParameter (std::string const &name)

void	setPath (std::string const &path)

std::filesystem::path	absolutePath (std::filesystem::path const &path="")

Public Member Functions inherited from jevois::ParameterRegistry
virtual	~ParameterRegistry ()

Protected Attributes
std::shared_ptr< Saliency >	itsSaliency

std::shared_ptr< Kalman2D >	itsKF

jevois::Timer	itsTimer

std::future< void >	itsGPUfut

std::shared_ptr< FilterGPU >	itsFilter

cv::Mat	itsGrayImg

std::future< void >	itsNEONfut

cv::Mat	itsRGBAimg

std::atomic< bool >	itsRunning

Additional Inherited Members
Protected Member Functions inherited from jevois::Component
virtual void	preInit ()

virtual void	preUninit ()

virtual void	preInit ()

virtual void	preUninit ()

Protected Member Functions inherited from jevois::ParameterRegistry
void	addParameter (ParameterBase *const param)

void	removeParameter (ParameterBase *const param)

void	callbackInitCall ()

Detailed Description

This is a burn test: run the quad-core saliency demo while also loading up CPU, GPU and NEON in the background.

This burn test exercises all aspects of your JeVois smart camera to the maximum, namely:

launch two instances of whetstone (floating point benchmark test) running in the background
launch two instances of dhrystone (integer benchmark test) running in the background
grab frames from the camera sensor
run the quad-core visual attention algorithm
in parallel, run the NEON demo that blurs the video frames using NEON accelerated processor instructions
in parallel, run the GPU demo that processes the video through 4 image filters (shaders)
stream attention video results over USB
issue messages over the serial port

This burn test is useful to test JeVois hardware for any malfunction. It should run forever without crashing on JeVois hardware. Demo display layout and markings are the same as for the DemoSaliency module.

This burn test is one of the tests that every JeVois camera produced is tested with at the factory, before the unit is shipped out.

Things to try

Select the burntest video mode (note that it is 640x300 @ 10fps, while the default MicroSD card also includes a mode with 640x300 @ 60fps that runs the DemoSaliency module instead). You need to activate it (remove the leading # sign) in JEVOIS:/config/videomappings.cfg as it is disabled by default. Observe the CPU temperature at the bottom of the live video window. If it ever reaches 75C (which it should not under normal conditions given the high power fan on the JeVois smart camera), the CPU frequency shown next to the temperature will drop down below 1344 MHz, and will then come back up as the CPU temperature drops below 75C.

Connect your JeVois camera to your host computer through a USB Tester device that measures voltage, current, and power. You should reach about 3.7 Watts under the burn test, which is the maximum we have ever been able to achieve with a JeVois unit.

Author: Laurent Itti

Videomapping:: YUYV 640 300 10.0 YUYV 320 240 10.0 JeVois BurnTest

Email:: itti@usc.edu

Address:: University of Southern California, HNB-07A, 3641 Watt Way, Los Angeles, CA 90089-2520, USA

Copyright: Copyright (C) 2016 by Laurent Itti, iLab and the University of Southern California

Main URL:: http://jevois.org

Support URL:: http://jevois.org/doc

Other URL:: http://iLab.usc.edu

License:: GPL v3

Distribution:: Unrestricted

Restrictions:: None

Definition at line 88 of file BurnTest.C.

Constructor & Destructor Documentation

◆ BurnTest()

BurnTest::BurnTest ( std::string const & instance )

inline

Constructor.

Definition at line 92 of file BurnTest.C.

References itsFilter, itsKF, and itsSaliency.

◆ ~BurnTest()

virtual BurnTest::~BurnTest ( )

inlinevirtual

Virtual destructor for safe inheritance.

Definition at line 121 of file BurnTest.C.

Member Function Documentation

◆ postInit()

void BurnTest::postInit ( )

inlineoverridevirtual

Set our GPU program after we are fully constructed and our Component path has been set.

Reimplemented from jevois::Component.

Definition at line 101 of file BurnTest.C.

References itsFilter, and itsRunning.

◆ postUninit()

void BurnTest::postUninit ( )

inlineoverridevirtual

Kill our external processes on uninit.

Reimplemented from jevois::Component.

Definition at line 110 of file BurnTest.C.

References itsGPUfut, itsNEONfut, itsRunning, and system().

◆ process()

virtual void BurnTest::process	(	jevois::InputFrame &&	inframe,
		jevois::OutputFrame &&	outframe
	)

inlineoverridevirtual

Processing function.

Reimplemented from jevois::Module.

Definition at line 124 of file BurnTest.C.

References jevois::async(), jevois::rawimage::convertToCvGray(), jevois::rawimage::convertToCvRGBA(), jevois::rawimage::drawCircle(), jevois::rawimage::drawFilledRect(), drawGist(), drawMap(), jevois::rawimage::drawRect(), h, jevois::RawImage::height, demo::int, itsFilter, itsGPUfut, itsGrayImg, itsKF, itsNEONfut, itsRGBAimg, itsRunning, itsSaliency, itsTimer, jevois::rawimage::paste(), jevois::RawImage::require(), jevois::Timer::start(), jevois::Timer::stop(), system(), demo::w, jevois::RawImage::width, and jevois::rawimage::writeText().

Member Data Documentation

◆ itsFilter

std::shared_ptr<FilterGPU> BurnTest::itsFilter

protected

Definition at line 291 of file BurnTest.C.

Referenced by BurnTest(), postInit(), and process().

◆ itsGPUfut

std::future<void> BurnTest::itsGPUfut

protected

Definition at line 290 of file BurnTest.C.

Referenced by postUninit(), and process().

◆ itsGrayImg

cv::Mat BurnTest::itsGrayImg

protected

Definition at line 292 of file BurnTest.C.

Referenced by process().

◆ itsKF

std::shared_ptr<Kalman2D> BurnTest::itsKF

protected

Definition at line 288 of file BurnTest.C.

Referenced by BurnTest(), and process().

◆ itsNEONfut

std::future<void> BurnTest::itsNEONfut

protected

Definition at line 293 of file BurnTest.C.

Referenced by postUninit(), and process().

◆ itsRGBAimg

cv::Mat BurnTest::itsRGBAimg

protected

Definition at line 294 of file BurnTest.C.

Referenced by process().

◆ itsRunning

std::atomic<bool> BurnTest::itsRunning

protected

Definition at line 295 of file BurnTest.C.

Referenced by postInit(), postUninit(), and process().

◆ itsSaliency

std::shared_ptr<Saliency> BurnTest::itsSaliency

protected

Definition at line 287 of file BurnTest.C.

Referenced by BurnTest(), and process().

◆ itsTimer

jevois::Timer BurnTest::itsTimer

protected

Definition at line 289 of file BurnTest.C.

Referenced by process().

The documentation for this class was generated from the following file:

src/Modules/BurnTest/BurnTest.C
