DemoEyeTracker Class Reference
JeVoisBase machine vision modules

Pupil detection and eye-tracker using the openEyes toolkit. More...

Inheritance diagram for DemoEyeTracker:
Inheritance graph
[legend]

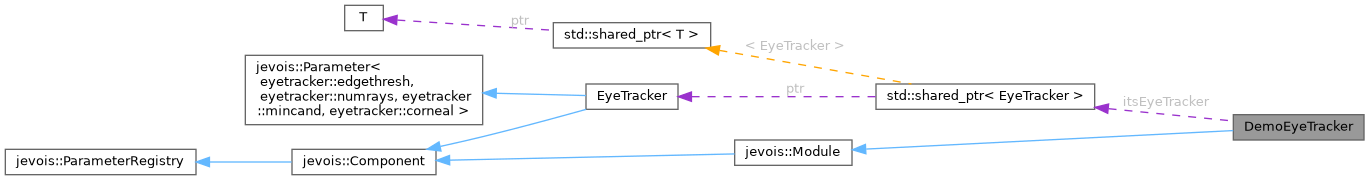

Collaboration diagram for DemoEyeTracker:
Collaboration graph
[legend]

Public Member Functions

 DemoEyeTracker (std::string const &instance)
 Constructor.

virtual ~DemoEyeTracker ()
 Virtual destructor for safe inheritance.

virtual void process (jevois::InputFrame &&inframe, jevois::OutputFrame &&outframe) override
 Processing function.

- Public Member Functions inherited from jevois::Module
 Module (std::string const &instance)

virtual ~Module ()

virtual void process (InputFrame &&inframe)

virtual void process (InputFrame &&inframe, GUIhelper &helper)

virtual void sendSerial (std::string const &str)

virtual void parseSerial (std::string const &str, std::shared_ptr< UserInterface > s)

virtual void supportedCommands (std::ostream &os)

- Public Member Functions inherited from jevois::Component
 Component (std::string const &instance)

virtual ~Component ()

std::shared_ptr< Comp > addSubComponent (std::string const &instance, Args &&...args)

void removeSubComponent (std::shared_ptr< Comp > &component)

void removeSubComponent (std::string const &instance, bool warnIfNotFound=true)

std::shared_ptr< Comp > getSubComponent (std::string const &instance) const

bool isTopLevel () const

bool initialized () const

std::string const & className () const

std::string const & instanceName () const

std::vector< std::string > setParamVal (std::string const &paramdescriptor, T const &val)

void setParamValUnique (std::string const &paramdescriptor, T const &val)

std::vector< std::pair< std::string, T > > getParamVal (std::string const &paramdescriptor) const

T getParamValUnique (std::string const &paramdescriptor) const

std::vector< std::string > setParamString (std::string const &paramdescriptor, std::string const &val)

void setParamStringUnique (std::string const &paramdescriptor, std::string const &val)

std::vector< std::pair< std::string, std::string > > getParamString (std::string const &paramdescriptor) const

std::string getParamStringUnique (std::string const &paramdescriptor) const

void freezeParam (std::string const &paramdescriptor, bool doit)

void freezeAllParams (bool doit)

std::string descriptor () const

void setParamsFromFile (std::string const &filename)

std::istream & setParamsFromStream (std::istream &is, std::string const &absfile)

virtual void paramInfo (std::shared_ptr< UserInterface > s, std::map< std::string, std::string > &categs, bool skipFrozen, std::string const &cname="", std::string const &pfx="")

void foreachParam (std::function< void(std::string const &compname, ParameterBase *p)> func, std::string const &cname="")

std::shared_ptr< DynamicParameter< T > > addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ParameterCategory const &category)

std::shared_ptr< DynamicParameter< T > > addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ValidValuesSpec< T > const &validValuesSpec, ParameterCategory const &category)

void setDynamicParameterCallback (std::string const &name, std::function< void(T const &)> cb, bool callnow=true)

void removeDynamicParameter (std::string const &name, bool throw_if_not_found=true)

void setPath (std::string const &path)

std::filesystem::path absolutePath (std::filesystem::path const &path="")

std::shared_ptr< Comp > addSubComponent (std::string const &instance, Args &&...args)

void removeSubComponent (std::shared_ptr< Comp > &component)

void removeSubComponent (std::string const &instance, bool warnIfNotFound=true)

std::shared_ptr< Comp > getSubComponent (std::string const &instance) const

bool isTopLevel () const

bool initialized () const

std::string const & className () const

std::string const & instanceName () const

std::vector< std::string > setParamVal (std::string const &paramdescriptor, T const &val)

void setParamValUnique (std::string const &paramdescriptor, T const &val)

std::vector< std::pair< std::string, T > > getParamVal (std::string const &paramdescriptor) const

T getParamValUnique (std::string const &paramdescriptor) const

std::vector< std::string > setParamString (std::string const &paramdescriptor, std::string const &val)

void setParamStringUnique (std::string const &paramdescriptor, std::string const &val)

std::vector< std::pair< std::string, std::string > > getParamString (std::string const &paramdescriptor) const

std::string getParamStringUnique (std::string const &paramdescriptor) const

void freezeParam (std::string const &paramdescriptor, bool doit)

void freezeAllParams (bool doit)

std::string descriptor () const

void setParamsFromFile (std::string const &filename)

std::istream & setParamsFromStream (std::istream &is, std::string const &absfile)

virtual void paramInfo (std::shared_ptr< UserInterface > s, std::map< std::string, std::string > &categs, bool skipFrozen, std::string const &cname="", std::string const &pfx="")

void foreachParam (std::function< void(std::string const &compname, ParameterBase *p)> func, std::string const &cname="")

std::shared_ptr< DynamicParameter< T > > addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ParameterCategory const &category)

std::shared_ptr< DynamicParameter< T > > addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ValidValuesSpec< T > const &validValuesSpec, ParameterCategory const &category)

void setDynamicParameterCallback (std::string const &name, std::function< void(T const &)> cb, bool callnow=true)

void removeDynamicParameter (std::string const &name, bool throw_if_not_found=true)

void setPath (std::string const &path)

std::filesystem::path absolutePath (std::filesystem::path const &path="")

- Public Member Functions inherited from jevois::ParameterRegistry
virtual ~ParameterRegistry ()


Protected Attributes

std::shared_ptr< EyeTracker > itsEyeTracker


Additional Inherited Members

- Protected Member Functions inherited from jevois::Component
virtual void preInit ()

virtual void postInit ()

virtual void preUninit ()

virtual void postUninit ()

virtual void preInit ()

virtual void postInit ()

virtual void preUninit ()

virtual void postUninit ()

- Protected Member Functions inherited from jevois::ParameterRegistry
void addParameter (ParameterBase *const param)

void removeParameter (ParameterBase *const param)

void callbackInitCall ()


Detailed Description

Pupil detection and eye-tracker using the openEyes toolkit.

This module implements an eye tracker, which is based on detecting the outline of the pupil.

Note that the camera has to be very close to the eye for this to work well. To be useful in practice, some sort of prism or tele-lens should be used so that the camera can be out of the field of view of the human participant.

This module can easily run at 120 frames/s.

The original eye tracking software used here can be found at http://thirtysixthspan.com/openEyes/software.html

This module only performs the required image processing. To build a complete eye tracking system, additional software is required (which can be provided by several open-source eye-tracking toolkits):

  • Establish a calibration procedure, whereby the participant will be asked to look at small dots at known locations on the computer screen. This will allow a comparison between coordinates of the pupil center as reported by JeVois and coordinates on the computer screen.
  • Compute the calibration transform (mapping from pupil coordinates reported by JeVois to screen coordinates) based on the data obtained by the calibration procedure. This has to be done once for each participant and eye-tracking session, or every time a participant moves her/his head by a large amount.
  • On new eye-tracking sessions, convert pupil coordinates reported by JeVois to screen coordinates.
  • If desired, extract events in the raw calibrated data stream, such as fixations, rapid saccadic eye movements, smooth pursuit movements, and blinks.
Author
Laurent Itti
Videomapping:
GREY 640 480 30.0 YUYV 640 480 30.0 JeVois DemoEyeTracker
Videomapping:
GREY 320 240 60.0 YUYV 320 240 60.0 JeVois DemoEyeTracker
Videomapping:
GREY 176 144 120.0 YUYV 176 144 120.0 JeVois DemoEyeTracker
Email:
itti@usc.edu
Address:
University of Southern California, HNB-07A, 3641 Watt Way, Los Angeles, CA 90089-2520, USA
Copyright
Copyright (C) 2016 by Laurent Itti, iLab and the University of Southern California
Main URL:
http://jevois.org
Support URL:
http://jevois.org/doc
Other URL:
http://iLab.usc.edu
License:
GPL v3
Distribution:
Unrestricted
Restrictions:
None

Definition at line 70 of file DemoEyeTracker.C.

Constructor & Destructor Documentation

◆ DemoEyeTracker()

DemoEyeTracker::DemoEyeTracker ( std::string const &  instance)
inline

Constructor.

Definition at line 75 of file DemoEyeTracker.C.

References itsEyeTracker.

◆ ~DemoEyeTracker()

virtual DemoEyeTracker::~DemoEyeTracker ( )
inlinevirtual

Virtual destructor for safe inheritance.

Definition at line 79 of file DemoEyeTracker.C.

Member Function Documentation

◆ process()

virtual void DemoEyeTracker::process ( jevois::InputFrame &&  inframe,
jevois::OutputFrame &&  outframe
)
inlineoverridevirtual

Processing function.

Reimplemented from jevois::Module.

Definition at line 82 of file DemoEyeTracker.C.

References jevois::rawimage::cvImage(), jevois::RawImage::height, itsEyeTracker, jevois::RawImage::require(), jevois::Timer::start(), jevois::Timer::stop(), jevois::RawImage::width, and jevois::rawimage::writeText().

Member Data Documentation

◆ itsEyeTracker

std::shared_ptr<EyeTracker> DemoEyeTracker::itsEyeTracker
protected

Definition at line 120 of file DemoEyeTracker.C.

Referenced by DemoEyeTracker(), and process().

The documentation for this class was generated from the following file:
