Fast optical flow computation using dense inverse search. More...

#include <jevoisbase/Components/OpticalFlow/FastOpticalFlow.H>

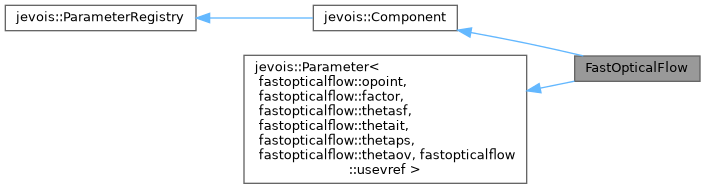

Inheritance diagram for FastOpticalFlow:

[legend]

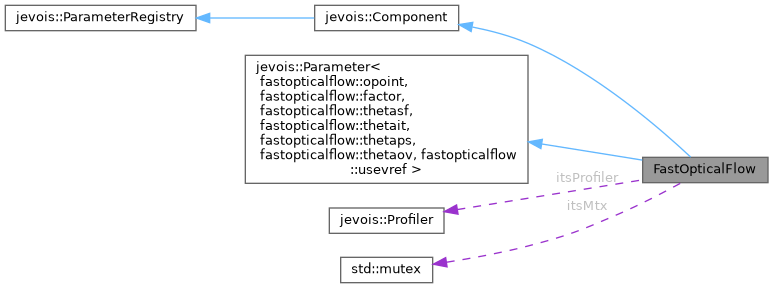

Collaboration diagram for FastOpticalFlow:

[legend]

Public Member Functions
	FastOpticalFlow (std::string const &instance)
	Constructor. More...

virtual	~FastOpticalFlow ()
	Destructor. More...

void	process (cv::Mat const &src, cv::Mat &dst)
	Process a greyscale image and return flow in a pre-allocated greyscale image of same with and 2x height. More...

Public Member Functions inherited from jevois::Component
	Component (std::string const &instance)

virtual	~Component ()

std::shared_ptr< Comp >	addSubComponent (std::string const &instance, Args &&...args)

void	removeSubComponent (std::shared_ptr< Comp > &component)

void	removeSubComponent (std::string const &instance, bool warnIfNotFound=true)

std::shared_ptr< Comp >	getSubComponent (std::string const &instance) const

bool	isTopLevel () const

Engine *	engine () const

bool	initialized () const

const std::string &	className () const

const std::string &	instanceName () const

std::vector< std::string >	setParamVal (std::string const &paramdescriptor, T const &val)

void	setParamValUnique (std::string const &paramdescriptor, T const &val)

std::vector< std::pair< std::string, T > >	getParamVal (std::string const &paramdescriptor) const

T	getParamValUnique (std::string const &paramdescriptor) const

std::vector< std::string >	setParamString (std::string const &paramdescriptor, std::string const &val)

void	setParamStringUnique (std::string const &paramdescriptor, std::string const &val)

std::vector< std::pair< std::string, std::string > >	getParamString (std::string const &paramdescriptor) const

std::string	getParamStringUnique (std::string const &paramdescriptor) const

void	freezeParam (std::string const &paramdescriptor)

void	unFreezeParam (std::string const &paramdescriptor)

void	freezeAllParams ()

void	unFreezeAllParams ()

std::string	descriptor () const

void	setParamsFromFile (std::string const &filename)

std::istream &	setParamsFromStream (std::istream &is, std::string const &absfile)

virtual void	paramInfo (std::shared_ptr< UserInterface > s, std::map< std::string, std::string > &categs, bool skipFrozen, std::string const &cname="", std::string const &pfx="")

void	foreachParam (std::function< void(std::string const &compname, ParameterBase *p)> func, std::string const &cname="")

std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ParameterCategory const &category)

std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ValidValuesSpec< T > const &validValuesSpec, ParameterCategory const &category)

void	setDynamicParameterCallback (std::string const &name, std::function< void(T const &)> cb, bool callnow=true)

void	removeDynamicParameter (std::string const &name)

void	setPath (std::string const &path)

std::filesystem::path	absolutePath (std::filesystem::path const &path="")

std::shared_ptr< Comp >	addSubComponent (std::string const &instance, Args &&...args)

void	removeSubComponent (std::shared_ptr< Comp > &component)

void	removeSubComponent (std::string const &instance, bool warnIfNotFound=true)

std::shared_ptr< Comp >	getSubComponent (std::string const &instance) const

bool	isTopLevel () const

Engine *	engine () const

bool	initialized () const

const std::string &	className () const

const std::string &	instanceName () const

std::vector< std::string >	setParamVal (std::string const &paramdescriptor, T const &val)

void	setParamValUnique (std::string const &paramdescriptor, T const &val)

std::vector< std::pair< std::string, T > >	getParamVal (std::string const &paramdescriptor) const

T	getParamValUnique (std::string const &paramdescriptor) const

std::vector< std::string >	setParamString (std::string const &paramdescriptor, std::string const &val)

void	setParamStringUnique (std::string const &paramdescriptor, std::string const &val)

std::vector< std::pair< std::string, std::string > >	getParamString (std::string const &paramdescriptor) const

std::string	getParamStringUnique (std::string const &paramdescriptor) const

void	freezeParam (std::string const &paramdescriptor)

void	unFreezeParam (std::string const &paramdescriptor)

void	freezeAllParams ()

void	unFreezeAllParams ()

std::string	descriptor () const

void	setParamsFromFile (std::string const &filename)

std::istream &	setParamsFromStream (std::istream &is, std::string const &absfile)

virtual void	paramInfo (std::shared_ptr< UserInterface > s, std::map< std::string, std::string > &categs, bool skipFrozen, std::string const &cname="", std::string const &pfx="")

void	foreachParam (std::function< void(std::string const &compname, ParameterBase *p)> func, std::string const &cname="")

std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ParameterCategory const &category)

std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ValidValuesSpec< T > const &validValuesSpec, ParameterCategory const &category)

void	setDynamicParameterCallback (std::string const &name, std::function< void(T const &)> cb, bool callnow=true)

void	removeDynamicParameter (std::string const &name)

void	setPath (std::string const &path)

std::filesystem::path	absolutePath (std::filesystem::path const &path="")

Public Member Functions inherited from jevois::ParameterRegistry
virtual	~ParameterRegistry ()

Protected Member Functions
void	onParamChange (fastopticalflow::opoint const &param, int const &val) override

void	onParamChange (fastopticalflow::thetasf const &param, int const &val) override

void	onParamChange (fastopticalflow::thetaps const &param, int const &val) override

void	onParamChange (fastopticalflow::thetaov const &param, float const &val) override

Protected Member Functions inherited from jevois::Component
virtual void	preInit ()

virtual void	postInit ()

virtual void	preUninit ()

virtual void	postUninit ()

virtual void	preInit ()

virtual void	postInit ()

virtual void	preUninit ()

virtual void	postUninit ()

Protected Member Functions inherited from jevois::ParameterRegistry
void	addParameter (ParameterBase *const param)

void	removeParameter (ParameterBase *const param)

void	callbackInitCall ()

Protected Attributes
jevois::Profiler	itsProfiler

std::mutex	itsMtx

bool	itsNuke

const float **	img_bo_pyr

const float **	img_bo_dx_pyr

const float **	img_bo_dy_pyr

cv::Mat *	img_bo_fmat_pyr

cv::Mat *	img_bo_dx_fmat_pyr

cv::Mat *	img_bo_dy_fmat_pyr

cv::Mat	img_bo_mat

cv::Mat	img_bo_fmat

int	itsHeight

int	itsWidth

int	itsPyrDepth

Related Functions
(Note that these are not member functions.)
	JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK (opoint, int, "Algorithm operating point", 1, jevois::Range< int >(1, 4), ParamCateg)
	Parameter. More...

	JEVOIS_DECLARE_PARAMETER (factor, float, "Factor to use when converting float velocities to byte", 25.0F, ParamCateg)
	Parameter. More...

	JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK (thetasf, int, "Finest scale in the pyramid, or -1 for auto", -1, ParamCateg)
	Parameter. More...

	JEVOIS_DECLARE_PARAMETER (thetait, int, "Number of gradient descent iterations, or -1 for auto", 5, ParamCateg)
	Parameter. More...

	JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK (thetaps, int, "Patch size in pixels, or -1 for auto", -1, ParamCateg)
	Parameter. More...

	JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK (thetaov, float, "Patch overlap on each scale, or -1 for auto", 0.1F, ParamCateg)
	Parameter. More...

	JEVOIS_DECLARE_PARAMETER (usevref, bool, "Use variational refinement when true", false, ParamCateg)
	Parameter. More...

Detailed Description

Fast optical flow computation using dense inverse search.

This algorithm computes what moved between two images (optical flow). It is based on the paper "Fast Optical Flow using Dense Inverse Search" by Till Kroeger, Radu Timofte, Dengxin Dai and Luc Van Gool, Proc ECCV, 2016. Also see here: http://www.vision.ee.ethz.ch/~kroegert/OFlow/

Definition at line 61 of file FastOpticalFlow.H.

Constructor & Destructor Documentation

◆ FastOpticalFlow()

FastOpticalFlow::FastOpticalFlow ( std::string const & instance )

Constructor.

Definition at line 29 of file FastOpticalFlow.C.

◆ ~FastOpticalFlow()

FastOpticalFlow::~FastOpticalFlow ( )

virtual

Destructor.

Definition at line 36 of file FastOpticalFlow.C.

References img_bo_dx_fmat_pyr, img_bo_dx_pyr, img_bo_dy_fmat_pyr, img_bo_dy_pyr, img_bo_fmat, img_bo_fmat_pyr, img_bo_mat, img_bo_pyr, and itsPyrDepth.

Member Function Documentation

◆ onParamChange() [1/4]

void FastOpticalFlow::onParamChange	(	fastopticalflow::opoint const &	param,
		int const &	val
	)

overrideprotected

◆ onParamChange() [2/4]

void FastOpticalFlow::onParamChange	(	fastopticalflow::thetaov const &	param,
		float const &	val
	)

overrideprotected

◆ onParamChange() [3/4]

void FastOpticalFlow::onParamChange	(	fastopticalflow::thetaps const &	param,
		int const &	val
	)

overrideprotected

◆ onParamChange() [4/4]

void FastOpticalFlow::onParamChange	(	fastopticalflow::thetasf const &	param,
		int const &	val
	)

overrideprotected

◆ process()

void FastOpticalFlow::process	(	cv::Mat const &	src,
		cv::Mat &	dst
	)

Process a greyscale image and return flow in a pre-allocated greyscale image of same with and 2x height.

The results are the concatenation of 2 images: vx on top of vy, both converted to byte.

Definition at line 154 of file FastOpticalFlow.C.

References jevois::Profiler::checkpoint(), img_bo_dx_fmat_pyr, img_bo_dx_pyr, img_bo_dy_fmat_pyr, img_bo_dy_pyr, img_bo_fmat, img_bo_fmat_pyr, img_bo_mat, img_bo_pyr, itsHeight, itsMtx, itsNuke, itsProfiler, itsPyrDepth, itsWidth, LFATAL, jevois::Profiler::start(), and jevois::Profiler::stop().

Friends And Related Function Documentation

◆ JEVOIS_DECLARE_PARAMETER() [1/3]

JEVOIS_DECLARE_PARAMETER	(	factor	,
		float	,
		"Factor to use when converting float velocities to byte"	,
		25.	0F,
		ParamCateg
	)

◆ JEVOIS_DECLARE_PARAMETER() [2/3]

JEVOIS_DECLARE_PARAMETER	(	thetait	,
		int	,
		"Number of gradient descent	iterations,
		or -1 for auto"	,
		5	,
		ParamCateg
	)

◆ JEVOIS_DECLARE_PARAMETER() [3/3]

JEVOIS_DECLARE_PARAMETER	(	usevref	,
		bool	,
		"Use variational refinement when true"	,
		false	,
		ParamCateg
	)

◆ JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK() [1/4]

JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK	(	opoint	,
		int	,
		"Algorithm operating point"	,
		1	,
		jevois::Range< int >	1, 4,
		ParamCateg
	)

◆ JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK() [2/4]

JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK	(	thetaov	,
		float	,
		"Patch overlap on each	scale,
		or -1 for auto"	,
		0.	1F,
		ParamCateg
	)

◆ JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK() [3/4]

JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK	(	thetaps	,
		int	,
		"Patch size in	pixels,
		or -1 for auto"	,
		-	1,
		ParamCateg
	)

◆ JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK() [4/4]

JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK	(	thetasf	,
		int	,
		"Finest scale in the	pyramid,
		or -1 for auto"	,
		-	1,
		ParamCateg
	)

Member Data Documentation

◆ img_bo_dx_fmat_pyr

cv::Mat* FastOpticalFlow::img_bo_dx_fmat_pyr

protected

Definition at line 94 of file FastOpticalFlow.H.

Referenced by process(), and ~FastOpticalFlow().

◆ img_bo_dx_pyr

const float** FastOpticalFlow::img_bo_dx_pyr

protected

Definition at line 90 of file FastOpticalFlow.H.

Referenced by process(), and ~FastOpticalFlow().

◆ img_bo_dy_fmat_pyr

cv::Mat* FastOpticalFlow::img_bo_dy_fmat_pyr

protected

Definition at line 95 of file FastOpticalFlow.H.

Referenced by process(), and ~FastOpticalFlow().

◆ img_bo_dy_pyr

const float** FastOpticalFlow::img_bo_dy_pyr

protected

Definition at line 91 of file FastOpticalFlow.H.

Referenced by process(), and ~FastOpticalFlow().

◆ img_bo_fmat

cv::Mat FastOpticalFlow::img_bo_fmat

protected

Definition at line 98 of file FastOpticalFlow.H.

Referenced by process(), and ~FastOpticalFlow().

◆ img_bo_fmat_pyr

cv::Mat* FastOpticalFlow::img_bo_fmat_pyr

protected

Definition at line 93 of file FastOpticalFlow.H.

Referenced by process(), and ~FastOpticalFlow().

◆ img_bo_mat

cv::Mat FastOpticalFlow::img_bo_mat

protected

Definition at line 97 of file FastOpticalFlow.H.

Referenced by process(), and ~FastOpticalFlow().

◆ img_bo_pyr

const float** FastOpticalFlow::img_bo_pyr

protected

Definition at line 89 of file FastOpticalFlow.H.

Referenced by process(), and ~FastOpticalFlow().

◆ itsHeight

int FastOpticalFlow::itsHeight

protected

Definition at line 100 of file FastOpticalFlow.H.

Referenced by process().

◆ itsMtx

std::mutex FastOpticalFlow::itsMtx

protected

Definition at line 85 of file FastOpticalFlow.H.

Referenced by process().

◆ itsNuke

bool FastOpticalFlow::itsNuke

protected

Definition at line 87 of file FastOpticalFlow.H.

Referenced by process().

◆ itsProfiler

jevois::Profiler FastOpticalFlow::itsProfiler

protected

Definition at line 84 of file FastOpticalFlow.H.

Referenced by process().

◆ itsPyrDepth

int FastOpticalFlow::itsPyrDepth

protected

Definition at line 101 of file FastOpticalFlow.H.

Referenced by process(), and ~FastOpticalFlow().

◆ itsWidth

int FastOpticalFlow::itsWidth

protected

Definition at line 100 of file FastOpticalFlow.H.

Referenced by process().

The documentation for this class was generated from the following files:

include/jevoisbase/Components/OpticalFlow/FastOpticalFlow.H
src/Components/OpticalFlow/FastOpticalFlow.C

Public Member Functions

Protected Member Functions

Protected Attributes

Related Functions

Detailed Description

Constructor & Destructor Documentation

◆ FastOpticalFlow()

◆ ~FastOpticalFlow()

Member Function Documentation

◆ onParamChange() [1/4]

◆ onParamChange() [2/4]

◆ onParamChange() [3/4]

◆ onParamChange() [4/4]

◆ process()

Friends And Related Function Documentation

◆ JEVOIS_DECLARE_PARAMETER() [1/3]

◆ JEVOIS_DECLARE_PARAMETER() [2/3]

◆ JEVOIS_DECLARE_PARAMETER() [3/3]

◆ JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK() [1/4]

◆ JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK() [2/4]

◆ JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK() [3/4]

◆ JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK() [4/4]

Member Data Documentation

◆ img_bo_dx_fmat_pyr

◆ img_bo_dx_pyr

◆ img_bo_dy_fmat_pyr

◆ img_bo_dy_pyr

◆ img_bo_fmat

◆ img_bo_fmat_pyr

◆ img_bo_mat

◆ img_bo_pyr

◆ itsHeight

◆ itsMtx

◆ itsNuke

◆ itsProfiler

◆ itsPyrDepth

◆ itsWidth
