Filter Class Reference

Base class for an image filter. More...

#include <jevoisbase/Components/Filters/Filter.H>

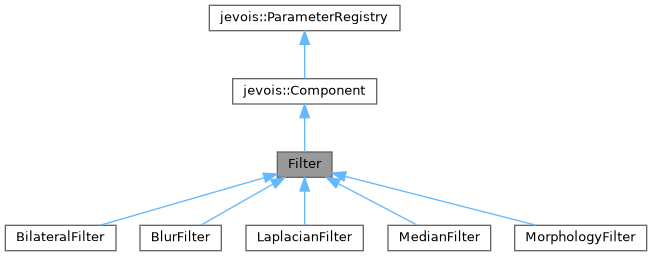

Inheritance diagram for Filter:

Collaboration diagram for Filter:

Public Member Functions
virtual	~Filter ()
	Virtual destructor for safe inheritance.
virtual std::string	process (cv::Mat const &src, cv::Mat &dst)=0
	Processing function: filters the image src and puts results into dst, returns string with parameter settings.
Public Member Functions inherited from jevois::Component
	Component (std::string const &instance)
virtual	~Component ()
std::shared_ptr< Comp >	addSubComponent (std::string const &instance, Args &&...args)
void	removeSubComponent (std::shared_ptr< Comp > &component)
void	removeSubComponent (std::string const &instance, bool warnIfNotFound=true)
std::shared_ptr< Comp >	getSubComponent (std::string const &instance) const
bool	isTopLevel () const
bool	initialized () const
std::string const &	className () const
std::string const &	instanceName () const
std::vector< std::string >	setParamVal (std::string const &paramdescriptor, T const &val)
void	setParamValUnique (std::string const &paramdescriptor, T const &val)
std::vector< std::pair< std::string, T > >	getParamVal (std::string const &paramdescriptor) const
T	getParamValUnique (std::string const &paramdescriptor) const
std::vector< std::string >	setParamString (std::string const &paramdescriptor, std::string const &val)
void	setParamStringUnique (std::string const &paramdescriptor, std::string const &val)
std::vector< std::pair< std::string, std::string > >	getParamString (std::string const &paramdescriptor) const
std::string	getParamStringUnique (std::string const &paramdescriptor) const
void	freezeParam (std::string const &paramdescriptor, bool doit)
void	freezeAllParams (bool doit)
void	hideParam (std::string const &paramdescriptor, bool doit)
void	hideAllParams (bool doit)
std::string	descriptor () const
void	setParamsFromFile (std::string const &filename)
std::istream &	setParamsFromStream (std::istream &is, std::string const &absfile)
virtual void	paramInfo (std::shared_ptr< UserInterface > s, std::map< std::string, std::string > &categs, bool skipFrozen, std::string const &cname="", std::string const &pfx="")
void	foreachParam (std::function< void(std::string const &compname, ParameterBase *p)> func, std::string const &cname="")
std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ParameterCategory const &category)
std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ValidValuesSpec< T > const &validValuesSpec, ParameterCategory const &category)
void	setDynamicParameterCallback (std::string const &name, std::function< void(T const &)> cb, bool callnow=true)
void	removeDynamicParameter (std::string const &name, bool throw_if_not_found=true)
void	setPath (std::string const &path)
std::filesystem::path	absolutePath (std::filesystem::path const &path="")
std::shared_ptr< Comp >	addSubComponent (std::string const &instance, Args &&...args)
void	removeSubComponent (std::shared_ptr< Comp > &component)
void	removeSubComponent (std::string const &instance, bool warnIfNotFound=true)
std::shared_ptr< Comp >	getSubComponent (std::string const &instance) const
bool	isTopLevel () const
bool	initialized () const
std::string const &	className () const
std::string const &	instanceName () const
std::vector< std::string >	setParamVal (std::string const &paramdescriptor, T const &val)
void	setParamValUnique (std::string const &paramdescriptor, T const &val)
std::vector< std::pair< std::string, T > >	getParamVal (std::string const &paramdescriptor) const
T	getParamValUnique (std::string const &paramdescriptor) const
std::vector< std::string >	setParamString (std::string const &paramdescriptor, std::string const &val)
void	setParamStringUnique (std::string const &paramdescriptor, std::string const &val)
std::vector< std::pair< std::string, std::string > >	getParamString (std::string const &paramdescriptor) const
std::string	getParamStringUnique (std::string const &paramdescriptor) const
void	freezeParam (std::string const &paramdescriptor, bool doit)
void	freezeAllParams (bool doit)
void	hideParam (std::string const &paramdescriptor, bool doit)
void	hideAllParams (bool doit)
std::string	descriptor () const
void	setParamsFromFile (std::string const &filename)
std::istream &	setParamsFromStream (std::istream &is, std::string const &absfile)
virtual void	paramInfo (std::shared_ptr< UserInterface > s, std::map< std::string, std::string > &categs, bool skipFrozen, std::string const &cname="", std::string const &pfx="")
void	foreachParam (std::function< void(std::string const &compname, ParameterBase *p)> func, std::string const &cname="")
std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ParameterCategory const &category)
std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ValidValuesSpec< T > const &validValuesSpec, ParameterCategory const &category)
void	setDynamicParameterCallback (std::string const &name, std::function< void(T const &)> cb, bool callnow=true)
void	removeDynamicParameter (std::string const &name, bool throw_if_not_found=true)
void	setPath (std::string const &path)
std::filesystem::path	absolutePath (std::filesystem::path const &path="")
Public Member Functions inherited from jevois::ParameterRegistry
virtual	~ParameterRegistry ()

Additional Inherited Members
Protected Member Functions inherited from jevois::Component
virtual void	preInit ()
virtual void	postInit ()
virtual void	preUninit ()
virtual void	postUninit ()
virtual void	preInit ()
virtual void	postInit ()
virtual void	preUninit ()
virtual void	postUninit ()
Protected Member Functions inherited from jevois::ParameterRegistry
void	addParameter (ParameterBase *const param)
void	removeParameter (ParameterBase *const param)
void	callbackInitCall ()

Detailed Description

Base class for an image filter.

This base class defines a single process() function that takes a cv::Mat in and outputs a cv::Mat with the results.

Definition at line 32 of file Filter.H.

Constructor & Destructor Documentation

~Filter()

Filter::~Filter ( )

virtual

Virtual destructor for safe inheritance.

Definition at line 20 of file Filter.C.

Member Function Documentation

process()

virtual std::string Filter::process ( cv::Mat const &  src, cv::Mat &  dst  )

pure virtual

Processing function: filters the image src and puts results into dst, returns string with parameter settings.

Implemented in BilateralFilter, BlurFilter, LaplacianFilter, MedianFilter, and MorphologyFilter.

---

The documentation for this class was generated from the following files:

• include/jevoisbase/Components/Filters/Filter.H
• src/Components/Filters/Filter.C
