QRcode Class Reference
JeVoisBase component algorithms

QRcode and Barcode detection using ZBar. More...

#include <jevoisbase/Components/QRcode/QRcode.H>

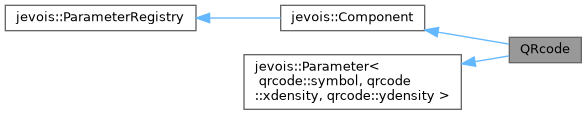

Inheritance diagram for QRcode:
Inheritance graph
[legend]

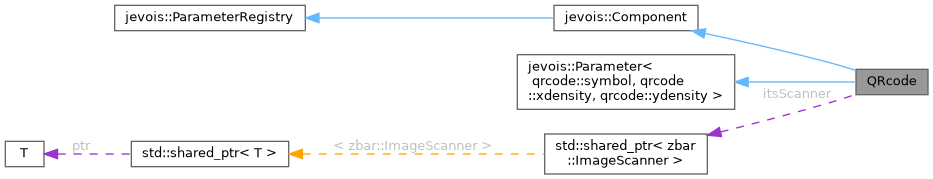

Collaboration diagram for QRcode:
Collaboration graph
[legend]

Public Member Functions

 QRcode (std::string const &instance)
 Constructor.

 ~QRcode ()
 Destructor.

void process (zbar::Image &image)
 Process a greayscale image.

void process (zbar::Image &image, std::vector< std::string > &results)
 Process a greayscale image.

void drawDetections (jevois::RawImage &outimg, int txtx, int txty, zbar::Image &zgray, int w, int h, size_t nshow)
 Draw any markers previously detected by process()

void drawDetections (jevois::GUIhelper &helper, zbar::Image &zgray, int w, int h)
 Draw any markers previously detected by process()

void sendSerial (jevois::StdModule *mod, zbar::Image &img, unsigned int camw, unsigned int camh)
 Send serial messages about our detections.

- Public Member Functions inherited from jevois::Component
 Component (std::string const &instance)

virtual ~Component ()

std::shared_ptr< Comp > addSubComponent (std::string const &instance, Args &&...args)

void removeSubComponent (std::shared_ptr< Comp > &component)

void removeSubComponent (std::string const &instance, bool warnIfNotFound=true)

std::shared_ptr< Comp > getSubComponent (std::string const &instance) const

bool isTopLevel () const

bool initialized () const

std::string const & className () const

std::string const & instanceName () const

std::vector< std::string > setParamVal (std::string const &paramdescriptor, T const &val)

void setParamValUnique (std::string const &paramdescriptor, T const &val)

std::vector< std::pair< std::string, T > > getParamVal (std::string const &paramdescriptor) const

T getParamValUnique (std::string const &paramdescriptor) const

std::vector< std::string > setParamString (std::string const &paramdescriptor, std::string const &val)

void setParamStringUnique (std::string const &paramdescriptor, std::string const &val)

std::vector< std::pair< std::string, std::string > > getParamString (std::string const &paramdescriptor) const

std::string getParamStringUnique (std::string const &paramdescriptor) const

void freezeParam (std::string const &paramdescriptor, bool doit)

void freezeAllParams (bool doit)

std::string descriptor () const

void setParamsFromFile (std::string const &filename)

std::istream & setParamsFromStream (std::istream &is, std::string const &absfile)

virtual void paramInfo (std::shared_ptr< UserInterface > s, std::map< std::string, std::string > &categs, bool skipFrozen, std::string const &cname="", std::string const &pfx="")

void foreachParam (std::function< void(std::string const &compname, ParameterBase *p)> func, std::string const &cname="")

std::shared_ptr< DynamicParameter< T > > addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ParameterCategory const &category)

std::shared_ptr< DynamicParameter< T > > addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ValidValuesSpec< T > const &validValuesSpec, ParameterCategory const &category)

void setDynamicParameterCallback (std::string const &name, std::function< void(T const &)> cb, bool callnow=true)

void removeDynamicParameter (std::string const &name, bool throw_if_not_found=true)

void setPath (std::string const &path)

std::filesystem::path absolutePath (std::filesystem::path const &path="")

std::shared_ptr< Comp > addSubComponent (std::string const &instance, Args &&...args)

void removeSubComponent (std::shared_ptr< Comp > &component)

void removeSubComponent (std::string const &instance, bool warnIfNotFound=true)

std::shared_ptr< Comp > getSubComponent (std::string const &instance) const

bool isTopLevel () const

bool initialized () const

std::string const & className () const

std::string const & instanceName () const

std::vector< std::string > setParamVal (std::string const &paramdescriptor, T const &val)

void setParamValUnique (std::string const &paramdescriptor, T const &val)

std::vector< std::pair< std::string, T > > getParamVal (std::string const &paramdescriptor) const

T getParamValUnique (std::string const &paramdescriptor) const

std::vector< std::string > setParamString (std::string const &paramdescriptor, std::string const &val)

void setParamStringUnique (std::string const &paramdescriptor, std::string const &val)

std::vector< std::pair< std::string, std::string > > getParamString (std::string const &paramdescriptor) const

std::string getParamStringUnique (std::string const &paramdescriptor) const

void freezeParam (std::string const &paramdescriptor, bool doit)

void freezeAllParams (bool doit)

std::string descriptor () const

void setParamsFromFile (std::string const &filename)

std::istream & setParamsFromStream (std::istream &is, std::string const &absfile)

virtual void paramInfo (std::shared_ptr< UserInterface > s, std::map< std::string, std::string > &categs, bool skipFrozen, std::string const &cname="", std::string const &pfx="")

void foreachParam (std::function< void(std::string const &compname, ParameterBase *p)> func, std::string const &cname="")

std::shared_ptr< DynamicParameter< T > > addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ParameterCategory const &category)

std::shared_ptr< DynamicParameter< T > > addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ValidValuesSpec< T > const &validValuesSpec, ParameterCategory const &category)

void setDynamicParameterCallback (std::string const &name, std::function< void(T const &)> cb, bool callnow=true)

void removeDynamicParameter (std::string const &name, bool throw_if_not_found=true)

void setPath (std::string const &path)

std::filesystem::path absolutePath (std::filesystem::path const &path="")

- Public Member Functions inherited from jevois::ParameterRegistry
virtual ~ParameterRegistry ()


Protected Member Functions

void onParamChange (qrcode::symbol const &param, std::string const &newval) override
 Parse symbol config strings when they change.

- Protected Member Functions inherited from jevois::Component
virtual void preInit ()

virtual void postInit ()

virtual void preUninit ()

virtual void postUninit ()

virtual void preInit ()

virtual void postInit ()

virtual void preUninit ()

virtual void postUninit ()

- Protected Member Functions inherited from jevois::ParameterRegistry
void addParameter (ParameterBase *const param)

void removeParameter (ParameterBase *const param)

void callbackInitCall ()


Protected Attributes

std::shared_ptr< zbar::ImageScanner > itsScanner


Related Symbols

(Note that these are not member symbols.)

 JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK (symbol, std::string, "Type(s) of QR code / barcode symbols searched for, " "multiple entries are possible and should be separated by / characters. " "Selecting many symbol types or ALL will slow down processing. Supported " "symbols are: QRCODE, EAN2, EAN5, EAN8, EAN13, UPCE, UPCA, ISBN10, ISBN13, " "COMPOSITE, I25, DATABAR, DATABAREXP, CODABAR, CODE39, PDF417, CODE93, " "and CODE128", "ALL", ParamCateg)
 Parameter.

 JEVOIS_DECLARE_PARAMETER (xdensity, int, "Scanner vertical scan density (pixel stride), or 0 to disable", 1, ParamCateg)
 Parameter.

 JEVOIS_DECLARE_PARAMETER (ydensity, int, "Scanner horizontal scan density (pixel stride), or 0 to disable", 1, ParamCateg)
 Parameter.


Detailed Description

QRcode and Barcode detection using ZBar.

This is drectly modeled after the scan_image.cpp ZBar example code.

Definition at line 50 of file QRcode.H.

Constructor & Destructor Documentation

◆ QRcode()

QRcode::QRcode ( std::string const &  instance)

Constructor.

Definition at line 24 of file QRcode.C.

References itsScanner.

◆ ~QRcode()

QRcode::~QRcode ( )

Destructor.

Definition at line 31 of file QRcode.C.

Member Function Documentation

◆ drawDetections() [1/2]

void QRcode::drawDetections ( jevois::GUIhelper &  helper,
zbar::Image &  zgray,
int  w,
int  h
)

Draw any markers previously detected by process()

Definition at line 211 of file QRcode.C.

References jevois::GUIhelper::drawPoly(), jevois::GUIhelper::drawRect(), h, and jevois::GUIhelper::itext().

Referenced by FirstPython.FirstPython::process(), and PythonObject6D.PythonObject6D::process().

◆ drawDetections() [2/2]

void QRcode::drawDetections ( jevois::RawImage &  outimg,
int  txtx,
int  txty,
zbar::Image &  zgray,
int  w,
int  h,
size_t  nshow
)

Draw any markers previously detected by process()

If txtx,txty are positive, also print a text string there

Definition at line 148 of file QRcode.C.

References jevois::yuyv::DarkPink, jevois::rawimage::drawLine(), jevois::rawimage::drawRect(), h, jevois::yuyv::White, and jevois::rawimage::writeText().

Referenced by FirstPython.FirstPython::process(), and PythonObject6D.PythonObject6D::process().

◆ onParamChange()

void QRcode::onParamChange ( qrcode::symbol const &  param,
std::string const &  newval
)
overrideprotected

Parse symbol config strings when they change.

Definition at line 35 of file QRcode.C.

References itsScanner, JEVOIS_UNUSED_PARAM, LFATAL, and jevois::split().

◆ process() [1/2]

void QRcode::process ( zbar::Image &  image)

Process a greayscale image.

Results will be stored in the image

Definition at line 94 of file QRcode.C.

References itsScanner, and LERROR.

◆ process() [2/2]

void QRcode::process ( zbar::Image &  image,
std::vector< std::string > &  results
)

Process a greayscale image.

Results will be stored in the provided vector

Definition at line 106 of file QRcode.C.

References itsScanner, and LERROR.

◆ sendSerial()

void QRcode::sendSerial ( jevois::StdModule *  mod,
zbar::Image &  img,
unsigned int  camw,
unsigned int  camh
)

Send serial messages about our detections.

Definition at line 126 of file QRcode.C.

References jevois::StdModule::sendSerialContour2D().

Friends And Related Symbol Documentation

◆ JEVOIS_DECLARE_PARAMETER() [1/2]

JEVOIS_DECLARE_PARAMETER ( xdensity  ,
int  ,
"Scanner vertical scan density   pixel stride,
or 0 to disable"  ,
1  ,
ParamCateg
)
related

Parameter.

◆ JEVOIS_DECLARE_PARAMETER() [2/2]

JEVOIS_DECLARE_PARAMETER ( ydensity  ,
int  ,
"Scanner horizontal scan density   pixel stride,
or 0 to disable"  ,
1  ,
ParamCateg
)
related

Parameter.

◆ JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK()

JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK ( symbol  ,
std::string  ,
"Type(s) of QR code / barcode symbols searched  for,
" "multiple entries are possible and should be separated by/characters. " "Selecting many symbol types or ALL will slow down processing. Supported " "symbols are:QRCODE  ,
EAN2  ,
EAN5  ,
EAN8  ,
EAN13  ,
UPCE  ,
UPCA  ,
ISBN10  ,
ISBN13  ,
" "  COMPOSITE,
I25  ,
DATABAR  ,
DATABAREXP  ,
CODABAR  ,
CODE39  ,
PDF417  ,
CODE93  ,
" "and CODE128"  ,
"ALL"  ,
ParamCateg
)
related

Parameter.

Member Data Documentation

◆ itsScanner

std::shared_ptr<zbar::ImageScanner> QRcode::itsScanner
protected

Definition at line 84 of file QRcode.H.

Referenced by onParamChange(), process(), process(), and QRcode().
