SuperPixel Class Reference
JeVoisBase component algorithms

Superpixel image segmentation from OpenCV. More...

#include <jevoisbase/Components/ImageProc/SuperPixel.H>

Inheritance diagram for SuperPixel:
Inheritance graph
[legend]

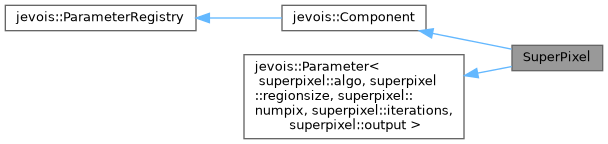

Collaboration diagram for SuperPixel:
Collaboration graph
[legend]

Public Member Functions

virtual ~SuperPixel ()
 Virtual destructor for safe inheritance.

void process (cv::Mat const &inimg, cv::Mat &outimg)
 Process an RGB image and get some greyscale results.

- Public Member Functions inherited from jevois::Component
 Component (std::string const &instance)

virtual ~Component ()

std::shared_ptr< Comp > addSubComponent (std::string const &instance, Args &&...args)

void removeSubComponent (std::shared_ptr< Comp > &component)

void removeSubComponent (std::string const &instance, bool warnIfNotFound=true)

std::shared_ptr< Comp > getSubComponent (std::string const &instance) const

bool isTopLevel () const

bool initialized () const

std::string const & className () const

std::string const & instanceName () const

std::vector< std::string > setParamVal (std::string const &paramdescriptor, T const &val)

void setParamValUnique (std::string const &paramdescriptor, T const &val)

std::vector< std::pair< std::string, T > > getParamVal (std::string const &paramdescriptor) const

T getParamValUnique (std::string const &paramdescriptor) const

std::vector< std::string > setParamString (std::string const &paramdescriptor, std::string const &val)

void setParamStringUnique (std::string const &paramdescriptor, std::string const &val)

std::vector< std::pair< std::string, std::string > > getParamString (std::string const &paramdescriptor) const

std::string getParamStringUnique (std::string const &paramdescriptor) const

void freezeParam (std::string const &paramdescriptor, bool doit)

void freezeAllParams (bool doit)

std::string descriptor () const

void setParamsFromFile (std::string const &filename)

std::istream & setParamsFromStream (std::istream &is, std::string const &absfile)

virtual void paramInfo (std::shared_ptr< UserInterface > s, std::map< std::string, std::string > &categs, bool skipFrozen, std::string const &cname="", std::string const &pfx="")

void foreachParam (std::function< void(std::string const &compname, ParameterBase *p)> func, std::string const &cname="")

std::shared_ptr< DynamicParameter< T > > addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ParameterCategory const &category)

std::shared_ptr< DynamicParameter< T > > addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ValidValuesSpec< T > const &validValuesSpec, ParameterCategory const &category)

void setDynamicParameterCallback (std::string const &name, std::function< void(T const &)> cb, bool callnow=true)

void removeDynamicParameter (std::string const &name, bool throw_if_not_found=true)

void setPath (std::string const &path)

std::filesystem::path absolutePath (std::filesystem::path const &path="")

std::shared_ptr< Comp > addSubComponent (std::string const &instance, Args &&...args)

void removeSubComponent (std::shared_ptr< Comp > &component)

void removeSubComponent (std::string const &instance, bool warnIfNotFound=true)

std::shared_ptr< Comp > getSubComponent (std::string const &instance) const

bool isTopLevel () const

bool initialized () const

std::string const & className () const

std::string const & instanceName () const

std::vector< std::string > setParamVal (std::string const &paramdescriptor, T const &val)

void setParamValUnique (std::string const &paramdescriptor, T const &val)

std::vector< std::pair< std::string, T > > getParamVal (std::string const &paramdescriptor) const

T getParamValUnique (std::string const &paramdescriptor) const

std::vector< std::string > setParamString (std::string const &paramdescriptor, std::string const &val)

void setParamStringUnique (std::string const &paramdescriptor, std::string const &val)

std::vector< std::pair< std::string, std::string > > getParamString (std::string const &paramdescriptor) const

std::string getParamStringUnique (std::string const &paramdescriptor) const

void freezeParam (std::string const &paramdescriptor, bool doit)

void freezeAllParams (bool doit)

std::string descriptor () const

void setParamsFromFile (std::string const &filename)

std::istream & setParamsFromStream (std::istream &is, std::string const &absfile)

virtual void paramInfo (std::shared_ptr< UserInterface > s, std::map< std::string, std::string > &categs, bool skipFrozen, std::string const &cname="", std::string const &pfx="")

void foreachParam (std::function< void(std::string const &compname, ParameterBase *p)> func, std::string const &cname="")

std::shared_ptr< DynamicParameter< T > > addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ParameterCategory const &category)

std::shared_ptr< DynamicParameter< T > > addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ValidValuesSpec< T > const &validValuesSpec, ParameterCategory const &category)

void setDynamicParameterCallback (std::string const &name, std::function< void(T const &)> cb, bool callnow=true)

void removeDynamicParameter (std::string const &name, bool throw_if_not_found=true)

void setPath (std::string const &path)

std::filesystem::path absolutePath (std::filesystem::path const &path="")

- Public Member Functions inherited from jevois::ParameterRegistry
virtual ~ParameterRegistry ()


Related Symbols

(Note that these are not member symbols.)

 JEVOIS_DEFINE_ENUM_CLASS (Algo,(SLIC)(SLICO)(SEEDS))
 Enum for parameter.

 JEVOIS_DECLARE_PARAMETER (algo, Algo, "Algorithm variant to use", Algo::SLICO, Algo_Values, ParamCateg)
 Parameter.

 JEVOIS_DECLARE_PARAMETER (regionsize, int, "SLIC Region size", 30, ParamCateg)
 Parameter.

 JEVOIS_DECLARE_PARAMETER (numpix, int, "Number of SEEDS superpixels", 200, ParamCateg)
 Parameter.

 JEVOIS_DECLARE_PARAMETER (iterations, int, "Number of iterations", 6, jevois::Range< int >(1, 100), ParamCateg)
 Parameter.

 JEVOIS_DEFINE_ENUM_CLASS (OutType,(Labels)(Contours))
 Enum for parameter.

 JEVOIS_DECLARE_PARAMETER (output, OutType, "Output labels or demo grayscale input image with superimposed contours", OutType::Contours, OutType_Values, ParamCateg)
 Parameter.


Additional Inherited Members

- Protected Member Functions inherited from jevois::Component
virtual void preInit ()

virtual void postInit ()

virtual void preUninit ()

virtual void postUninit ()

virtual void preInit ()

virtual void postInit ()

virtual void preUninit ()

virtual void postUninit ()

- Protected Member Functions inherited from jevois::ParameterRegistry
void addParameter (ParameterBase *const param)

void removeParameter (ParameterBase *const param)

void callbackInitCall ()


Detailed Description

Superpixel image segmentation from OpenCV.

See tutorial at http://docs.opencv.org/3.2.0/df/d6c/group__ximgproc__superpixel.html and http://docs.opencv.org/3.0-beta/modules/ximgproc/doc/superpixels.html

Definition at line 56 of file SuperPixel.H.

Constructor & Destructor Documentation

◆ ~SuperPixel()

virtual SuperPixel::~SuperPixel ( )
inlinevirtual

Virtual destructor for safe inheritance.

Definition at line 65 of file SuperPixel.H.

Member Function Documentation

◆ process()

void SuperPixel::process ( cv::Mat const &  inimg,
cv::Mat &  outimg
)

Process an RGB image and get some greyscale results.

outimg should be allocated with same size as the input and CV_8UC1 pixels.

Definition at line 23 of file SuperPixel.C.

References LERROR, and LFATAL.

Friends And Related Symbol Documentation

◆ JEVOIS_DECLARE_PARAMETER() [1/5]

JEVOIS_DECLARE_PARAMETER ( algo  ,
Algo  ,
"Algorithm variant to use"  ,
Algo::SLICO  ,
Algo_Values  ,
ParamCateg
)
related

Parameter.

◆ JEVOIS_DECLARE_PARAMETER() [2/5]

JEVOIS_DECLARE_PARAMETER ( iterations  ,
int  ,
"Number of iterations"  ,
6  ,
jevois::Range< int >  1, 100,
ParamCateg
)
related

Parameter.

◆ JEVOIS_DECLARE_PARAMETER() [3/5]

JEVOIS_DECLARE_PARAMETER ( numpix  ,
int  ,
"Number of SEEDS superpixels"  ,
200  ,
ParamCateg
)
related

Parameter.

◆ JEVOIS_DECLARE_PARAMETER() [4/5]

JEVOIS_DECLARE_PARAMETER ( output  ,
OutType  ,
"Output labels or demo grayscale input image with superimposed contours"  ,
OutType::Contours  ,
OutType_Values  ,
ParamCateg
)
related

Parameter.

◆ JEVOIS_DECLARE_PARAMETER() [5/5]

JEVOIS_DECLARE_PARAMETER ( regionsize  ,
int  ,
"SLIC Region size"  ,
30  ,
ParamCateg
)
related

Parameter.

◆ JEVOIS_DEFINE_ENUM_CLASS() [1/2]

JEVOIS_DEFINE_ENUM_CLASS ( Algo  ,
(SLIC)(SLICO)(SEEDS)
)
related

Enum for parameter.

◆ JEVOIS_DEFINE_ENUM_CLASS() [2/2]

JEVOIS_DEFINE_ENUM_CLASS ( OutType  ,
(Labels)(Contours)
)
related

Enum for parameter.

The documentation for this class was generated from the following files:
