Demo Eye Tracker
Pupil detection and eye-tracker using the openEyes toolkit.
By Laurent Ittiitti@usc.eduhttp://jevois.orgGPL v3
 Language:   C++            Supports mappings with USB output:   Yes            Supports mappings with NO USB output:   No
 Video Mapping:   GREY 640 480 30.0 YUYV 640 480 30.0 JeVois DemoEyeTracker
 Video Mapping:   GREY 320 240 60.0 YUYV 320 240 60.0 JeVois DemoEyeTracker
 Video Mapping:   GREY 176 144 120.0 YUYV 176 144 120.0 JeVois DemoEyeTracker

Module Documentation

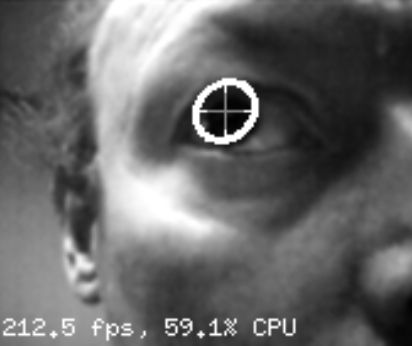

This module implements an eye tracker, which is based on detecting the outline of the pupil.

Note that the camera has to be very close to the eye for this to work well. To be useful in practice, some sort of prism or tele-lens should be used so that the camera can be out of the field of view of the human participant.

This module can easily run at 120 frames/s.

The original eye tracking software used here can be found at http://thirtysixthspan.com/openEyes/software.html

This module only performs the required image processing. To build a complete eye tracking system, additional software is required (which can be provided by several open-source eye-tracking toolkits):

  • Establish a calibration procedure, whereby the participant will be asked to look at small dots at known locations on the computer screen. This will allow a comparison between coordinates of the pupil center as reported by JeVois and coordinates on the computer screen.
  • Compute the calibration transform (mapping from pupil coordinates reported by JeVois to screen coordinates) based on the data obtained by the calibration procedure. This has to be done once for each participant and eye-tracking session, or every time a participant moves her/his head by a large amount.
  • On new eye-tracking sessions, convert pupil coordinates reported by JeVois to screen coordinates.
  • If desired, extract events in the raw calibrated data stream, such as fixations, rapid saccadic eye movements, smooth pursuit movements, and blinks.
ParameterTypeDescriptionDefaultValid Values
(EyeTracker) edgethreshunsigned charPupil edge threshold20-
(EyeTracker) numraysintNumber of rays18jevois::Range<int>(4, 180)
(EyeTracker) mincandintMinimum number of feature candidates10jevois::Range<int>(1, 50)
(EyeTracker) cornealintCorneal window size51-
Detailed docs:DemoEyeTracker
Copyright:Copyright (C) 2016 by Laurent Itti, iLab and the University of Southern California
License:GPL v3
Distribution:Unrestricted
Restrictions:None
