JeVois Intro
Simple introduction to JeVois and demo that combines saliency, gist, face detection, and object recognition.
By Laurent Ittiitti@usc.eduhttp://jevois.orgGPL v3
 Language:   C++            Supports mappings with USB output:   Yes            Supports mappings with NO USB output:   No
 Video Mapping:   YUYV 640 360 50.0 YUYV 320 240 50.0 JeVois JeVoisIntro
 Video Mapping:   YUYV 640 480 50.0 YUYV 320 240 50.0 JeVois JeVoisIntro

Module Documentation

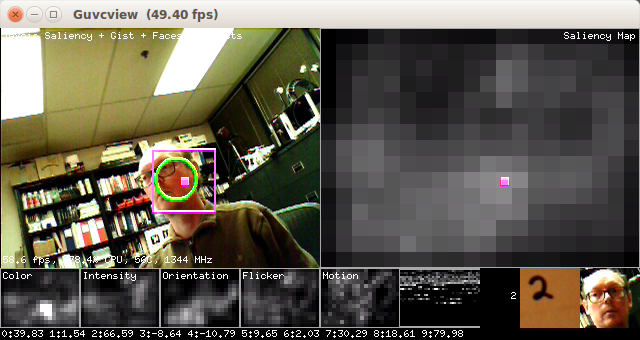

This module plays an introduction movie, and then launches the equivalent of the DemoSalGistFaceObj module, but with some added text messages that explain what is going on, on the screen.

Try it and follow the instructions on screen!

ParameterTypeDescriptionDefaultValid Values
(Kalman2D) usevelboolUse velocity tracking, in addition to positionfalse-
(Kalman2D) procnoisefloatProcess noise standard deviation0.003F-
(Kalman2D) measnoisefloatMeasurement noise standard deviation0.05F-
(Kalman2D) postnoisefloatA posteriori error estimate standard deviation0.3F-
(Saliency) cweightbyteColor channel weight255-
(Saliency) iweightbyteIntensity channel weight255-
(Saliency) oweightbyteOrientation channel weight255-
(Saliency) fweightbyteFlicker channel weight255-
(Saliency) mweightbyteMotion channel weight255-
(Saliency) centerminsize_tLowest (finest) of the 3 center scales2-
(Saliency) deltaminsize_tLowest (finest) of the 2 center-surround delta scales3-
(Saliency) smscalesize_tScale of the saliency map4-
(Saliency) mthreshbyteMotion threshold0-
(Saliency) fthreshbyteFlicker threshold0-
(Saliency) msflickboolUse multiscale flicker computationfalse-
(BufferedVideoReader) filenamestd::stringFilename of video to read (if not absolute, will be assumed to be relative to Component path)movie.mpg-
(FaceDetector) face_cascadestd::stringFile name of the face cascadeJEVOIS_SHARE_PATH /facedetector/haarcascade_frontalface_alt.xml-
(FaceDetector) eye_cascadestd::stringFile name of the eye cascade, or empty to not detect eyesJEVOIS_SHARE_PATH /facedetector/haarcascade_eye_tree_eyeglasses.xml-
Detailed docs:JeVoisIntro
Copyright:Copyright (C) 2016 by Laurent Itti, iLab and the University of Southern California
License:GPL v3
Distribution:Unrestricted
Restrictions:None
Support URL:http://jevois.org/doc
Other URL:http://iLab.usc.edu
Address:University of Southern California, HNB-07A, 3641 Watt Way, Los Angeles, CA 90089-2520, USA
