Identify objects using Darknet deep neural network. More...

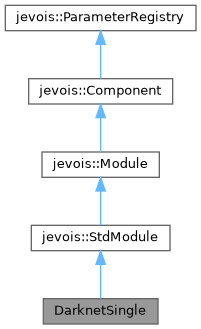

Inheritance diagram for DarknetSingle:

[legend]

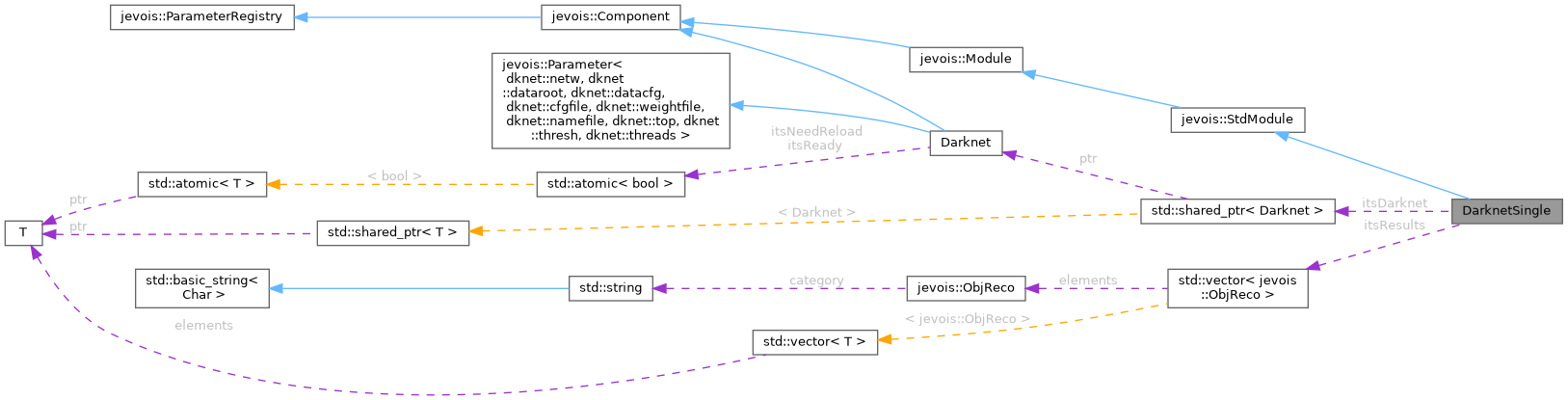

Collaboration diagram for DarknetSingle:

[legend]

Public Member Functions
	DarknetSingle (std::string const &instance)
	Constructor.

virtual	~DarknetSingle ()
	Virtual destructor for safe inheritance.

virtual void	postUninit () override
	Un-initialization.

virtual void	process (jevois::InputFrame &&inframe) override
	Processing function, no video output.

virtual void	process (jevois::InputFrame &&inframe, jevois::OutputFrame &&outframe) override
	Processing function with video output to USB.

Public Member Functions inherited from jevois::StdModule
	StdModule (std::string const &instance)

virtual	~StdModule ()

void	sendSerialImg1Dx (unsigned int camw, float x, float size=0.0F, std::string const &id="", std::string const &extra="")

void	sendSerialStd1Dx (float x, float size=0.0F, std::string const &id="", std::string const &extra="")

void	sendSerialImg1Dy (unsigned int camh, float y, float size=0.0F, std::string const &id="", std::string const &extra="")

void	sendSerialStd1Dy (float y, float size=0.0F, std::string const &id="", std::string const &extra="")

void	sendSerialImg2D (unsigned int camw, unsigned int camh, float x, float y, float w=0.0F, float h=0.0F, std::string const &id="", std::string const &extra="")

void	sendSerialStd2D (float x, float y, float w=0.0F, float h=0.0F, std::string const &id="", std::string const &extra="")

void	sendSerialContour2D (unsigned int camw, unsigned int camh, std::vector< cv::Point_< T > > points, std::string const &id="", std::string const &extra="")

void	sendSerialStd3D (float x, float y, float z, float w=0.0F, float h=0.0F, float d=0.0F, float q1=0.0F, float q2=0.0F, float q3=0.0f, float q4=0.0F, std::string const &id="", std::string const &extra="")

void	sendSerialStd3D (std::vector< cv::Point3f > points, std::string const &id="", std::string const &extra="")

void	sendSerialObjReco (std::vector< ObjReco > const &res)

void	sendSerialObjDetImg2D (unsigned int camw, unsigned int camh, float x, float y, float w, float h, std::vector< ObjReco > const &res)

void	sendSerialObjDetImg2D (unsigned int camw, unsigned int camh, ObjDetect const &det)

void	sendSerialObjDetImg2D (unsigned int camw, unsigned int camh, ObjDetectOBB const &det)

	JEVOIS_DEFINE_ENUM_CLASS (SerStyle,(Terse)(Normal)(Detail)(Fine))

	JEVOIS_DECLARE_PARAMETER (serstyle, SerStyle, "Style for standardized serial messages as defined in " "http://jevois.org/doc/UserSerialStyle.html", SerStyle::Terse, SerStyle_Values, ParamCateg)

	JEVOIS_DECLARE_PARAMETER (serprec, unsigned int, "Number of decimal points in standardized serial messages as " "defined in http://jevois.org/doc/UserSerialStyle.html", 0U, jevois::Range< unsigned int >(0U, 10U), ParamCateg)

	JEVOIS_DEFINE_ENUM_CLASS (SerStamp,(None)(Frame)(Time)(FrameTime)(FrameDateTime))

	JEVOIS_DECLARE_PARAMETER (serstamp, SerStamp, "Prepend standardized serial messages with a frame number, " "time, frame+time, or frame+date+time. See details in " "http://jevois.org/doc/UserSerialStyle.html", SerStamp::None, SerStamp_Values, ParamCateg)

	JEVOIS_DEFINE_ENUM_CLASS (SerMark,(None)(Start)(Stop)(Both))

	JEVOIS_DECLARE_PARAMETER (sermark, SerMark, "Send serial message to mark the beginning (MARK START) of the " "processing of a video frame from the camera sensor, the end (MARK STOP), or both. " "Useful, among others, if one needs to know when no results were sent over serial " "on a given frame. Combine with parameter serstamp if you need to know the frame number.", SerMark::None, SerMark_Values, ParamCateg)

Public Member Functions inherited from jevois::Module
	Module (std::string const &instance)

virtual	~Module ()

virtual void	process (InputFrame &&inframe, GUIhelper &helper)

virtual void	sendSerial (std::string const &str)

virtual void	parseSerial (std::string const &str, std::shared_ptr< UserInterface > s)

virtual void	supportedCommands (std::ostream &os)

Public Member Functions inherited from jevois::Component
	Component (std::string const &instance)

virtual	~Component ()

std::shared_ptr< Comp >	addSubComponent (std::string const &instance, Args &&...args)

void	removeSubComponent (std::shared_ptr< Comp > &component)

void	removeSubComponent (std::string const &instance, bool warnIfNotFound=true)

std::shared_ptr< Comp >	getSubComponent (std::string const &instance) const

bool	isTopLevel () const

bool	initialized () const

std::string const &	className () const

std::string const &	instanceName () const

std::vector< std::string >	setParamVal (std::string const &paramdescriptor, T const &val)

void	setParamValUnique (std::string const &paramdescriptor, T const &val)

std::vector< std::pair< std::string, T > >	getParamVal (std::string const &paramdescriptor) const

T	getParamValUnique (std::string const &paramdescriptor) const

std::vector< std::string >	setParamString (std::string const &paramdescriptor, std::string const &val)

void	setParamStringUnique (std::string const &paramdescriptor, std::string const &val)

std::vector< std::pair< std::string, std::string > >	getParamString (std::string const &paramdescriptor) const

std::string	getParamStringUnique (std::string const &paramdescriptor) const

void	freezeParam (std::string const &paramdescriptor, bool doit)

void	freezeAllParams (bool doit)

std::string	descriptor () const

void	setParamsFromFile (std::string const &filename)

std::istream &	setParamsFromStream (std::istream &is, std::string const &absfile)

virtual void	paramInfo (std::shared_ptr< UserInterface > s, std::map< std::string, std::string > &categs, bool skipFrozen, std::string const &cname="", std::string const &pfx="")

void	foreachParam (std::function< void(std::string const &compname, ParameterBase *p)> func, std::string const &cname="")

std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ParameterCategory const &category)

std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ValidValuesSpec< T > const &validValuesSpec, ParameterCategory const &category)

void	setDynamicParameterCallback (std::string const &name, std::function< void(T const &)> cb, bool callnow=true)

void	removeDynamicParameter (std::string const &name, bool throw_if_not_found=true)

void	setPath (std::string const &path)

std::filesystem::path	absolutePath (std::filesystem::path const &path="")

std::shared_ptr< Comp >	addSubComponent (std::string const &instance, Args &&...args)

void	removeSubComponent (std::shared_ptr< Comp > &component)

void	removeSubComponent (std::string const &instance, bool warnIfNotFound=true)

std::shared_ptr< Comp >	getSubComponent (std::string const &instance) const

bool	isTopLevel () const

bool	initialized () const

std::string const &	className () const

std::string const &	instanceName () const

std::vector< std::string >	setParamVal (std::string const &paramdescriptor, T const &val)

void	setParamValUnique (std::string const &paramdescriptor, T const &val)

std::vector< std::pair< std::string, T > >	getParamVal (std::string const &paramdescriptor) const

T	getParamValUnique (std::string const &paramdescriptor) const

std::vector< std::string >	setParamString (std::string const &paramdescriptor, std::string const &val)

void	setParamStringUnique (std::string const &paramdescriptor, std::string const &val)

std::vector< std::pair< std::string, std::string > >	getParamString (std::string const &paramdescriptor) const

std::string	getParamStringUnique (std::string const &paramdescriptor) const

void	freezeParam (std::string const &paramdescriptor, bool doit)

void	freezeAllParams (bool doit)

std::string	descriptor () const

void	setParamsFromFile (std::string const &filename)

std::istream &	setParamsFromStream (std::istream &is, std::string const &absfile)

virtual void	paramInfo (std::shared_ptr< UserInterface > s, std::map< std::string, std::string > &categs, bool skipFrozen, std::string const &cname="", std::string const &pfx="")

void	foreachParam (std::function< void(std::string const &compname, ParameterBase *p)> func, std::string const &cname="")

std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ParameterCategory const &category)

std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ValidValuesSpec< T > const &validValuesSpec, ParameterCategory const &category)

void	setDynamicParameterCallback (std::string const &name, std::function< void(T const &)> cb, bool callnow=true)

void	removeDynamicParameter (std::string const &name, bool throw_if_not_found=true)

void	setPath (std::string const &path)

std::filesystem::path	absolutePath (std::filesystem::path const &path="")

Public Member Functions inherited from jevois::ParameterRegistry
virtual	~ParameterRegistry ()

Protected Attributes
std::shared_ptr< Darknet >	itsDarknet

std::vector< jevois::ObjReco >	itsResults

std::future< float >	itsPredictFut

cv::Mat	itsRawInputCv

cv::Mat	itsCvImg

cv::Mat	itsRawPrevOutputCv

Additional Inherited Members
Protected Member Functions inherited from jevois::StdModule
void	sendSerialMarkStart ()

void	sendSerialMarkStop ()

std::string	getStamp () const

Protected Member Functions inherited from jevois::Component
virtual void	preInit ()

virtual void	postInit ()

virtual void	preUninit ()

virtual void	preInit ()

virtual void	postInit ()

virtual void	preUninit ()

Protected Member Functions inherited from jevois::ParameterRegistry
void	addParameter (ParameterBase *const param)

void	removeParameter (ParameterBase *const param)

void	callbackInitCall ()

Detailed Description

Identify objects using Darknet deep neural network.

Darknet is a popular neural network framework. This module identifies the object in a square region in the center of the camera field of view using a deep convolutional neural network.

The deep network analyzes the image by filtering it using many different filter kernels, and several stacked passes (network layers). This essentially amounts to detecting the presence of both simple and complex parts of known objects in the image (e.g., from detecting edges in lower layers of the network to detecting car wheels or even whole cars in higher layers). The last layer of the network is reduced to a vector with one entry per known kind of object (object class). This module returns the class names of the top scoring candidates in the output vector, if any have scored above a minimum confidence threshold. When nothing is recognized with sufficiently high confidence, there is no output.

Darknet is a great alternative to popular neural network frameworks like Caffe, TensorFlow, MxNet, pyTorch, Theano, etc as it features: 1) small footprint which is great for small embedded systems; 2) hardware acceleration using ARM NEON instructions; 3) support for large GPUs when compiled on expensive servers, which is useful to train the neural networks on big servers, then copying the trained weights directly to JeVois for use with live video.

See https://pjreddie.com/darknet for more details about darknet.

This module runs a Darknet network and shows the top-scoring results. The network is currently a bit slow, hence it is only run once in a while. Point your camera towards some interesting object, make the object fit in the picture shown at right (which will be fed to the neural network), keep it stable, and wait for Darknet to tell you what it found. The framerate figures shown at the bottom left of the display reflect the speed at which each new video frame from the camera is processed, but in this module this just amounts to converting the image to RGB, sending it to the neural network for processing in a separate thread, and creating the demo display. Actual network inference speed (time taken to compute the predictions on one image) is shown at the bottom right. See below for how to trade-off speed and accuracy.

Note that by default this module runs the Imagenet1k tiny Darknet (it can also run the slightly slower but a bit more accurate Darknet Reference network; see parameters). There are 1000 different kinds of objects (object classes) that these networks can recognize (too long to list here). The input layer of these two networks is 224x224 pixels by default. This modules takes a crop at the center of the video image, with size determined by the network input size. With the default network parameters, this module hence requires at least 320x240 camera sensor resolution. The networks provided on the JeVois microSD image have been trained on large clusters of GPUs, typically using 1.2 million training images from the ImageNet dataset.

Sometimes this module will make mistakes! The performance of darknet-tiny is about 58.7% correct (mean average precision) on the test set, and Darknet Reference is about 61.1% correct on the test set, using the default 224x224 network input layer size.

Neural network size and speed

When using a video mapping with USB output, the network is automatically resized to a square size that is the difference between the USB output video width and the camera sensor input width (e.g., when USB video mode is 544x240 and camera sensor mode is 320x240, the network will be resized to 224x224 since 224=544-320).

The network size direcly affects both speed and accuracy. Larger networks run slower but are more accurate.

For example:

with USB output 544x240 (network size 224x224), this module runs at about 450ms/prediction.
with USB output 448x240 (network size 128x128), this module runs at about 180ms/prediction.

When using a videomapping with no USB output, the network is not resized (since we would not know what to resize it to). You can still change its native size by changing the network's config file, for example, change the width and height fields in JEVOIS:/share/darknet/single/cfg/tiny.cfg.

Note that network dims must always be such that they fit inside the camera input image.

Serial messages

When detections are found with confidence scores above thresh, a message containing up to top category:score pairs will be sent per video frame. Exact message format depends on the current serstyle setting and is described in Standardized serial messages formatting. For example, when serstyle is Detail, this module sends:

DO category:score category:score ... category:score

where category is a category name (from namefile) and score is the confidence score from 0.0 to 100.0 that this category was recognized. The pairs are in order of decreasing score.

See Standardized serial messages formatting for more on standardized serial messages, and Helper functions to convert coordinates from camera resolution to standardized for more info on standardized coordinates.

Author: Laurent Itti

Display Name:: Darknet Single

Videomapping:: NONE 0 0 0.0 YUYV 320 240 2.1 JeVois DarknetSingle

Videomapping:: YUYV 544 240 15.0 YUYV 320 240 15.0 JeVois DarknetSingle

Videomapping:: YUYV 448 240 15.0 YUYV 320 240 15.0 JeVois DarknetSingle

Email:: itti@usc.edu

Address:: University of Southern California, HNB-07A, 3641 Watt Way, Los Angeles, CA 90089-2520, USA

Copyright: Copyright (C) 2017 by Laurent Itti, iLab and the University of Southern California

Main URL:: http://jevois.org

Support URL:: http://jevois.org/doc

Other URL:: http://iLab.usc.edu

License:: GPL v3

Distribution:: Unrestricted

Restrictions:: None

Definition at line 122 of file DarknetSingle.C.

Constructor & Destructor Documentation

◆ DarknetSingle()

DarknetSingle::DarknetSingle ( std::string const & instance )

inline

Constructor.

Definition at line 128 of file DarknetSingle.C.

References itsDarknet.

◆ ~DarknetSingle()

virtual DarknetSingle::~DarknetSingle ( )

inlinevirtual

Virtual destructor for safe inheritance.

Definition at line 136 of file DarknetSingle.C.

Member Function Documentation

◆ postUninit()

virtual void DarknetSingle::postUninit ( )

inlineoverridevirtual

Un-initialization.

Reimplemented from jevois::Component.

Definition at line 142 of file DarknetSingle.C.

References itsPredictFut.

◆ process() [1/2]

virtual void DarknetSingle::process ( jevois::InputFrame && inframe )

inlineoverridevirtual

Processing function, no video output.

Reimplemented from jevois::Module.

Definition at line 150 of file DarknetSingle.C.

References jevois::rawimage::cvImage(), h, jevois::RawImage::height, itsCvImg, itsDarknet, itsResults, LINFO, jevois::StdModule::sendSerialObjReco(), and jevois::RawImage::width.

◆ process() [2/2]

virtual void DarknetSingle::process	(	jevois::InputFrame &&	inframe,
		jevois::OutputFrame &&	outframe
	)

inlineoverridevirtual

Processing function with video output to USB.

Reimplemented from jevois::Module.

Definition at line 188 of file DarknetSingle.C.

References jevois::async(), jevois::yuyv::Black, jevois::rawimage::cvImage(), jevois::rawimage::drawFilledRect(), h, jevois::RawImage::height, itsCvImg, itsDarknet, itsPredictFut, itsRawInputCv, itsRawPrevOutputCv, itsResults, LFATAL, jevois::rawimage::paste(), jevois::RawImage::require(), jevois::StdModule::sendSerialObjReco(), jevois::sformat(), jevois::Timer::start(), jevois::Timer::stop(), success, jevois::yuyv::White, jevois::RawImage::width, and jevois::rawimage::writeText().

Member Data Documentation

◆ itsCvImg

cv::Mat DarknetSingle::itsCvImg

protected

Definition at line 329 of file DarknetSingle.C.

Referenced by process(), and process().

◆ itsDarknet

std::shared_ptr<Darknet> DarknetSingle::itsDarknet

protected

Definition at line 325 of file DarknetSingle.C.

Referenced by DarknetSingle(), process(), and process().

◆ itsPredictFut

std::future<float> DarknetSingle::itsPredictFut

protected

Definition at line 327 of file DarknetSingle.C.

Referenced by postUninit(), and process().

◆ itsRawInputCv

cv::Mat DarknetSingle::itsRawInputCv

protected

Definition at line 328 of file DarknetSingle.C.

Referenced by process().

◆ itsRawPrevOutputCv

cv::Mat DarknetSingle::itsRawPrevOutputCv

protected

Definition at line 330 of file DarknetSingle.C.

Referenced by process().

◆ itsResults

std::vector<jevois::ObjReco> DarknetSingle::itsResults

protected

Definition at line 326 of file DarknetSingle.C.

Referenced by process(), and process().

The documentation for this class was generated from the following file:

src/Modules/DarknetSingle/DarknetSingle.C

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Neural network size and speed

Serial messages

Constructor & Destructor Documentation

◆ DarknetSingle()

◆ ~DarknetSingle()

Member Function Documentation

◆ postUninit()

◆ process() [1/2]

◆ process() [2/2]

Member Data Documentation

◆ itsCvImg

◆ itsDarknet

◆ itsPredictFut

◆ itsRawInputCv

◆ itsRawPrevOutputCv

◆ itsResults
