Identify an object using TensorFlow deep neural network. More...

#include <jevoisbase/Components/ObjectDetection/TensorFlow.H>

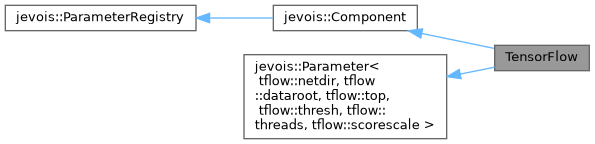

Inheritance diagram for TensorFlow:

[legend]

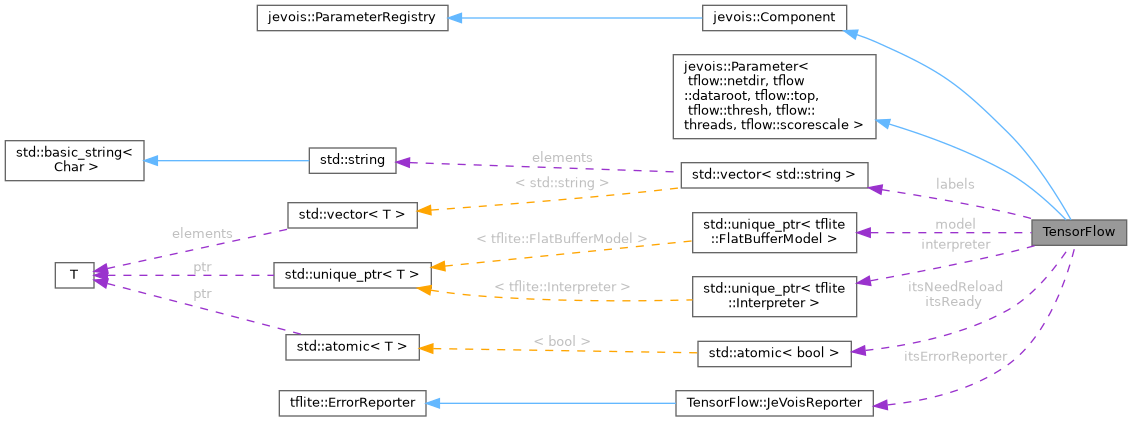

Collaboration diagram for TensorFlow:

[legend]

Classes
struct	JeVoisReporter

Public Member Functions
	TensorFlow (std::string const &instance)
	Constructor. More...

void	postInit () override
	Initialize, configure and load the network in a thread. More...

virtual	~TensorFlow ()
	Virtual destructor for safe inheritance. More...

void	postUninit () override
	Un-initialize and free resources. More...

float	predict (cv::Mat const &cvimg, std::vector< jevois::ObjReco > &results)
	Processing function, results are stored internally in the underlying TensorFlow network object. More...

void	getInDims (int &w, int &h, int &c)
	Get input width, height, channels. More...

Public Member Functions inherited from jevois::Component
	Component (std::string const &instance)

virtual	~Component ()

std::shared_ptr< Comp >	addSubComponent (std::string const &instance, Args &&...args)

void	removeSubComponent (std::shared_ptr< Comp > &component)

void	removeSubComponent (std::string const &instance, bool warnIfNotFound=true)

std::shared_ptr< Comp >	getSubComponent (std::string const &instance) const

bool	isTopLevel () const

Engine *	engine () const

bool	initialized () const

const std::string &	className () const

const std::string &	instanceName () const

std::vector< std::string >	setParamVal (std::string const &paramdescriptor, T const &val)

void	setParamValUnique (std::string const &paramdescriptor, T const &val)

std::vector< std::pair< std::string, T > >	getParamVal (std::string const &paramdescriptor) const

T	getParamValUnique (std::string const &paramdescriptor) const

std::vector< std::string >	setParamString (std::string const &paramdescriptor, std::string const &val)

void	setParamStringUnique (std::string const &paramdescriptor, std::string const &val)

std::vector< std::pair< std::string, std::string > >	getParamString (std::string const &paramdescriptor) const

std::string	getParamStringUnique (std::string const &paramdescriptor) const

void	freezeParam (std::string const &paramdescriptor)

void	unFreezeParam (std::string const &paramdescriptor)

void	freezeAllParams ()

void	unFreezeAllParams ()

std::string	descriptor () const

void	setParamsFromFile (std::string const &filename)

std::istream &	setParamsFromStream (std::istream &is, std::string const &absfile)

virtual void	paramInfo (std::shared_ptr< UserInterface > s, std::map< std::string, std::string > &categs, bool skipFrozen, std::string const &cname="", std::string const &pfx="")

void	foreachParam (std::function< void(std::string const &compname, ParameterBase *p)> func, std::string const &cname="")

std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ParameterCategory const &category)

std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ValidValuesSpec< T > const &validValuesSpec, ParameterCategory const &category)

void	setDynamicParameterCallback (std::string const &name, std::function< void(T const &)> cb, bool callnow=true)

void	removeDynamicParameter (std::string const &name)

void	setPath (std::string const &path)

std::filesystem::path	absolutePath (std::filesystem::path const &path="")

std::shared_ptr< Comp >	addSubComponent (std::string const &instance, Args &&...args)

void	removeSubComponent (std::shared_ptr< Comp > &component)

void	removeSubComponent (std::string const &instance, bool warnIfNotFound=true)

std::shared_ptr< Comp >	getSubComponent (std::string const &instance) const

bool	isTopLevel () const

Engine *	engine () const

bool	initialized () const

const std::string &	className () const

const std::string &	instanceName () const

std::vector< std::string >	setParamVal (std::string const &paramdescriptor, T const &val)

void	setParamValUnique (std::string const &paramdescriptor, T const &val)

std::vector< std::pair< std::string, T > >	getParamVal (std::string const &paramdescriptor) const

T	getParamValUnique (std::string const &paramdescriptor) const

std::vector< std::string >	setParamString (std::string const &paramdescriptor, std::string const &val)

void	setParamStringUnique (std::string const &paramdescriptor, std::string const &val)

std::vector< std::pair< std::string, std::string > >	getParamString (std::string const &paramdescriptor) const

std::string	getParamStringUnique (std::string const &paramdescriptor) const

void	freezeParam (std::string const &paramdescriptor)

void	unFreezeParam (std::string const &paramdescriptor)

void	freezeAllParams ()

void	unFreezeAllParams ()

std::string	descriptor () const

void	setParamsFromFile (std::string const &filename)

std::istream &	setParamsFromStream (std::istream &is, std::string const &absfile)

virtual void	paramInfo (std::shared_ptr< UserInterface > s, std::map< std::string, std::string > &categs, bool skipFrozen, std::string const &cname="", std::string const &pfx="")

void	foreachParam (std::function< void(std::string const &compname, ParameterBase *p)> func, std::string const &cname="")

std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ParameterCategory const &category)

std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ValidValuesSpec< T > const &validValuesSpec, ParameterCategory const &category)

void	setDynamicParameterCallback (std::string const &name, std::function< void(T const &)> cb, bool callnow=true)

void	removeDynamicParameter (std::string const &name)

void	setPath (std::string const &path)

std::filesystem::path	absolutePath (std::filesystem::path const &path="")

Public Member Functions inherited from jevois::ParameterRegistry
virtual	~ParameterRegistry ()

Public Attributes
std::vector< std::string >	labels

size_t	numlabels

std::unique_ptr< tflite::FlatBufferModel >	model

std::unique_ptr< tflite::Interpreter >	interpreter

Protected Member Functions
void	onParamChange (tflow::netdir const &param, std::string const &newval) override

void	onParamChange (tflow::dataroot const &param, std::string const &newval) override

void	loadNet ()

void	readLabelsFile (std::string const &fname)

template<class T >
void	get_top_n (T *prediction, int prediction_size, std::vector< jevois::ObjReco > &top_results, bool input_floating)

Protected Member Functions inherited from jevois::Component
virtual void	preInit ()

virtual void	preUninit ()

virtual void	preInit ()

virtual void	preUninit ()

Protected Member Functions inherited from jevois::ParameterRegistry
void	addParameter (ParameterBase *const param)

void	removeParameter (ParameterBase *const param)

void	callbackInitCall ()

Protected Attributes
std::future< void >	itsReadyFut

std::atomic< bool >	itsReady

std::atomic< bool >	itsNeedReload

JeVoisReporter	itsErrorReporter

Related Functions
(Note that these are not member functions.)
	JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK (netdir, std::string, "Network to load. This should be the name of a " "directory within JEVOIS:/share/tensorflow/ which should contain two files: " "model.tflite and labels.txt", "mobilenet_v1_224_android_quant_2017_11_08", ParamCateg)
	Parameter. More...

	JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK (dataroot, std::string, "Root path for data, config, and weight files. " "If empty, use the module's path.", JEVOIS_SHARE_PATH "/tensorflow", ParamCateg)
	Parameter. More...

	JEVOIS_DECLARE_PARAMETER (top, unsigned int, "Max number of top-scoring predictions that score above thresh to return", 5, ParamCateg)
	Parameter. More...

	JEVOIS_DECLARE_PARAMETER (thresh, float, "Threshold (in percent confidence) above which predictions will be reported", 20.0F, jevois::Range< float >(0.0F, 100.0F), ParamCateg)
	Parameter. More...

	JEVOIS_DECLARE_PARAMETER (threads, int, "Number of parallel computation threads, or 0 for auto", 4, jevois::Range< int >(0, 1024), ParamCateg)
	Parameter. More...

	JEVOIS_DECLARE_PARAMETER (scorescale, float, "Scaling factors applied to recognition scores, useful for InceptionV3", 1.0F, ParamCateg)
	Parameter. More...

Detailed Description

Identify an object using TensorFlow deep neural network.

TensorFlow is a popular neural network framework. This component identifies the object in the given image crop. It returns the top scoring candidates.

See https://www.tensorflow.org

TensorFlow is a great deep learning and deep neural network framework. TensorFlow Lite (used here) is optimized for embedded systems like the small JeVois camera because it has a very small footprint and fewer dependencies than other deep neural network frameworks like MXNet, Theano, Keras, PyTorch, etc. In addition, the port of TensorFlow to JeVois includes acceleration using the ARM NEON multimedia instructions.

Definition at line 73 of file TensorFlow.H.

Constructor & Destructor Documentation

◆ TensorFlow()

TensorFlow::TensorFlow ( std::string const & instance )

Constructor.

Definition at line 51 of file TensorFlow.C.

◆ ~TensorFlow()

TensorFlow::~TensorFlow ( )

virtual

Virtual destructor for safe inheritance.

Definition at line 56 of file TensorFlow.C.

References itsReadyFut, and JEVOIS_WAIT_GET_FUTURE.

Member Function Documentation

◆ get_top_n()

template<class T >

void TensorFlow::get_top_n	(	T *	prediction,
		int	prediction_size,
		std::vector< jevois::ObjReco > &	top_results,
		bool	input_floating
	)

protected

Definition at line 97 of file TensorFlow.C.

References labels, and value.

◆ getInDims()

void TensorFlow::getInDims	(	int &	w,
		int &	h,
		int &	c
	)

Get input width, height, channels.

Throws std::logic_error if the network is still loading and not ready.

Definition at line 296 of file TensorFlow.C.

References h, interpreter, itsNeedReload, itsReady, loadNet(), and demo::w.

◆ loadNet()

void TensorFlow::loadNet ( )

protected

Definition at line 134 of file TensorFlow.C.

References jevois::Component::absolutePath(), jevois::async(), interpreter, itsErrorReporter, itsNeedReload, itsReady, itsReadyFut, labels, LFATAL, LINFO, model, numlabels, and readLabelsFile().

Referenced by getInDims(), postInit(), and predict().

◆ onParamChange() [1/2]

void TensorFlow::onParamChange	(	tflow::dataroot const &	param,
		std::string const &	newval
	)

overrideprotected

Definition at line 67 of file TensorFlow.C.

References itsNeedReload.

◆ onParamChange() [2/2]

void TensorFlow::onParamChange	(	tflow::netdir const &	param,
		std::string const &	newval
	)

overrideprotected

Definition at line 63 of file TensorFlow.C.

References itsNeedReload.

◆ postInit()

void TensorFlow::postInit ( )

overridevirtual

Initialize, configure and load the network in a thread.

Any call to predict() will simply throw until the network is loaded and ready

Reimplemented from jevois::Component.

Definition at line 89 of file TensorFlow.C.

References loadNet().

◆ postUninit()

void TensorFlow::postUninit ( )

overridevirtual

Un-initialize and free resources.

Reimplemented from jevois::Component.

Definition at line 214 of file TensorFlow.C.

References itsReadyFut.

◆ predict()

float TensorFlow::predict	(	cv::Mat const &	cvimg,
		std::vector< jevois::ObjReco > &	results
	)

Processing function, results are stored internally in the underlying TensorFlow network object.

Expects an OpenCV byte RGB (CV_8UC3) or Gray (CV_8UC1) image, which may be further converted to float if that is what the network wants as input. The image dims and number of channels must match the network's input dims and channels. Returns the prediction time (neural net forward pass) in milliseconds. Throws std::logic_error if the network is still loading and not ready.

Definition at line 220 of file TensorFlow.C.

References interpreter, itsNeedReload, itsReady, LFATAL, loadNet(), numlabels, and demo::results.

◆ readLabelsFile()

void TensorFlow::readLabelsFile ( std::string const & fname )

protected

Definition at line 71 of file TensorFlow.C.

References file, labels, LFATAL, LINFO, and numlabels.

Referenced by loadNet().

Friends And Related Function Documentation

◆ JEVOIS_DECLARE_PARAMETER() [1/4]

JEVOIS_DECLARE_PARAMETER	(	scorescale	,
		float	,
		"Scaling factors applied to recognition	scores,
		useful for InceptionV3"	,
		1.	0F,
		ParamCateg
	)

◆ JEVOIS_DECLARE_PARAMETER() [2/4]

JEVOIS_DECLARE_PARAMETER	(	threads	,
		int	,
		"Number of parallel computation	threads,
		or 0 for auto"	,
		4	,
		jevois::Range< int >	0, 1024,
		ParamCateg
	)

◆ JEVOIS_DECLARE_PARAMETER() [3/4]

JEVOIS_DECLARE_PARAMETER	(	thresh	,
		float	,
		"Threshold (in percent confidence) above which predictions will be reported"	,
		20.	0F,
		jevois::Range< float >	0.0F, 100.0F,
		ParamCateg
	)

◆ JEVOIS_DECLARE_PARAMETER() [4/4]

JEVOIS_DECLARE_PARAMETER	(	top	,
		unsigned int	,
		"Max number of top-scoring predictions that score above thresh to return"	,
		5	,
		ParamCateg
	)

◆ JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK() [1/2]

JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK	(	dataroot	,
		std::string	,
		"Root path for	data,
		config	,
		and weight files. " "If	empty,
		use the module 's path."	,
		JEVOIS_SHARE_PATH "/tensorflow"	,
		ParamCateg
	)

◆ JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK() [2/2]

JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK	(	netdir	,
		std::string	,
		"Network to load. This should be the name of a " "directory within JEVOIS:/share/tensorflow/ which should contain two files: " "model.tflite and labels.txt"	,
		"mobilenet_v1_224_android_quant_2017_11_08"	,
		ParamCateg
	)

Member Data Documentation

◆ interpreter

std::unique_ptr<tflite::Interpreter> TensorFlow::interpreter

Definition at line 106 of file TensorFlow.H.

Referenced by getInDims(), loadNet(), predict(), PyCoralDetect.PyCoralDetect::process(), PyCoralClassify.PyCoralClassify::process(), PyCoralSegment.PyCoralSegment::process(), PyCoralClassify.PyCoralClassify::processGUI(), PyCoralDetect.PyCoralDetect::processGUI(), and PyCoralSegment.PyCoralSegment::processGUI().

◆ itsErrorReporter

JeVoisReporter TensorFlow::itsErrorReporter

protected

Definition at line 127 of file TensorFlow.H.

Referenced by loadNet().

◆ itsNeedReload

std::atomic<bool> TensorFlow::itsNeedReload

protected

Definition at line 120 of file TensorFlow.H.

Referenced by getInDims(), loadNet(), onParamChange(), and predict().

◆ itsReady

std::atomic<bool> TensorFlow::itsReady

protected

Definition at line 119 of file TensorFlow.H.

Referenced by getInDims(), loadNet(), and predict().

◆ itsReadyFut

std::future<void> TensorFlow::itsReadyFut

protected

Definition at line 118 of file TensorFlow.H.

Referenced by loadNet(), postUninit(), and ~TensorFlow().

◆ labels

std::vector<std::string> TensorFlow::labels

Definition at line 103 of file TensorFlow.H.

Referenced by get_top_n(), mobilenet_v1.MobileNetV1::infer(), mobilenet_v2.MobileNetV2::infer(), loadNet(), PyCoralDetect.PyCoralDetect::process(), PyCoralClassify.PyCoralClassify::process(), PyCoralClassify.PyCoralClassify::processGUI(), PyCoralDetect.PyCoralDetect::processGUI(), and readLabelsFile().

◆ model

std::unique_ptr<tflite::FlatBufferModel> TensorFlow::model

Definition at line 105 of file TensorFlow.H.

Referenced by lpd_yunet.LPD_YuNet::__init__(), PyNetORT.PyNetORT::freeze(), PyNetURetinex.PyNetURetinex::freeze(), PyNetOpenCV.PyNetOpenCV::freeze(), mp_palmdet.MPPalmDet::infer(), lpd_yunet.LPD_YuNet::infer(), mobilenet_v1.MobileNetV1::infer(), mobilenet_v2.MobileNetV2::infer(), PyNetORT.PyNetORT::load(), PyNetURetinex.PyNetURetinex::load(), PyNetOpenCV.PyNetOpenCV::load(), loadNet(), PyCoralDetect.PyCoralDetect::process(), PyCoralClassify.PyCoralClassify::process(), PyClassificationDNN.PyClassificationDNN::process(), PyCoralSegment.PyCoralSegment::process(), PyDetectionDNN.PyDetectionDNN::process(), PyLicensePlate.PyLicensePlate::processGUI(), PyCoralClassify.PyCoralClassify::processGUI(), PyCoralDetect.PyCoralDetect::processGUI(), PyCoralSegment.PyCoralSegment::processGUI(), mp_palmdet.MPPalmDet::setBackend(), lpd_yunet.LPD_YuNet::setBackend(), mobilenet_v2.MobileNetV2::setBackend(), mobilenet_v1.MobileNetV1::setBackend(), mp_palmdet.MPPalmDet::setTarget(), lpd_yunet.LPD_YuNet::setTarget(), mobilenet_v1.MobileNetV1::setTarget(), and mobilenet_v2.MobileNetV2::setTarget().

◆ numlabels

size_t TensorFlow::numlabels

Definition at line 104 of file TensorFlow.H.

Referenced by loadNet(), predict(), and readLabelsFile().

The documentation for this class was generated from the following files:

include/jevoisbase/Components/ObjectDetection/TensorFlow.H
src/Components/ObjectDetection/TensorFlow.C

Classes

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Related Functions

Detailed Description

Constructor & Destructor Documentation

◆ TensorFlow()

◆ ~TensorFlow()

Member Function Documentation

◆ get_top_n()

◆ getInDims()

◆ loadNet()

◆ onParamChange() [1/2]

◆ onParamChange() [2/2]

◆ postInit()

◆ postUninit()

◆ predict()

◆ readLabelsFile()

Friends And Related Function Documentation

◆ JEVOIS_DECLARE_PARAMETER() [1/4]

◆ JEVOIS_DECLARE_PARAMETER() [2/4]

◆ JEVOIS_DECLARE_PARAMETER() [3/4]

◆ JEVOIS_DECLARE_PARAMETER() [4/4]

◆ JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK() [1/2]

◆ JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK() [2/2]

Member Data Documentation

◆ interpreter

◆ itsErrorReporter

◆ itsNeedReload

◆ itsReady

◆ itsReadyFut

◆ labels

◆ model

◆ numlabels
