DemoQRcode Class Reference
JeVoisBase machine vision modules

Simple demo of QR-code and barcode detection and decoding using the ZBar library. More...

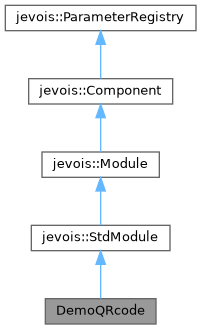

Inheritance diagram for DemoQRcode:
Inheritance graph
[legend]

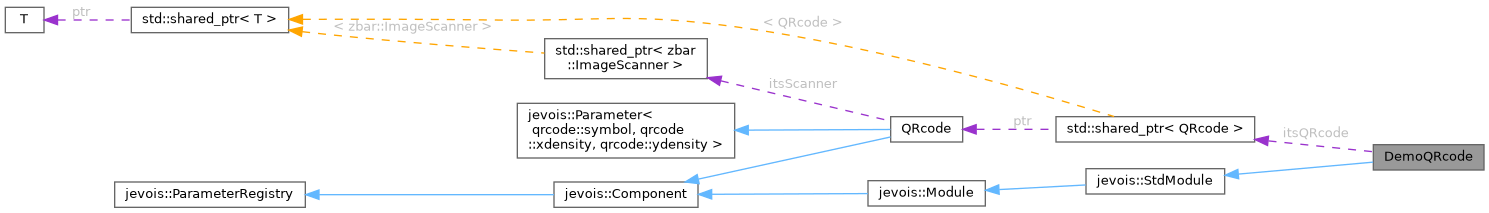

Collaboration diagram for DemoQRcode:
Collaboration graph
[legend]

Public Member Functions

 DemoQRcode (std::string const &instance)
 Constructor.

virtual ~DemoQRcode ()
 Virtual destructor for safe inheritance.

virtual void process (jevois::InputFrame &&inframe) override
 Processing function, no video output.

virtual void process (jevois::InputFrame &&inframe, jevois::OutputFrame &&outframe) override
 Processing function with video output to USB.

virtual void process (jevois::InputFrame &&inframe, jevois::GUIhelper &helper) override
 Processing function with JeVois-Pro GUI.

- Public Member Functions inherited from jevois::StdModule
 StdModule (std::string const &instance)

virtual ~StdModule ()

void sendSerialImg1Dx (unsigned int camw, float x, float size=0.0F, std::string const &id="", std::string const &extra="")

void sendSerialStd1Dx (float x, float size=0.0F, std::string const &id="", std::string const &extra="")

void sendSerialImg1Dy (unsigned int camh, float y, float size=0.0F, std::string const &id="", std::string const &extra="")

void sendSerialStd1Dy (float y, float size=0.0F, std::string const &id="", std::string const &extra="")

void sendSerialImg2D (unsigned int camw, unsigned int camh, float x, float y, float w=0.0F, float h=0.0F, std::string const &id="", std::string const &extra="")

void sendSerialStd2D (float x, float y, float w=0.0F, float h=0.0F, std::string const &id="", std::string const &extra="")

void sendSerialContour2D (unsigned int camw, unsigned int camh, std::vector< cv::Point_< T > > points, std::string const &id="", std::string const &extra="")

void sendSerialStd3D (float x, float y, float z, float w=0.0F, float h=0.0F, float d=0.0F, float q1=0.0F, float q2=0.0F, float q3=0.0f, float q4=0.0F, std::string const &id="", std::string const &extra="")

void sendSerialStd3D (std::vector< cv::Point3f > points, std::string const &id="", std::string const &extra="")

void sendSerialObjReco (std::vector< ObjReco > const &res)

void sendSerialObjDetImg2D (unsigned int camw, unsigned int camh, float x, float y, float w, float h, std::vector< ObjReco > const &res)

void sendSerialObjDetImg2D (unsigned int camw, unsigned int camh, ObjDetect const &det)

void sendSerialObjDetImg2D (unsigned int camw, unsigned int camh, ObjDetectOBB const &det)

 JEVOIS_DEFINE_ENUM_CLASS (SerStyle,(Terse)(Normal)(Detail)(Fine))

 JEVOIS_DECLARE_PARAMETER (serstyle, SerStyle, "Style for standardized serial messages as defined in " "http://jevois.org/doc/UserSerialStyle.html", SerStyle::Terse, SerStyle_Values, ParamCateg)

 JEVOIS_DECLARE_PARAMETER (serprec, unsigned int, "Number of decimal points in standardized serial messages as " "defined in http://jevois.org/doc/UserSerialStyle.html", 0U, jevois::Range< unsigned int >(0U, 10U), ParamCateg)

 JEVOIS_DEFINE_ENUM_CLASS (SerStamp,(None)(Frame)(Time)(FrameTime)(FrameDateTime))

 JEVOIS_DECLARE_PARAMETER (serstamp, SerStamp, "Prepend standardized serial messages with a frame number, " "time, frame+time, or frame+date+time. See details in " "http://jevois.org/doc/UserSerialStyle.html", SerStamp::None, SerStamp_Values, ParamCateg)

 JEVOIS_DEFINE_ENUM_CLASS (SerMark,(None)(Start)(Stop)(Both))

 JEVOIS_DECLARE_PARAMETER (sermark, SerMark, "Send serial message to mark the beginning (MARK START) of the " "processing of a video frame from the camera sensor, the end (MARK STOP), or both. " "Useful, among others, if one needs to know when no results were sent over serial " "on a given frame. Combine with parameter serstamp if you need to know the frame number.", SerMark::None, SerMark_Values, ParamCateg)

- Public Member Functions inherited from jevois::Module
 Module (std::string const &instance)

virtual ~Module ()

virtual void sendSerial (std::string const &str)

virtual void parseSerial (std::string const &str, std::shared_ptr< UserInterface > s)

virtual void supportedCommands (std::ostream &os)

- Public Member Functions inherited from jevois::Component
 Component (std::string const &instance)

virtual ~Component ()

std::shared_ptr< Comp > addSubComponent (std::string const &instance, Args &&...args)

void removeSubComponent (std::shared_ptr< Comp > &component)

void removeSubComponent (std::string const &instance, bool warnIfNotFound=true)

std::shared_ptr< Comp > getSubComponent (std::string const &instance) const

bool isTopLevel () const

bool initialized () const

std::string const & className () const

std::string const & instanceName () const

std::vector< std::string > setParamVal (std::string const &paramdescriptor, T const &val)

void setParamValUnique (std::string const &paramdescriptor, T const &val)

std::vector< std::pair< std::string, T > > getParamVal (std::string const &paramdescriptor) const

T getParamValUnique (std::string const &paramdescriptor) const

std::vector< std::string > setParamString (std::string const &paramdescriptor, std::string const &val)

void setParamStringUnique (std::string const &paramdescriptor, std::string const &val)

std::vector< std::pair< std::string, std::string > > getParamString (std::string const &paramdescriptor) const

std::string getParamStringUnique (std::string const &paramdescriptor) const

void freezeParam (std::string const &paramdescriptor, bool doit)

void freezeAllParams (bool doit)

void hideParam (std::string const &paramdescriptor, bool doit)

void hideAllParams (bool doit)

std::string descriptor () const

void setParamsFromFile (std::string const &filename)

std::istream & setParamsFromStream (std::istream &is, std::string const &absfile)

virtual void paramInfo (std::shared_ptr< UserInterface > s, std::map< std::string, std::string > &categs, bool skipFrozen, std::string const &cname="", std::string const &pfx="")

void foreachParam (std::function< void(std::string const &compname, ParameterBase *p)> func, std::string const &cname="")

std::shared_ptr< DynamicParameter< T > > addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ParameterCategory const &category)

std::shared_ptr< DynamicParameter< T > > addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ValidValuesSpec< T > const &validValuesSpec, ParameterCategory const &category)

void setDynamicParameterCallback (std::string const &name, std::function< void(T const &)> cb, bool callnow=true)

void removeDynamicParameter (std::string const &name, bool throw_if_not_found=true)

void setPath (std::string const &path)

std::filesystem::path absolutePath (std::filesystem::path const &path="")

std::shared_ptr< Comp > addSubComponent (std::string const &instance, Args &&...args)

void removeSubComponent (std::shared_ptr< Comp > &component)

void removeSubComponent (std::string const &instance, bool warnIfNotFound=true)

std::shared_ptr< Comp > getSubComponent (std::string const &instance) const

bool isTopLevel () const

bool initialized () const

std::string const & className () const

std::string const & instanceName () const

std::vector< std::string > setParamVal (std::string const &paramdescriptor, T const &val)

void setParamValUnique (std::string const &paramdescriptor, T const &val)

std::vector< std::pair< std::string, T > > getParamVal (std::string const &paramdescriptor) const

T getParamValUnique (std::string const &paramdescriptor) const

std::vector< std::string > setParamString (std::string const &paramdescriptor, std::string const &val)

void setParamStringUnique (std::string const &paramdescriptor, std::string const &val)

std::vector< std::pair< std::string, std::string > > getParamString (std::string const &paramdescriptor) const

std::string getParamStringUnique (std::string const &paramdescriptor) const

void freezeParam (std::string const &paramdescriptor, bool doit)

void freezeAllParams (bool doit)

void hideParam (std::string const &paramdescriptor, bool doit)

void hideAllParams (bool doit)

std::string descriptor () const

void setParamsFromFile (std::string const &filename)

std::istream & setParamsFromStream (std::istream &is, std::string const &absfile)

virtual void paramInfo (std::shared_ptr< UserInterface > s, std::map< std::string, std::string > &categs, bool skipFrozen, std::string const &cname="", std::string const &pfx="")

void foreachParam (std::function< void(std::string const &compname, ParameterBase *p)> func, std::string const &cname="")

std::shared_ptr< DynamicParameter< T > > addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ParameterCategory const &category)

std::shared_ptr< DynamicParameter< T > > addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ValidValuesSpec< T > const &validValuesSpec, ParameterCategory const &category)

void setDynamicParameterCallback (std::string const &name, std::function< void(T const &)> cb, bool callnow=true)

void removeDynamicParameter (std::string const &name, bool throw_if_not_found=true)

void setPath (std::string const &path)

std::filesystem::path absolutePath (std::filesystem::path const &path="")

- Public Member Functions inherited from jevois::ParameterRegistry
virtual ~ParameterRegistry ()


Protected Attributes

std::shared_ptr< QRcode > itsQRcode


Additional Inherited Members

- Protected Member Functions inherited from jevois::StdModule
void sendSerialMarkStart ()

void sendSerialMarkStop ()

std::string getStamp () const

- Protected Member Functions inherited from jevois::Component
virtual void preInit ()

virtual void postInit ()

virtual void preUninit ()

virtual void postUninit ()

virtual void preInit ()

virtual void postInit ()

virtual void preUninit ()

virtual void postUninit ()

- Protected Member Functions inherited from jevois::ParameterRegistry
void addParameter (ParameterBase *const param)

void removeParameter (ParameterBase *const param)

void callbackInitCall ()


Detailed Description

Simple demo of QR-code and barcode detection and decoding using the ZBar library.

Detect barcodes and QR-codes, and decode their contents.

QR-codes (Quick Response Codes) are popular 2D patterns that contain embedded information, such as a string of text, a URL, etc. They basically work like barcodes, coding information into a high-contrast, geometric pattern that is easier to detect and decode by a machine that more conventional human-written text or drawings.

One can generate QR-codes containing different kinds of information, for example using online QR-code generators, such as http://www.qr-code-generator.com/

JeVois detects and decodes QR-codes and other barcodes. The implementation of the detection and decoding algorithm used in JeVois is from the popular library ZBar, found at http://zbar.sourceforge.net/

You should be able to sustain 30 frames/s with camera resolution 320x240, and 15 frames/s with camera resolution 640x480 when running this module inside the JeVois smart camera.

Serial Messages

This module can send standardized serial messages as described in Standardized serial messages formatting. One message is issued for every detected QR-code or barcode, on every video frame.

  • Serial message type: 2D
  • id: type of symbol (e.g., QR-Code, ISBN13, etc).
  • x, y, or vertices: standardized 2D coordinates of symbol center or of corners of bounding box (depending on serstyle)
  • w, h: standardized object size
  • extra: decoded contents (e.g., URL that was in a QR-code, ISBN number from a barcode, etc)

Note that when serstyle is Fine, only 4 corners are returned for each detected QR-code, but many points are returned all over each detected barcode. Beware to not exceed your serial bandwidth in that case.

See Standardized serial messages formatting for more on standardized serial messages, and Helper functions to convert coordinates from camera resolution to standardized for more info on standardized coordinates.

Author
Laurent Itti
Display Name:
Demo QR-code
Videomapping:
YUYV 640 526 15.0 YUYV 640 480 15.0 JeVois DemoQRcode
Videomapping:
YUYV 320 286 30.0 YUYV 320 240 30.0 JeVois DemoQRcode
Videomapping:
NONE 0 0 0 YUYV 640 480 15.0 JeVois DemoQRcode
Videomapping:
NONE 0 0 0 YUYV 320 240 30.0 JeVois DemoQRcode
Email:
itti@usc.edu
Address:
University of Southern California, HNB-07A, 3641 Watt Way, Los Angeles, CA 90089-2520, USA
Copyright
Copyright (C) 2016 by Laurent Itti, iLab and the University of Southern California
Main URL:
http://jevois.org
Support URL:
http://jevois.org/doc
Other URL:
http://iLab.usc.edu
License:
GPL v3
Distribution:
Unrestricted
Restrictions:
None

Definition at line 79 of file DemoQRcode.C.

Constructor & Destructor Documentation

◆ DemoQRcode()

DemoQRcode::DemoQRcode ( std::string const &  instance)
inline

Constructor.

Definition at line 86 of file DemoQRcode.C.

References itsQRcode.

◆ ~DemoQRcode()

virtual DemoQRcode::~DemoQRcode ( )
inlinevirtual

Virtual destructor for safe inheritance.

Definition at line 92 of file DemoQRcode.C.

Member Function Documentation

◆ process() [1/3]

virtual void DemoQRcode::process ( jevois::InputFrame &&  inframe)
inlineoverridevirtual

Processing function, no video output.

Reimplemented from jevois::Module.

Definition at line 98 of file DemoQRcode.C.

References jevois::rawimage::convertToCvGray(), h, jevois::RawImage::height, itsQRcode, and jevois::RawImage::width.

◆ process() [2/3]

virtual void DemoQRcode::process ( jevois::InputFrame &&  inframe,
jevois::GUIhelper &  helper
)
inlineoverridevirtual

Processing function with JeVois-Pro GUI.

Reimplemented from jevois::Module.

Definition at line 181 of file DemoQRcode.C.

References jevois::rawimage::convertToCvGray(), jevois::GUIhelper::drawInputFrame(), jevois::GUIhelper::endFrame(), h, jevois::RawImage::height, jevois::GUIhelper::iinfo(), jevois::GUIhelper::itext(), itsQRcode, jevois::Timer::start(), jevois::GUIhelper::startFrame(), jevois::Timer::stop(), and jevois::RawImage::width.

◆ process() [3/3]

virtual void DemoQRcode::process ( jevois::InputFrame &&  inframe,
jevois::OutputFrame &&  outframe
)
inlineoverridevirtual

Processing function with video output to USB.

Reimplemented from jevois::Module.

Definition at line 124 of file DemoQRcode.C.

References jevois::async(), jevois::rawimage::convertToCvGray(), jevois::rawimage::drawFilledRect(), jevois::RawImage::fmt, h, jevois::RawImage::height, itsQRcode, jevois::rawimage::paste(), jevois::RawImage::require(), jevois::Timer::start(), jevois::Timer::stop(), jevois::yuyv::White, jevois::RawImage::width, and jevois::rawimage::writeText().

Member Data Documentation

◆ itsQRcode

std::shared_ptr<QRcode> DemoQRcode::itsQRcode
protected

Definition at line 228 of file DemoQRcode.C.

Referenced by DemoQRcode(), process(), process(), and process().
