Simple component to track a moving 2D box (position and size) over time using a Kalman filter. More...

#include <jevoisbase/Components/Tracking/Kalman4D.H>

Inheritance diagram for Kalman4D:

[legend]

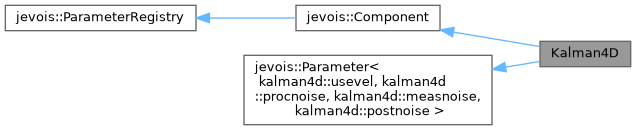

Collaboration diagram for Kalman4D:

[legend]

Public Member Functions
	Kalman4D (std::string const &instance)
	Constructor.

virtual	~Kalman4D ()
	Destructor.

void	set (float x, float y, float w, float h)
	Function to call each time you have a new measurement (output from a vision algorithm)

void	set (float x, float y, float w, float h, unsigned int imgwidth, unsigned int imgheight)
	Function to call each time you have a new measurement (output from a vision algorithm)

void	get (float &x, float &y, float &w, float &h, float const eps=0.01F)
	Function to call each time you want to get the Kalman-filtered coordinates.

void	get (float &x, float &y, float &w, float &h, unsigned int imgwidth, unsigned int imgheight, float const eps=0.01F)
	Function to call each time you want to get the Kalman-filtered coordinates.

void	get (float &rawx, float &rawy, float &raww, float &rawh, float &imgx, float &imgy, float &imgw, float &imgh, unsigned int imgwidth, unsigned int imgheight, float const raweps=0.01F, float const imgeps=0.01F)
	Function to call each time you want to get the Kalman-filtered coordinates.

cv::Mat const &	getErrorCov () const
	Get the latest error covariance matrix (errorCovPost). It is updated after each get() or set()

Public Member Functions inherited from jevois::Component
	Component (std::string const &instance)

virtual	~Component ()

std::shared_ptr< Comp >	addSubComponent (std::string const &instance, Args &&...args)

void	removeSubComponent (std::shared_ptr< Comp > &component)

void	removeSubComponent (std::string const &instance, bool warnIfNotFound=true)

std::shared_ptr< Comp >	getSubComponent (std::string const &instance) const

bool	isTopLevel () const

bool	initialized () const

std::string const &	className () const

std::string const &	instanceName () const

std::vector< std::string >	setParamVal (std::string const &paramdescriptor, T const &val)

void	setParamValUnique (std::string const &paramdescriptor, T const &val)

std::vector< std::pair< std::string, T > >	getParamVal (std::string const &paramdescriptor) const

T	getParamValUnique (std::string const &paramdescriptor) const

std::vector< std::string >	setParamString (std::string const &paramdescriptor, std::string const &val)

void	setParamStringUnique (std::string const &paramdescriptor, std::string const &val)

std::vector< std::pair< std::string, std::string > >	getParamString (std::string const &paramdescriptor) const

std::string	getParamStringUnique (std::string const &paramdescriptor) const

void	freezeParam (std::string const &paramdescriptor, bool doit)

void	freezeAllParams (bool doit)

std::string	descriptor () const

void	setParamsFromFile (std::string const &filename)

std::istream &	setParamsFromStream (std::istream &is, std::string const &absfile)

virtual void	paramInfo (std::shared_ptr< UserInterface > s, std::map< std::string, std::string > &categs, bool skipFrozen, std::string const &cname="", std::string const &pfx="")

void	foreachParam (std::function< void(std::string const &compname, ParameterBase *p)> func, std::string const &cname="")

std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ParameterCategory const &category)

std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ValidValuesSpec< T > const &validValuesSpec, ParameterCategory const &category)

void	setDynamicParameterCallback (std::string const &name, std::function< void(T const &)> cb, bool callnow=true)

void	removeDynamicParameter (std::string const &name, bool throw_if_not_found=true)

void	setPath (std::string const &path)

std::filesystem::path	absolutePath (std::filesystem::path const &path="")

std::shared_ptr< Comp >	addSubComponent (std::string const &instance, Args &&...args)

void	removeSubComponent (std::shared_ptr< Comp > &component)

void	removeSubComponent (std::string const &instance, bool warnIfNotFound=true)

std::shared_ptr< Comp >	getSubComponent (std::string const &instance) const

bool	isTopLevel () const

bool	initialized () const

std::string const &	className () const

std::string const &	instanceName () const

std::vector< std::string >	setParamVal (std::string const &paramdescriptor, T const &val)

void	setParamValUnique (std::string const &paramdescriptor, T const &val)

std::vector< std::pair< std::string, T > >	getParamVal (std::string const &paramdescriptor) const

T	getParamValUnique (std::string const &paramdescriptor) const

std::vector< std::string >	setParamString (std::string const &paramdescriptor, std::string const &val)

void	setParamStringUnique (std::string const &paramdescriptor, std::string const &val)

std::vector< std::pair< std::string, std::string > >	getParamString (std::string const &paramdescriptor) const

std::string	getParamStringUnique (std::string const &paramdescriptor) const

void	freezeParam (std::string const &paramdescriptor, bool doit)

void	freezeAllParams (bool doit)

std::string	descriptor () const

void	setParamsFromFile (std::string const &filename)

std::istream &	setParamsFromStream (std::istream &is, std::string const &absfile)

virtual void	paramInfo (std::shared_ptr< UserInterface > s, std::map< std::string, std::string > &categs, bool skipFrozen, std::string const &cname="", std::string const &pfx="")

void	foreachParam (std::function< void(std::string const &compname, ParameterBase *p)> func, std::string const &cname="")

std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ParameterCategory const &category)

std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ValidValuesSpec< T > const &validValuesSpec, ParameterCategory const &category)

void	setDynamicParameterCallback (std::string const &name, std::function< void(T const &)> cb, bool callnow=true)

void	removeDynamicParameter (std::string const &name, bool throw_if_not_found=true)

void	setPath (std::string const &path)

std::filesystem::path	absolutePath (std::filesystem::path const &path="")

Public Member Functions inherited from jevois::ParameterRegistry
virtual	~ParameterRegistry ()

Protected Member Functions
void	postInit () override

void	onParamChange (kalman4d::usevel const &param, bool const &newval) override

void	onParamChange (kalman4d::procnoise const &param, float const &newval) override

void	onParamChange (kalman4d::measnoise const &param, float const &newval) override

void	onParamChange (kalman4d::postnoise const &param, float const &newval) override

Protected Member Functions inherited from jevois::Component
virtual void	preInit ()

virtual void	preUninit ()

virtual void	postUninit ()

virtual void	preInit ()

virtual void	preUninit ()

virtual void	postUninit ()

Protected Member Functions inherited from jevois::ParameterRegistry
void	addParameter (ParameterBase *const param)

void	removeParameter (ParameterBase *const param)

void	callbackInitCall ()

Protected Attributes
cv::KalmanFilter	itsKF

cv::Mat	itsProcessNoise

cv::Mat	itsMeasurement

cv::Mat	itsLatest

bool	itsFresh

Related Symbols
(Note that these are not member symbols.)
	JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK (usevel, bool, "Use velocity tracking, in addition to position", false, ParamCateg)
	Parameter.

	JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK (procnoise, float, "Process noise standard deviation", 0.003F, ParamCateg)
	Parameter.

	JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK (measnoise, float, "Measurement noise standard deviation", 0.05F, ParamCateg)
	Parameter.

	JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK (postnoise, float, "A posteriori error estimate standard deviation", 0.3F, ParamCateg)
	Parameter.

Detailed Description

Simple component to track a moving 2D box (position and size) over time using a Kalman filter.

A Kalman filter allows one to filter noisy data over time. Here, it is used to filter the possibly noisy results of some machine vision algorith that is trying to detect a particular item in the camera's video stream. On occasion, the detection might abruptly jump to an erroneous location. Such jumps are filtered out by the Kalman filter.

See for example DemoSaliency to see the Kalman4d filtering over time the location of the most salient object in the video stream. The 4D version is to track a box which is assumed to be moving but of roughly constant size.

To allow using this component in many different modules and to support various image resolutions, we here internally normalize all measurements and filtered outputs to between [-1000.0 ... 1000.0] horizontally and [-750 ... 750 vertically, where (-1000.0, -750.0) is the top-left of the image, (0.0, 0.0) the center, and (1000.0, 750.0) the bottom-right corner.

Helper functions are used to do this conversion, see Helper functions to convert coordinates from camera resolution to standardized.

The range [-1000.0 ... 1000.0] is fixed and is not exposed as a parameter so that users of the Kalman4D class will not be tempted to use various ranges, in an effort to standardize the interface between vision modules (which may track object locations using Kalman4D) and motor control (e.g., an Arduino controlling servos on a pan/tilt camera head). The writers of motor control code can reliably assume that object coordinates sent to them will be in the [-1000.0 ... 1000.0] horizontal and [-750 ... 750] vertical range with 0,0 at dead center, and control their motors accordingly.

This code loosely inspired by https://github.com/abreheret/kalman-mouse/blob/master/src/main.cpp

Definition at line 69 of file Kalman4D.H.

Constructor & Destructor Documentation

◆ Kalman4D()

Kalman4D::Kalman4D ( std::string const & instance )

Constructor.

Definition at line 23 of file Kalman4D.C.

References itsKF.

◆ ~Kalman4D()

Kalman4D::~Kalman4D ( )

virtual

Destructor.

Definition at line 31 of file Kalman4D.C.

Member Function Documentation

◆ get() [1/3]

void Kalman4D::get	(	float &	rawx,
		float &	rawy,
		float &	raww,
		float &	rawh,
		float &	imgx,
		float &	imgy,
		float &	imgw,
		float &	imgh,
		unsigned int	imgwidth,
		unsigned int	imgheight,
		float const	raweps = `0.01F`,
		float const	imgeps = `0.01F`
	)

Function to call each time you want to get the Kalman-filtered coordinates.

It is ok to call get() multiple times with no intervening set(), if you have no new measurements but still want to use the filter output. This variant returns both the coordinates in [0 .. 1000] range (typically, so send to an Arduino for servo control, or other motor plant), and the image coordinates in [0 .. imgwidth[ x [0 .. imgheight[ (typically, to draw on a debug/demo image).

Definition at line 159 of file Kalman4D.C.

References get(), jevois::coords::stdToImg(), and jevois::coords::stdToImgSize().

◆ get() [2/3]

void Kalman4D::get	(	float &	x,
		float &	y,
		float &	w,
		float &	h,
		float const	eps = `0.01F`
	)

Function to call each time you want to get the Kalman-filtered coordinates.

It is ok to call get() multiple times with no intervening set(), if you have no new measurements but still want to use the filter output. This variant does not normalize the coordinates, they should typically be in [-1000.0 .. 1000.0] range.

eps is used for rounding of returned coordinates, which is convenient to avoid sending very long floating point values over serial port.

Definition at line 115 of file Kalman4D.C.

References h, itsFresh, itsKF, and itsLatest.

Referenced by get(), and get().

◆ get() [3/3]

void Kalman4D::get	(	float &	x,
		float &	y,
		float &	w,
		float &	h,
		unsigned int	imgwidth,
		unsigned int	imgheight,
		float const	eps = `0.01F`
	)

Function to call each time you want to get the Kalman-filtered coordinates.

It is ok to call get() multiple times with no intervening set(), if you have no new measurements but still want to use the filter output. This variant normalizes the coordinates back to image coordinates in [0 .. imgwidth[ x [0 .. imgheight[

Definition at line 150 of file Kalman4D.C.

References get(), h, jevois::coords::imgToStdSize(), and jevois::coords::stdToImg().

◆ getErrorCov()

cv::Mat const & Kalman4D::getErrorCov ( ) const

Get the latest error covariance matrix (errorCovPost). It is updated after each get() or set()

Definition at line 185 of file Kalman4D.C.

References itsKF.

◆ onParamChange() [1/4]

void Kalman4D::onParamChange	(	kalman4d::measnoise const &	param,
		float const &	newval
	)

overrideprotected

◆ onParamChange() [2/4]

void Kalman4D::onParamChange	(	kalman4d::postnoise const &	param,
		float const &	newval
	)

overrideprotected

◆ onParamChange() [3/4]

void Kalman4D::onParamChange	(	kalman4d::procnoise const &	param,
		float const &	newval
	)

overrideprotected

◆ onParamChange() [4/4]

void Kalman4D::onParamChange	(	kalman4d::usevel const &	param,
		bool const &	newval
	)

overrideprotected

◆ postInit()

void Kalman4D::postInit ( )

overrideprotectedvirtual

Reimplemented from jevois::Component.

Definition at line 35 of file Kalman4D.C.

References itsKF.

◆ set() [1/2]

void Kalman4D::set	(	float	x,
		float	y,
		float	w,
		float	h
	)

Function to call each time you have a new measurement (output from a vision algorithm)

This variant does not normalize the coordinates, they should typically be in [-1000.0 .. 1000.0]

Definition at line 98 of file Kalman4D.C.

References h, itsFresh, itsKF, itsLatest, and itsMeasurement.

Referenced by set().

◆ set() [2/2]

void Kalman4D::set	(	float	x,
		float	y,
		float	w,
		float	h,
		unsigned int	imgwidth,
		unsigned int	imgheight
	)

Function to call each time you have a new measurement (output from a vision algorithm)

This variant normalizes the image coordinates to the range [-1000.0 .. 1000.0] horizontal and [-750 ... 750] vertical.

Definition at line 107 of file Kalman4D.C.

References h, jevois::coords::imgToStd(), jevois::coords::imgToStdSize(), and set().

Friends And Related Symbol Documentation

◆ JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK() [1/4]

JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK	(	measnoise	,
		float	,
		"Measurement noise standard deviation"	,
		0.	05F,
		ParamCateg
	)

◆ JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK() [2/4]

JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK	(	postnoise	,
		float	,
		"A posteriori error estimate standard deviation"	,
		0.	3F,
		ParamCateg
	)

◆ JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK() [3/4]

JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK	(	procnoise	,
		float	,
		"Process noise standard deviation"	,
		0.	003F,
		ParamCateg
	)

◆ JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK() [4/4]

JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK	(	usevel	,
		bool	,
		"Use velocity	tracking,
		in addition to position"	,
		false	,
		ParamCateg
	)

Member Data Documentation

◆ itsFresh

bool Kalman4D::itsFresh

protected

Definition at line 129 of file Kalman4D.H.

Referenced by get(), and set().

◆ itsKF

cv::KalmanFilter Kalman4D::itsKF

protected

Definition at line 125 of file Kalman4D.H.

Referenced by get(), getErrorCov(), Kalman4D(), postInit(), and set().

◆ itsLatest

cv::Mat Kalman4D::itsLatest

protected

Definition at line 128 of file Kalman4D.H.

Referenced by get(), and set().

◆ itsMeasurement

cv::Mat Kalman4D::itsMeasurement

protected

Definition at line 127 of file Kalman4D.H.

Referenced by set().

◆ itsProcessNoise

cv::Mat Kalman4D::itsProcessNoise

protected

Definition at line 126 of file Kalman4D.H.

The documentation for this class was generated from the following files:

include/jevoisbase/Components/Tracking/Kalman4D.H
src/Components/Tracking/Kalman4D.C

Public Member Functions

Protected Member Functions

Protected Attributes

Related Symbols

Detailed Description

Constructor & Destructor Documentation

◆ Kalman4D()

◆ ~Kalman4D()

Member Function Documentation

◆ get() [1/3]

◆ get() [2/3]

◆ get() [3/3]

◆ getErrorCov()

◆ onParamChange() [1/4]

◆ onParamChange() [2/4]

◆ onParamChange() [3/4]

◆ onParamChange() [4/4]

◆ postInit()

◆ set() [1/2]

◆ set() [2/2]

Friends And Related Symbol Documentation

◆ JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK() [1/4]

◆ JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK() [2/4]

◆ JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK() [3/4]

◆ JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK() [4/4]

Member Data Documentation

◆ itsFresh

◆ itsKF

◆ itsLatest

◆ itsMeasurement

◆ itsProcessNoise
