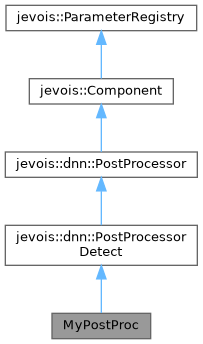

Inheritance diagram for MyPostProc:

[legend]

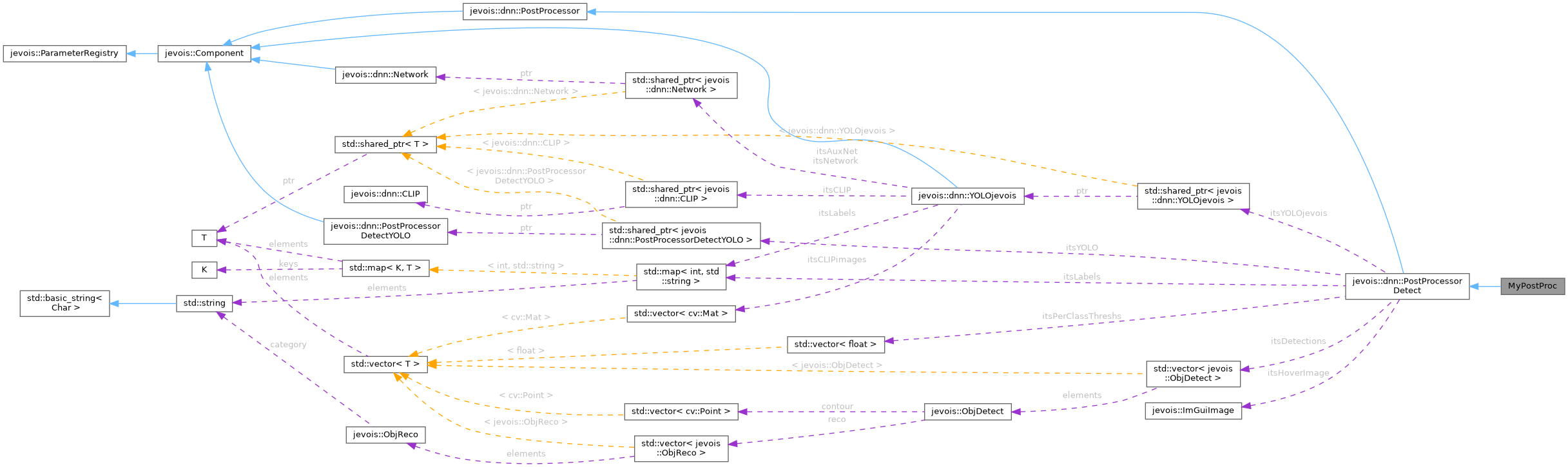

Collaboration diagram for MyPostProc:

[legend]

Public Member Functions
virtual	~MyPostProc ()

std::vector< jevois::ObjDetect > const &	getDetections ()

Public Member Functions inherited from jevois::dnn::PostProcessorDetect
virtual	~PostProcessorDetect ()

void	freeze (bool doit) override

void	process (std::vector< cv::Mat > const &outs, PreProcessor *preproc) override

void	report (jevois::StdModule mod, jevois::RawImage outimg=nullptr, jevois::OptGUIhelper *helper=nullptr, bool overlay=true, bool idle=false) override

std::vector< ObjDetect > const &	latestDetections () const

	JEVOIS_DECLARE_PARAMETER (maxnbox, unsigned int, "Max number of top-scoring boxes to report (for YOLO flavors, " "this is the max for each scale), or 0 for no limit", 500, ParamCateg)

	JEVOIS_DECLARE_PARAMETER (namedonly, bool, "When true, only report (on display and to serial ports) results " "for which we have a class name defined in the class file. This can allow one " "to skip some of the results by simply commenting out their name in the class file " "(make sure your class file then contains class-ID numbers for each named class).", false, ParamCateg)

	JEVOIS_DECLARE_PARAMETER (dthresh, float, "Detection box threshold (in percent confidence) above which " "predictions will be reported. Not all networks use a separate box threshold, " "many only use one threshold confidence threshold (cthresh parameter). The YOLO " "family is an example that uses both box and classification confidences", 15.0F, jevois::Range< float >(0.0F, 100.0F), ParamCateg)

	JEVOIS_DEFINE_ENUM_CLASS (DetectType,(FasterRCNN)(YOLO)(SSD)(TPUSSD)(RAWYOLO)(YOLOv10)(YOLOv10pp)(YOLOX)(YOLOv8)(YOLOv8t)(YOLOv8seg)(YOLOv8segt))

	JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK (detecttype, DetectType, "Type of detection output format", DetectType::YOLO, DetectType_Values, ParamCateg)

	JEVOIS_DECLARE_PARAMETER (nms, float, "Non-maximum suppression intersection-over-union threshold in percent", 45.0F, jevois::Range< float >(0.0F, 100.0F), ParamCateg)

	JEVOIS_DECLARE_PARAMETER (nmsperclass, bool, "When true, apply non-maximum suppression (NMS) separately for each " "object class, rather than globally. This will allow overlapping boxes as long as " "they belong to different classes", false, ParamCateg)

	JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK (anchors, std::string, "For YOLO-type detection models with raw outputs, " "list of anchors. Should be formatted as: w1, h1, w2, h2, ... ww1, hh1, ww2, hh2, " "... ... where individual entries for a given YOLO layer are separated by commas, " "and successive YOLO layers (from large to small, e.g., first the anchors for 52x52, " "then for 26x26, then for 13x13) are separated by semicolons. Leave empty " "for other models.", "", ParamCateg)

	JEVOIS_DECLARE_PARAMETER (masksmooth, bool, "When true, extract smoother instance segmentation masks, " "which may be marginally slower.", true, ParamCateg)

	JEVOIS_DECLARE_PARAMETER (alpha, unsigned char, "Alpha channel value for drawn results", 64, ParamCateg)

	JEVOIS_DECLARE_PARAMETER (sigmoid, bool, "Apply sigmoid to raw YOLO outputs, use when the last conv layers " "just before yolo/detection/region layers have linear activation (most " "YOLOv2/v3/v4 models, but not YOLOv5/v7 which have logistic activation on their " "last conv)", true, ParamCateg)

Public Member Functions inherited from jevois::dnn::PostProcessor
virtual	~PostProcessor ()

Public Member Functions inherited from jevois::Component
	Component (std::string const &instance)

virtual	~Component ()

std::shared_ptr< Comp >	addSubComponent (std::string const &instance, Args &&...args)

void	removeSubComponent (std::shared_ptr< Comp > &component)

void	removeSubComponent (std::string const &instance, bool warnIfNotFound=true)

std::shared_ptr< Comp >	getSubComponent (std::string const &instance) const

bool	isTopLevel () const

bool	initialized () const

std::string const &	className () const

std::string const &	instanceName () const

std::vector< std::string >	setParamVal (std::string const &paramdescriptor, T const &val)

void	setParamValUnique (std::string const &paramdescriptor, T const &val)

std::vector< std::pair< std::string, T > >	getParamVal (std::string const &paramdescriptor) const

T	getParamValUnique (std::string const &paramdescriptor) const

std::vector< std::string >	setParamString (std::string const &paramdescriptor, std::string const &val)

void	setParamStringUnique (std::string const &paramdescriptor, std::string const &val)

std::vector< std::pair< std::string, std::string > >	getParamString (std::string const &paramdescriptor) const

std::string	getParamStringUnique (std::string const &paramdescriptor) const

void	freezeParam (std::string const &paramdescriptor, bool doit)

void	freezeAllParams (bool doit)

std::string	descriptor () const

void	setParamsFromFile (std::string const &filename)

std::istream &	setParamsFromStream (std::istream &is, std::string const &absfile)

virtual void	paramInfo (std::shared_ptr< UserInterface > s, std::map< std::string, std::string > &categs, bool skipFrozen, std::string const &cname="", std::string const &pfx="")

void	foreachParam (std::function< void(std::string const &compname, ParameterBase *p)> func, std::string const &cname="")

std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ParameterCategory const &category)

std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ValidValuesSpec< T > const &validValuesSpec, ParameterCategory const &category)

void	setDynamicParameterCallback (std::string const &name, std::function< void(T const &)> cb, bool callnow=true)

void	removeDynamicParameter (std::string const &name, bool throw_if_not_found=true)

void	setPath (std::string const &path)

std::filesystem::path	absolutePath (std::filesystem::path const &path="")

std::shared_ptr< Comp >	addSubComponent (std::string const &instance, Args &&...args)

void	removeSubComponent (std::shared_ptr< Comp > &component)

void	removeSubComponent (std::string const &instance, bool warnIfNotFound=true)

std::shared_ptr< Comp >	getSubComponent (std::string const &instance) const

bool	isTopLevel () const

bool	initialized () const

std::string const &	className () const

std::string const &	instanceName () const

std::vector< std::string >	setParamVal (std::string const &paramdescriptor, T const &val)

void	setParamValUnique (std::string const &paramdescriptor, T const &val)

std::vector< std::pair< std::string, T > >	getParamVal (std::string const &paramdescriptor) const

T	getParamValUnique (std::string const &paramdescriptor) const

std::vector< std::string >	setParamString (std::string const &paramdescriptor, std::string const &val)

void	setParamStringUnique (std::string const &paramdescriptor, std::string const &val)

std::vector< std::pair< std::string, std::string > >	getParamString (std::string const &paramdescriptor) const

std::string	getParamStringUnique (std::string const &paramdescriptor) const

void	freezeParam (std::string const &paramdescriptor, bool doit)

void	freezeAllParams (bool doit)

std::string	descriptor () const

void	setParamsFromFile (std::string const &filename)

std::istream &	setParamsFromStream (std::istream &is, std::string const &absfile)

virtual void	paramInfo (std::shared_ptr< UserInterface > s, std::map< std::string, std::string > &categs, bool skipFrozen, std::string const &cname="", std::string const &pfx="")

void	foreachParam (std::function< void(std::string const &compname, ParameterBase *p)> func, std::string const &cname="")

std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ParameterCategory const &category)

std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ValidValuesSpec< T > const &validValuesSpec, ParameterCategory const &category)

void	setDynamicParameterCallback (std::string const &name, std::function< void(T const &)> cb, bool callnow=true)

void	removeDynamicParameter (std::string const &name, bool throw_if_not_found=true)

void	setPath (std::string const &path)

std::filesystem::path	absolutePath (std::filesystem::path const &path="")

Public Member Functions inherited from jevois::ParameterRegistry
virtual	~ParameterRegistry ()

Additional Inherited Members
Protected Member Functions inherited from jevois::dnn::PostProcessorDetect
void	onParamChange (postprocessor::detecttype const &param, postprocessor::DetectType const &val) override

void	onParamChange (postprocessor::classes const &param, std::string const &val) override

Protected Member Functions inherited from jevois::Component
virtual void	preInit ()

virtual void	postInit ()

virtual void	preUninit ()

virtual void	postUninit ()

virtual void	preInit ()

virtual void	postInit ()

virtual void	preUninit ()

virtual void	postUninit ()

Protected Member Functions inherited from jevois::ParameterRegistry
void	addParameter (ParameterBase *const param)

void	removeParameter (ParameterBase *const param)

void	callbackInitCall ()

Protected Attributes inherited from jevois::dnn::PostProcessorDetect
std::map< int, std::string >	itsLabels

std::vector< ObjDetect >	itsDetections

cv::Size	itsImageSize

std::shared_ptr< PostProcessorDetectYOLO >	itsYOLO

Detailed Description

Definition at line 29 of file CustomDNN.C.

Constructor & Destructor Documentation

◆ ~MyPostProc()

virtual MyPostProc::~MyPostProc ( )

inlinevirtual

Definition at line 36 of file CustomDNN.C.

Member Function Documentation

◆ getDetections()

std::vector< jevois::ObjDetect > const & MyPostProc::getDetections ( )

inline

Definition at line 43 of file CustomDNN.C.

References jevois::dnn::PostProcessorDetect::itsDetections.

The documentation for this class was generated from the following file:

src/Modules/CustomDNN/CustomDNN.C
