#include <jevois/GPU/GUIserial.H>

Simple class to monitor a serial port in the JeVois-Pro GUI.

This class opens a window and displays traffic on a given serial port. Its interface is the same as a regular Serial (or its parent, UserInterface), with the addition of a draw() function to render into a window managed by the caller.

Definition at line 33 of file GUIserial.H.

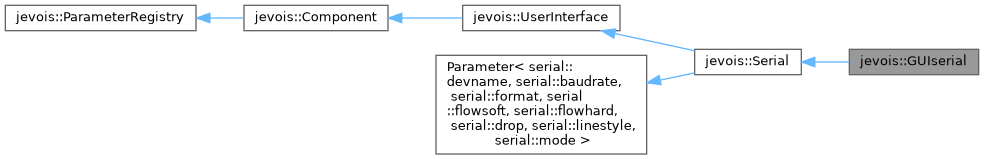

Inheritance diagram for jevois::GUIserial:

[legend]

Collaboration diagram for jevois::GUIserial:

[legend]

Public Member Functions
virtual	~GUIserial ()
	Virtual destructor for safe inheritance.

bool	readSome (std::string &str) override
	Read some bytes if available, and return true and a string when one is complete.

void	writeString (std::string const &str) override
	Write a string, using the line termination convention of serial::linestyle.

void	draw ()
	Render into ImGui.

	Serial (std::string const &instance, UserInterface::Type type)
	Inherited constructor ok.

Public Member Functions inherited from jevois::Serial
	Serial (std::string const &instance, UserInterface::Type type)
	Constructor.

virtual	~Serial ()
	destructor

void	setBlocking (bool blocking, std::chrono::milliseconds const &timeout)
	Set the access to blocking or not.

void	toggleDTR (std::chrono::milliseconds const &dur)
	Set the DTR mode off momentarily.

void	sendBreak (void)
	transmit continuous stream of zero-valued bits for specific duration.

bool	readSome (std::string &str) override
	Read some bytes if available, and return true and a string when one is complete.

void	writeString (std::string const &str) override
	Write a string, using the line termination convention of serial::linestyle.

void	fileGet (std::string const &abspath)
	Send a file from the local microSD to the host computer.

void	filePut (std::string const &abspath)
	Receive a file from the host and write it to the local microSD.

void	flush (void)
	Flush all inputs.

UserInterface::Type	type () const override
	Return our port type, here Hard or USB.

Public Member Functions inherited from jevois::UserInterface
	UserInterface (std::string const &instance)
	Constructor.

virtual	~UserInterface ()
	Destructor.

virtual void	writeString (std::string const &prefix, std::string const &str)
	Write a string, with a prefix prepended.

Public Member Functions inherited from jevois::Component
	Component (std::string const &instance)
	Constructor.

virtual	~Component ()
	Virtual destructor for safe inheritance.

template<class Comp , typename... Args>
std::shared_ptr< Comp >	addSubComponent (std::string const &instance, Args &&...args)
	Pseudo-constructor: construct and add another component as a subcomponent of this one.

template<class Comp >
void	removeSubComponent (std::shared_ptr< Comp > &component)
	Remove a sub-Component from this Component, by shared_ptr.

void	removeSubComponent (std::string const &instance, bool warnIfNotFound=true)
	Remove a sub-Component from this Component, by instance name.

template<class Comp = jevois::Component>
std::shared_ptr< Comp >	getSubComponent (std::string const &instance) const
	Get a sub-component by instance name.

bool	isTopLevel () const
	Returns true if this component is top-level, i.e., its parent is jevois::Manager.

bool	initialized () const
	Has this component been initialized yet?

std::string const &	className () const
	The class name of this component.

std::string const &	instanceName () const
	The instance name of this component.

template<typename T >
std::vector< std::string >	setParamVal (std::string const &paramdescriptor, T const &val)
	Set a parameter value.

template<typename T >
void	setParamValUnique (std::string const &paramdescriptor, T const &val)
	Set a parameter value, simple version assuming only one parameter match.

template<typename T >
std::vector< std::pair< std::string, T > >	getParamVal (std::string const &paramdescriptor) const
	Get parameter(s) value(s) by descriptor.

template<typename T >
T	getParamValUnique (std::string const &paramdescriptor) const
	Get a parameter value, simple version assuming only one parameter match.

std::vector< std::string >	setParamString (std::string const &paramdescriptor, std::string const &val)
	Set a parameter value, by string.

void	setParamStringUnique (std::string const &paramdescriptor, std::string const &val)
	Set a parameter value by string, simple version assuming only one parameter match.

std::vector< std::pair< std::string, std::string > >	getParamString (std::string const &paramdescriptor) const
	Get a parameter value, by string.

std::string	getParamStringUnique (std::string const &paramdescriptor) const
	Get a parameter value by string, simple version assuming only one parameter match.

void	freezeParam (std::string const &paramdescriptor, bool doit)
	Freeze/unfreeze a parameter, by name, see ParameterBase::freeze()

void	freezeAllParams (bool doit)
	Freeze all parameters.

std::string	descriptor () const
	Get our full descriptor (including all parents) as [Instancename]:[...]:[...].

void	setParamsFromFile (std::string const &filename)
	Set some parameters from a file.

std::istream &	setParamsFromStream (std::istream &is, std::string const &absfile)
	Set some parameters from an open stream.

virtual void	paramInfo (std::shared_ptr< UserInterface > s, std::map< std::string, std::string > &categs, bool skipFrozen, std::string const &cname="", std::string const &pfx="")
	Get machine-oriented descriptions of all parameters.

void	foreachParam (std::function< void(std::string const &compname, ParameterBase *p)> func, std::string const &cname="")
	Run a function on every param we hold.

template<typename T >
std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ParameterCategory const &category)
	Add a new parameter after the Component has already been constructed.

template<typename T , template< typename > class ValidValuesSpec>
std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ValidValuesSpec< T > const &validValuesSpec, ParameterCategory const &category)
	Add a new parameter after the Component has already been constructed.

template<typename T >
void	setDynamicParameterCallback (std::string const &name, std::function< void(T const &)> cb, bool callnow=true)
	Register a callback with a previously created dynamic parameter.

void	removeDynamicParameter (std::string const &name, bool throw_if_not_found=true)
	Remove a previously added dynamic parameter.

void	setPath (std::string const &path)
	Assign a filesystem path to this component.

std::filesystem::path	absolutePath (std::filesystem::path const &path="")
	If given path is relative (not starting with /), prepend the Component path to it.

Public Member Functions inherited from jevois::ParameterRegistry
virtual	~ParameterRegistry ()
	Virtual destructor for safe inheritance.

Protected Member Functions
void	clear ()
	Clear the contents of the window.

Protected Member Functions inherited from jevois::Serial
void	postInit () override
	Called after all sub-Components are init()ed.

void	postUninit () override
	Called after all sub-Components are uninit()ed.

Protected Member Functions inherited from jevois::Component
virtual void	preInit ()
	Called before all sub-Components are init()ed.

virtual void	preUninit ()
	Called before all sub-Components are uninit()ed.

Protected Member Functions inherited from jevois::ParameterRegistry
void	addParameter (ParameterBase *const param)
	The Parameter class uses this method to register itself on construction with its owning Component.

void	removeParameter (ParameterBase *const param)
	The Parameter class uses this method to un-register itself on destruction with its owning Component.

void	callbackInitCall ()
	For all parameters that have a callback which has never been called, call it with the default param value.

Additional Inherited Members
Public Types inherited from jevois::UserInterface
enum class	Type { Hard , USB , Stdio , GUI }
	Enum for the interface type. More...

Related Symbols inherited from jevois::Serial
	JEVOIS_DECLARE_PARAMETER (devname, std::string, "Device file name", "", ParamCateg)
	Parameter.

	JEVOIS_DECLARE_PARAMETER (baudrate, unsigned int, "Baudrate", 115200, { 110, 300, 600, 1200, 2400, 4800, 9600, 14400, 19200, 38400, 57600, 115200, 230400, 460800, 921600, 1000000, 1152000, 1500000, 2000000, 2500000, 3000000, 3500000, 4000000 }, ParamCateg)
	Parameter.

	JEVOIS_DECLARE_PARAMETER (format, std::string, "Data format", "8N1", boost::regex("^[5-8][NEO][12]$"), ParamCateg)
	Parameter.

	JEVOIS_DECLARE_PARAMETER (flowsoft, bool, "Use soft (XON/XOFF) flow control", false, ParamCateg)
	Parameter.

	JEVOIS_DECLARE_PARAMETER (flowhard, bool, "Use hard (RTS/CTS) flow control", false, ParamCateg)
	Parameter.

	JEVOIS_DECLARE_PARAMETER (drop, bool, "Silently drop write data when write buffer is full. Useful to " "avoid blocking when writing messages to serial-over-USB port and the host is " "not listening to it. Note that even when drop is false, we will still drop " "data after repeated attempts to send it, and will report an error (as opposed to " "silently dropping when drop is true).", true, ParamCateg)
	Parameter.

	JEVOIS_DEFINE_ENUM_CLASS (LineStyle,(LF)(CR)(CRLF)(Zero)(Sloppy))
	Enum for Parameter.

	JEVOIS_DECLARE_PARAMETER (linestyle, LineStyle, "End of line style: LF is for 0x0a [\\n] CR is for 0x0d [\\r] " "CRLF is for 0x0d 0x0a [\\r\\n] Zero is for 0x00 [\\0] Sloppy accepts any of " "CR, LF, CRLF, 0xd0 (issued by some keyboards instead of Return), and Zero as input " "and issues CRLF in outputs.", LineStyle::Sloppy, LineStyle_Values, ParamCateg)
	Parameter.

	JEVOIS_DEFINE_ENUM_CLASS (TerminalMode,(Plain)(VT100))
	Enum for Parameter.

	JEVOIS_DECLARE_PARAMETER (mode, TerminalMode, "Terminal emulation mode for input", TerminalMode::Plain, TerminalMode_Values, ParamCateg)
	Parameter.

Constructor & Destructor Documentation

◆ ~GUIserial()

jevois::GUIserial::~GUIserial ( )

virtual

Virtual destructor for safe inheritance.

Definition at line 23 of file GUIserial.C.

Member Function Documentation

◆ clear()

void jevois::GUIserial::clear ( )

protected

Clear the contents of the window.

Definition at line 126 of file GUIserial.C.

◆ draw()

void jevois::GUIserial::draw ( )

Render into ImGui.

Render into a window that was already opened and will be closed by the caller.

Definition at line 56 of file GUIserial.C.

References jevois::stringStartsWith().

◆ readSome()

bool jevois::GUIserial::readSome ( std::string & str )

overridevirtual

Read some bytes if available, and return true and a string when one is complete.

If the monitor window is open, anything read will also be displayed in the window.

Implements jevois::UserInterface.

Definition at line 27 of file GUIserial.C.

References jevois::Serial::readSome().

◆ Serial()

jevois::Serial::Serial	(	std::string const &	instance,
		UserInterface::Type	type
	)

Inherited constructor ok.

Definition at line 91 of file Serial.C.

References SERTHROW.

◆ writeString()

void jevois::GUIserial::writeString ( std::string const & str )

overridevirtual

Write a string, using the line termination convention of serial::linestyle.

No line terminator should be included in the string, writeString() will add one. If the monitor window is open, anything written will also be displayed in the window.

Implements jevois::UserInterface.

Definition at line 42 of file GUIserial.C.

References jevois::Serial::writeString().

The documentation for this class was generated from the following files:

include/jevois/GPU/GUIserial.H
src/jevois/GPU/GUIserial.C
