#include <jevois/Core/MovieOutput.H>

Video output to a movie file, using OpenCV video encoding.

This video output mode saved output frames to a file (or series of files). It is useful when developing new algorithms to check the correctness of generated outputs offline, or to save some documentation/demo movies of a module.

Definition at line 33 of file MovieOutput.H.

Inheritance diagram for jevois::MovieOutput:

[legend]

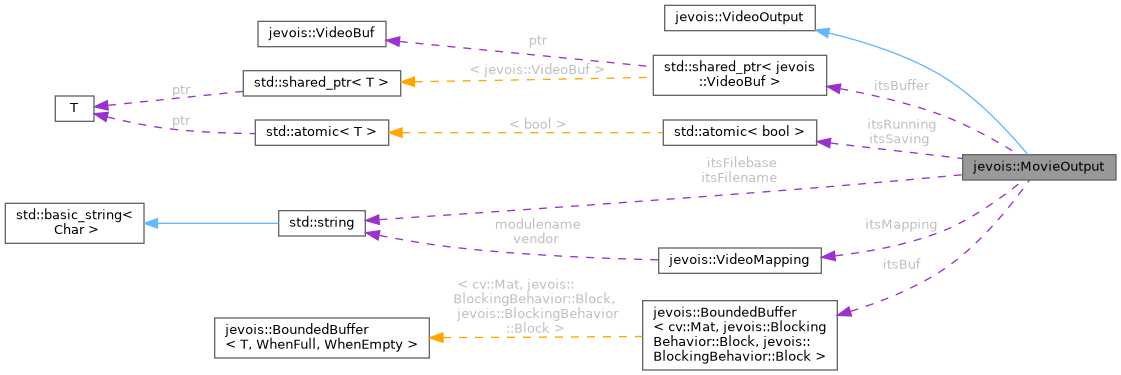

Collaboration diagram for jevois::MovieOutput:

[legend]

Public Member Functions
	MovieOutput (std::string const &fn)
	Constructor. More...

virtual	~MovieOutput ()
	Virtual destructor for safe inheritance. More...

virtual void	setFormat (VideoMapping const &m) override
	Set the video format and frame rate. More...

virtual void	get (RawImage &img) override
	Get a pre-allocated image so that we can fill the pixel data and later send out using send() More...

virtual void	send (RawImage const &img) override
	Send an image out. More...

virtual void	streamOn () override
	Start streaming. More...

virtual void	abortStream () override
	Abort streaming. More...

virtual void	streamOff () override
	Stop streaming. More...

Public Member Functions inherited from jevois::VideoOutput
virtual	~VideoOutput ()
	Virtual destructor for safe inheritance. More...

Protected Member Functions
void	run ()
	Use a thread to encode and save frames. More...

Protected Attributes
std::shared_ptr< VideoBuf >	itsBuffer
	Our single video buffer. More...

VideoMapping	itsMapping
	Our current video mapping, we resize the input to the mapping's camera dims. More...

std::future< void >	itsRunFut
	Future for our run() thread. More...

jevois::BoundedBuffer< cv::Mat, jevois::BlockingBehavior::Block, jevois::BlockingBehavior::Block >	itsBuf
	Buffer of frames to encode and write to file. More...

std::atomic< bool >	itsSaving
	True when we are saving to file. More...

int	itsFileNum
	File number, gets incremented on each streamOff() to avoid overwriting previous files. More...

std::atomic< bool >	itsRunning
	True when our run() thread should keep running. More...

std::string	itsFilename
	Current file name to save video to. More...

std::string	itsFilebase
	Current file base to save video to. More...

Constructor & Destructor Documentation

◆ MovieOutput()

jevois::MovieOutput::MovieOutput ( std::string const & fn )

Constructor.

Definition at line 32 of file MovieOutput.C.

References jevois::async(), itsRunFut, and run().

◆ ~MovieOutput()

jevois::MovieOutput::~MovieOutput ( )

virtual

Virtual destructor for safe inheritance.

Definition at line 39 of file MovieOutput.C.

References LERROR, LINFO, jevois::system(), and jevois::warnAndIgnoreException().

Member Function Documentation

◆ abortStream()

void jevois::MovieOutput::abortStream ( )

overridevirtual

Abort streaming.

This only cancels future get() and send() calls, one should still call streamOff() to turn off streaming.

Implements jevois::VideoOutput.

Definition at line 102 of file MovieOutput.C.

◆ get()

void jevois::MovieOutput::get ( RawImage & img )

overridevirtual

Get a pre-allocated image so that we can fill the pixel data and later send out using send()

May throw if not buffer is available, i.e., all have been queued to send but have not yet been sent. Application code must balance exactly one send() for each get().

Implements jevois::VideoOutput.

Definition at line 63 of file MovieOutput.C.

References jevois::RawImage::buf, jevois::RawImage::bufindex, jevois::RawImage::fmt, jevois::RawImage::fps, jevois::RawImage::height, LFATAL, and jevois::RawImage::width.

◆ run()

void jevois::MovieOutput::run ( )

protected

Use a thread to encode and save frames.

Definition at line 127 of file MovieOutput.C.

References LFATAL.

Referenced by MovieOutput().

◆ send()

void jevois::MovieOutput::send ( RawImage const & img )

overridevirtual

Send an image out.

May throw if the format is incorrect or std::overflow_error if we have not yet consumed the previous image.

Implements jevois::VideoOutput.

Definition at line 81 of file MovieOutput.C.

References jevois::rawimage::convertToCvBGR(), LERROR, and LFATAL.

◆ setFormat()

void jevois::MovieOutput::setFormat ( VideoMapping const & m )

overridevirtual

Set the video format and frame rate.

Implements jevois::VideoOutput.

Definition at line 56 of file MovieOutput.C.

◆ streamOff()

void jevois::MovieOutput::streamOff ( )

overridevirtual

Stop streaming.

Implements jevois::VideoOutput.

Definition at line 108 of file MovieOutput.C.

References LERROR, LINFO, and jevois::system().

◆ streamOn()

void jevois::MovieOutput::streamOn ( )

overridevirtual

Start streaming.

Implements jevois::VideoOutput.

Definition at line 96 of file MovieOutput.C.

Member Data Documentation

◆ itsBuf

jevois::BoundedBuffer<cv::Mat, jevois::BlockingBehavior::Block, jevois::BlockingBehavior::Block> jevois::MovieOutput::itsBuf

protected

Buffer of frames to encode and write to file.

Definition at line 71 of file MovieOutput.H.

◆ itsBuffer

std::shared_ptr<VideoBuf> jevois::MovieOutput::itsBuffer

protected

Our single video buffer.

Definition at line 65 of file MovieOutput.H.

◆ itsFilebase

std::string jevois::MovieOutput::itsFilebase

protected

Current file base to save video to.

Definition at line 76 of file MovieOutput.H.

◆ itsFilename

std::string jevois::MovieOutput::itsFilename

protected

Current file name to save video to.

Definition at line 75 of file MovieOutput.H.

◆ itsFileNum

int jevois::MovieOutput::itsFileNum

protected

File number, gets incremented on each streamOff() to avoid overwriting previous files.

Definition at line 73 of file MovieOutput.H.

◆ itsMapping

VideoMapping jevois::MovieOutput::itsMapping

protected

Our current video mapping, we resize the input to the mapping's camera dims.

Definition at line 66 of file MovieOutput.H.

◆ itsRunFut

std::future<void> jevois::MovieOutput::itsRunFut

protected

Future for our run() thread.

Definition at line 69 of file MovieOutput.H.

Referenced by MovieOutput().

◆ itsRunning

std::atomic<bool> jevois::MovieOutput::itsRunning

protected

True when our run() thread should keep running.

Definition at line 74 of file MovieOutput.H.

◆ itsSaving

std::atomic<bool> jevois::MovieOutput::itsSaving

protected

True when we are saving to file.

Definition at line 72 of file MovieOutput.H.

The documentation for this class was generated from the following files:

include/jevois/Core/MovieOutput.H
src/jevois/Core/MovieOutput.C
