#include <jevois/DNN/PostProcessorClassify.H>

Post-Processor for neural network pipeline.

This is the last step in a deep neural network processing Pipeline.

Definition at line 29 of file PostProcessorClassify.H.

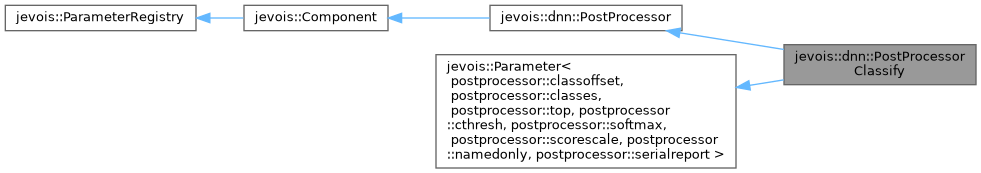

Inheritance diagram for jevois::dnn::PostProcessorClassify:

[legend]

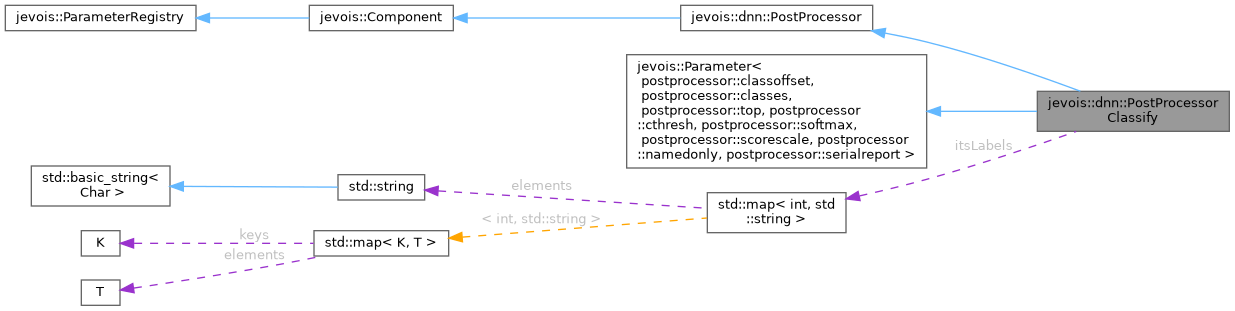

Collaboration diagram for jevois::dnn::PostProcessorClassify:

[legend]

Public Member Functions
virtual	~PostProcessorClassify ()
	Destructor.

void	freeze (bool doit) override
	Freeze/unfreeze parameters that users should not change while running.

void	process (std::vector< cv::Mat > const &outs, PreProcessor *preproc) override
	Process outputs and draw/send some results.

void	report (jevois::StdModule mod, jevois::RawImage outimg=nullptr, jevois::OptGUIhelper *helper=nullptr, bool overlay=true, bool idle=false) override
	Report what happened in last process() to console/output video/GUI.

std::vector< ObjReco > const &	latestRecognitions () const
	Get the latest recognition results, use with caution, not thread-safe.

Public Member Functions inherited from jevois::dnn::PostProcessor
virtual	~PostProcessor ()
	Destructor.

Public Member Functions inherited from jevois::Component
	Component (std::string const &instance)
	Constructor.

virtual	~Component ()
	Virtual destructor for safe inheritance.

template<class Comp , typename... Args>
std::shared_ptr< Comp >	addSubComponent (std::string const &instance, Args &&...args)
	Pseudo-constructor: construct and add another component as a subcomponent of this one.

template<class Comp >
void	removeSubComponent (std::shared_ptr< Comp > &component)
	Remove a sub-Component from this Component, by shared_ptr.

void	removeSubComponent (std::string const &instance, bool warnIfNotFound=true)
	Remove a sub-Component from this Component, by instance name.

template<class Comp = jevois::Component>
std::shared_ptr< Comp >	getSubComponent (std::string const &instance) const
	Get a sub-component by instance name.

bool	isTopLevel () const
	Returns true if this component is top-level, i.e., its parent is jevois::Manager.

bool	initialized () const
	Has this component been initialized yet?

std::string const &	className () const
	The class name of this component.

std::string const &	instanceName () const
	The instance name of this component.

template<typename T >
std::vector< std::string >	setParamVal (std::string const &paramdescriptor, T const &val)
	Set a parameter value.

template<typename T >
void	setParamValUnique (std::string const &paramdescriptor, T const &val)
	Set a parameter value, simple version assuming only one parameter match.

template<typename T >
std::vector< std::pair< std::string, T > >	getParamVal (std::string const &paramdescriptor) const
	Get parameter(s) value(s) by descriptor.

template<typename T >
T	getParamValUnique (std::string const &paramdescriptor) const
	Get a parameter value, simple version assuming only one parameter match.

std::vector< std::string >	setParamString (std::string const &paramdescriptor, std::string const &val)
	Set a parameter value, by string.

void	setParamStringUnique (std::string const &paramdescriptor, std::string const &val)
	Set a parameter value by string, simple version assuming only one parameter match.

std::vector< std::pair< std::string, std::string > >	getParamString (std::string const &paramdescriptor) const
	Get a parameter value, by string.

std::string	getParamStringUnique (std::string const &paramdescriptor) const
	Get a parameter value by string, simple version assuming only one parameter match.

void	freezeParam (std::string const &paramdescriptor, bool doit)
	Freeze/unfreeze a parameter, by name, see ParameterBase::freeze()

void	freezeAllParams (bool doit)
	Freeze all parameters.

std::string	descriptor () const
	Get our full descriptor (including all parents) as [Instancename]:[...]:[...].

void	setParamsFromFile (std::string const &filename)
	Set some parameters from a file.

std::istream &	setParamsFromStream (std::istream &is, std::string const &absfile)
	Set some parameters from an open stream.

virtual void	paramInfo (std::shared_ptr< UserInterface > s, std::map< std::string, std::string > &categs, bool skipFrozen, std::string const &cname="", std::string const &pfx="")
	Get machine-oriented descriptions of all parameters.

void	foreachParam (std::function< void(std::string const &compname, ParameterBase *p)> func, std::string const &cname="")
	Run a function on every param we hold.

template<typename T >
std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ParameterCategory const &category)
	Add a new parameter after the Component has already been constructed.

template<typename T , template< typename > class ValidValuesSpec>
std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ValidValuesSpec< T > const &validValuesSpec, ParameterCategory const &category)
	Add a new parameter after the Component has already been constructed.

template<typename T >
void	setDynamicParameterCallback (std::string const &name, std::function< void(T const &)> cb, bool callnow=true)
	Register a callback with a previously created dynamic parameter.

void	removeDynamicParameter (std::string const &name, bool throw_if_not_found=true)
	Remove a previously added dynamic parameter.

void	setPath (std::string const &path)
	Assign a filesystem path to this component.

std::filesystem::path	absolutePath (std::filesystem::path const &path="")
	If given path is relative (not starting with /), prepend the Component path to it.

Public Member Functions inherited from jevois::ParameterRegistry
virtual	~ParameterRegistry ()
	Virtual destructor for safe inheritance.

Protected Member Functions
void	onParamChange (postprocessor::classes const &param, std::string const &val) override

Protected Member Functions inherited from jevois::Component
virtual void	preInit ()
	Called before all sub-Components are init()ed.

virtual void	postInit ()
	Called after all sub-Components are init()ed.

virtual void	preUninit ()
	Called before all sub-Components are uninit()ed.

virtual void	postUninit ()
	Called after all sub-Components are uninit()ed.

Protected Member Functions inherited from jevois::ParameterRegistry
void	addParameter (ParameterBase *const param)
	The Parameter class uses this method to register itself on construction with its owning Component.

void	removeParameter (ParameterBase *const param)
	The Parameter class uses this method to un-register itself on destruction with its owning Component.

void	callbackInitCall ()
	For all parameters that have a callback which has never been called, call it with the default param value.

Protected Attributes
std::map< int, std::string >	itsLabels
	Mapping from object ID to class name.

Related Symbols
(Note that these are not member symbols.)
	JEVOIS_DECLARE_PARAMETER (classoffset, int, "Offset added to model output when looking up class name. Useful if " "your model uses a background class but your class file does not (use -1), or if your " "model does not use a background class but your class file has one (use 1). If unsure, " "use 0 and check whether reported class names are off.", 0, ParamCateg)
	Parameter.

	JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK (classes, std::string, "Path to text file with names of object classes", "", ParamCateg)
	Parameter.

	JEVOIS_DECLARE_PARAMETER (top, unsigned int, "Max number of top-scoring predictions that score above " "threshold to report", 5, ParamCateg)
	Parameter.

	JEVOIS_DECLARE_PARAMETER (cthresh, float, "Classification threshold (in percent confidence) above which " "predictions will be reported", 20.0F, jevois::Range< float >(0.0F, 100.0F), ParamCateg)
	Parameter.

	JEVOIS_DECLARE_PARAMETER (softmax, bool, "Apply a softmax to classification outputs", false, ParamCateg)
	Parameter.

	JEVOIS_DECLARE_PARAMETER (scorescale, float, "Scaling factors applied to recognition scores. Mainly " "for debugging if your scores seem too high or too low. If too high, usually " "that means that you should turn on parameter softmax instead.", 1.0F, ParamCateg)
	Parameter.

	JEVOIS_DECLARE_PARAMETER (boxclamp, bool, "Clamp detection boxes to fit within the input image. Good to avoid " "having boxes that extend beyond the display and to be able to see object labels " "even on boxes that start at negative coordinates but will artificially reduce " "the size of detections that extend beyond the display", true, ParamCateg)
	Parameter.

	JEVOIS_DECLARE_PARAMETER (serialreport, bool, "Send classification or detection results to serial port", true, ParamCateg)
	Parameter.

Constructor & Destructor Documentation

◆ ~PostProcessorClassify()

jevois::dnn::PostProcessorClassify::~PostProcessorClassify ( )

virtual

Destructor.

Definition at line 27 of file PostProcessorClassify.C.

Member Function Documentation

◆ freeze()

void jevois::dnn::PostProcessorClassify::freeze ( bool doit )

overridevirtual

Freeze/unfreeze parameters that users should not change while running.

Implements jevois::dnn::PostProcessor.

Definition at line 31 of file PostProcessorClassify.C.

◆ latestRecognitions()

std::vector< jevois::ObjReco > const & jevois::dnn::PostProcessorClassify::latestRecognitions ( ) const

Get the latest recognition results, use with caution, not thread-safe.

This returns a reference to our internal vector of recognitions. That vector will get overwritten every time process() is called. It is ok to use this after you have called process() on a given frame, or, if using a Pipeline, after you have called Pipeline::process(). Do not hold this ref past the end of the current video frame. If you need to keep a persistent copy of the data, make a deep copy of the vector.

Definition at line 134 of file PostProcessorClassify.C.

◆ onParamChange()

void jevois::dnn::PostProcessorClassify::onParamChange	(	postprocessor::classes const &	param,
		std::string const &	val
	)

overrideprotected

Definition at line 37 of file PostProcessorClassify.C.

References jevois::absolutePath(), JEVOIS_SHARE_PATH, and jevois::dnn::readLabelsFile().

◆ process()

void jevois::dnn::PostProcessorClassify::process	(	std::vector< cv::Mat > const &	outs,
		PreProcessor *	preproc
	)

overridevirtual

Process outputs and draw/send some results.

Implements jevois::dnn::PostProcessor.

Definition at line 44 of file PostProcessorClassify.C.

References jevois::dnn::getLabel(), LERROR, LFATAL, o, jevois::dnn::softmax(), and jevois::dnn::topK().

◆ report()

void jevois::dnn::PostProcessorClassify::report	(	jevois::StdModule *	mod,
		jevois::RawImage *	outimg = `nullptr`,
		jevois::OptGUIhelper *	helper = `nullptr`,
		bool	overlay = `true`,
		bool	idle = `false`
	)

overridevirtual

Report what happened in last process() to console/output video/GUI.

Implements jevois::dnn::PostProcessor.

Definition at line 83 of file PostProcessorClassify.C.

References jevois::GUIhelper::itext(), o, jevois::StdModule::sendSerialObjReco(), jevois::sformat(), jevois::yuyv::White, and jevois::rawimage::writeText().

Friends And Related Symbol Documentation

◆ JEVOIS_DECLARE_PARAMETER() [1/7]

JEVOIS_DECLARE_PARAMETER	(	boxclamp	,
		bool	,
		"Clamp detection boxes to fit within the input image. Good to avoid " "having boxes that extend beyond the display and to be able to see object labels " "even on boxes that start at negative coordinates but will artificially reduce " "the size of detections that extend beyond the display"	,
		true	,
		ParamCateg
	)

◆ JEVOIS_DECLARE_PARAMETER() [2/7]

JEVOIS_DECLARE_PARAMETER	(	classoffset	,
		int	,
		"Offset added to model output when looking up class name. Useful if " "your model uses a background class but your class file does not	use -1,
		or if your " "model does not use a background class but your class file has one(use 1). If	unsure,
		" "use 0 and check whether reported class names are off."	,
		0	,
		ParamCateg
	)

◆ JEVOIS_DECLARE_PARAMETER() [3/7]

JEVOIS_DECLARE_PARAMETER	(	cthresh	,
		float	,
		"Classification threshold (in percent confidence) above which " "predictions will be reported"	,
		20.	0F,
		jevois::Range< float >	0.0F, 100.0F,
		ParamCateg
	)

◆ JEVOIS_DECLARE_PARAMETER() [4/7]

JEVOIS_DECLARE_PARAMETER	(	scorescale	,
		float	,
		"Scaling factors applied to recognition scores. Mainly " "for debugging if your scores seem too high or too low. If too	high,
		usually " "that means that you should turn on parameter softmax instead."	,
		1.	0F,
		ParamCateg
	)

◆ JEVOIS_DECLARE_PARAMETER() [5/7]

JEVOIS_DECLARE_PARAMETER	(	serialreport	,
		bool	,
		"Send classification or detection results to serial port"	,
		true	,
		ParamCateg
	)

◆ JEVOIS_DECLARE_PARAMETER() [6/7]

JEVOIS_DECLARE_PARAMETER	(	softmax	,
		bool	,
		"Apply a softmax to classification outputs"	,
		false	,
		ParamCateg
	)

◆ JEVOIS_DECLARE_PARAMETER() [7/7]

JEVOIS_DECLARE_PARAMETER	(	top	,
		unsigned int	,
		"Max number of top-scoring predictions that score above " "threshold to report"	,
		5	,
		ParamCateg
	)

◆ JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK()

JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK	(	classes	,
		std::string	,
		"Path to text file with names of object classes"	,
		""	,
		ParamCateg
	)

Member Data Documentation

◆ itsLabels

std::map<int, std::string> jevois::dnn::PostProcessorClassify::itsLabels

protected

Mapping from object ID to class name.

Definition at line 62 of file PostProcessorClassify.H.

The documentation for this class was generated from the following files:

include/jevois/DNN/PostProcessorClassify.H
include/jevois/DNN/PostProcessor.H
src/jevois/DNN/PostProcessorClassify.C
