Combined ArUco marker + multiple color-based object detection. More...

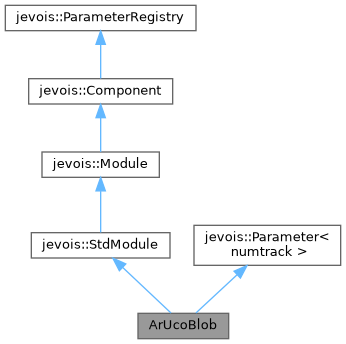

Inheritance diagram for ArUcoBlob:

[legend]

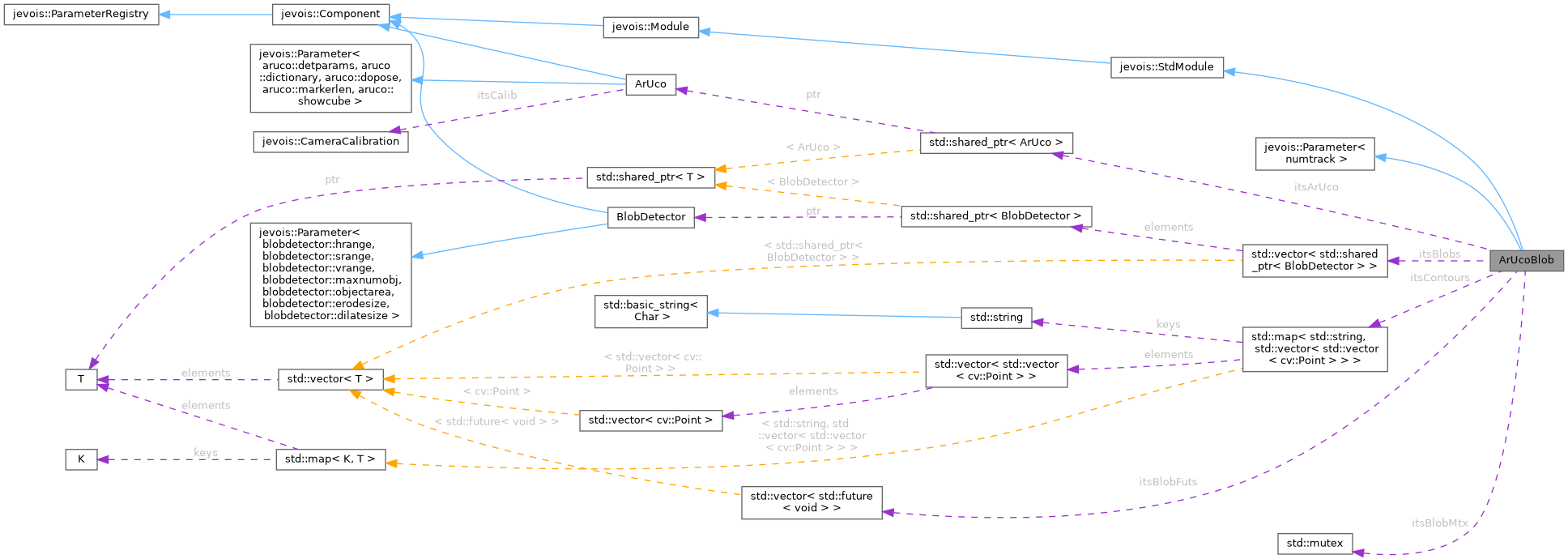

Collaboration diagram for ArUcoBlob:

[legend]

Public Member Functions
	ArUcoBlob (std::string const &instance)
	Constructor.

void	postInit () override
	Post-init: instantiate the blob detectors.

void	preUninit () override

virtual	~ArUcoBlob ()
	Virtual destructor for safe inheritance.

void	detectBlobs ()
	Detect blobs in parallel threads.

void	sendBlobs (unsigned int w, unsigned int h)
	Gather our blob threads and send/draw the results.

void	detectArUco (cv::Mat cvimg, std::vector< int > &ids, std::vector< std::vector< cv::Point2f > > &corners, std::vector< cv::Vec3d > &rvecs, std::vector< cv::Vec3d > &tvecs, unsigned int h, jevois::RawImage *outimg=nullptr)
	Detect ArUcos.

virtual void	process (jevois::InputFrame &&inframe) override
	Processing function, no USB video output.

virtual void	process (jevois::InputFrame &&inframe, jevois::OutputFrame &&outframe) override
	Processing function, with USB video output.

Public Member Functions inherited from jevois::StdModule
	StdModule (std::string const &instance)

virtual	~StdModule ()

void	sendSerialImg1Dx (unsigned int camw, float x, float size=0.0F, std::string const &id="", std::string const &extra="")

void	sendSerialStd1Dx (float x, float size=0.0F, std::string const &id="", std::string const &extra="")

void	sendSerialImg1Dy (unsigned int camh, float y, float size=0.0F, std::string const &id="", std::string const &extra="")

void	sendSerialStd1Dy (float y, float size=0.0F, std::string const &id="", std::string const &extra="")

void	sendSerialImg2D (unsigned int camw, unsigned int camh, float x, float y, float w=0.0F, float h=0.0F, std::string const &id="", std::string const &extra="")

void	sendSerialStd2D (float x, float y, float w=0.0F, float h=0.0F, std::string const &id="", std::string const &extra="")

void	sendSerialContour2D (unsigned int camw, unsigned int camh, std::vector< cv::Point_< T > > points, std::string const &id="", std::string const &extra="")

void	sendSerialStd3D (float x, float y, float z, float w=0.0F, float h=0.0F, float d=0.0F, float q1=0.0F, float q2=0.0F, float q3=0.0f, float q4=0.0F, std::string const &id="", std::string const &extra="")

void	sendSerialStd3D (std::vector< cv::Point3f > points, std::string const &id="", std::string const &extra="")

void	sendSerialObjReco (std::vector< ObjReco > const &res)

void	sendSerialObjDetImg2D (unsigned int camw, unsigned int camh, float x, float y, float w, float h, std::vector< ObjReco > const &res)

void	sendSerialObjDetImg2D (unsigned int camw, unsigned int camh, ObjDetect const &det)

void	sendSerialObjDetImg2D (unsigned int camw, unsigned int camh, ObjDetectOBB const &det)

	JEVOIS_DEFINE_ENUM_CLASS (SerStyle,(Terse)(Normal)(Detail)(Fine))

	JEVOIS_DECLARE_PARAMETER (serstyle, SerStyle, "Style for standardized serial messages as defined in " "http://jevois.org/doc/UserSerialStyle.html", SerStyle::Terse, SerStyle_Values, ParamCateg)

	JEVOIS_DECLARE_PARAMETER (serprec, unsigned int, "Number of decimal points in standardized serial messages as " "defined in http://jevois.org/doc/UserSerialStyle.html", 0U, jevois::Range< unsigned int >(0U, 10U), ParamCateg)

	JEVOIS_DEFINE_ENUM_CLASS (SerStamp,(None)(Frame)(Time)(FrameTime)(FrameDateTime))

	JEVOIS_DECLARE_PARAMETER (serstamp, SerStamp, "Prepend standardized serial messages with a frame number, " "time, frame+time, or frame+date+time. See details in " "http://jevois.org/doc/UserSerialStyle.html", SerStamp::None, SerStamp_Values, ParamCateg)

	JEVOIS_DEFINE_ENUM_CLASS (SerMark,(None)(Start)(Stop)(Both))

	JEVOIS_DECLARE_PARAMETER (sermark, SerMark, "Send serial message to mark the beginning (MARK START) of the " "processing of a video frame from the camera sensor, the end (MARK STOP), or both. " "Useful, among others, if one needs to know when no results were sent over serial " "on a given frame. Combine with parameter serstamp if you need to know the frame number.", SerMark::None, SerMark_Values, ParamCateg)

Public Member Functions inherited from jevois::Module
	Module (std::string const &instance)

virtual	~Module ()

virtual void	process (InputFrame &&inframe, GUIhelper &helper)

virtual void	sendSerial (std::string const &str)

virtual void	parseSerial (std::string const &str, std::shared_ptr< UserInterface > s)

virtual void	supportedCommands (std::ostream &os)

Public Member Functions inherited from jevois::Component
	Component (std::string const &instance)

virtual	~Component ()

std::shared_ptr< Comp >	addSubComponent (std::string const &instance, Args &&...args)

void	removeSubComponent (std::shared_ptr< Comp > &component)

void	removeSubComponent (std::string const &instance, bool warnIfNotFound=true)

std::shared_ptr< Comp >	getSubComponent (std::string const &instance) const

bool	isTopLevel () const

bool	initialized () const

std::string const &	className () const

std::string const &	instanceName () const

std::vector< std::string >	setParamVal (std::string const &paramdescriptor, T const &val)

void	setParamValUnique (std::string const &paramdescriptor, T const &val)

std::vector< std::pair< std::string, T > >	getParamVal (std::string const &paramdescriptor) const

T	getParamValUnique (std::string const &paramdescriptor) const

std::vector< std::string >	setParamString (std::string const &paramdescriptor, std::string const &val)

void	setParamStringUnique (std::string const &paramdescriptor, std::string const &val)

std::vector< std::pair< std::string, std::string > >	getParamString (std::string const &paramdescriptor) const

std::string	getParamStringUnique (std::string const &paramdescriptor) const

void	freezeParam (std::string const &paramdescriptor, bool doit)

void	freezeAllParams (bool doit)

std::string	descriptor () const

void	setParamsFromFile (std::string const &filename)

std::istream &	setParamsFromStream (std::istream &is, std::string const &absfile)

virtual void	paramInfo (std::shared_ptr< UserInterface > s, std::map< std::string, std::string > &categs, bool skipFrozen, std::string const &cname="", std::string const &pfx="")

void	foreachParam (std::function< void(std::string const &compname, ParameterBase *p)> func, std::string const &cname="")

std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ParameterCategory const &category)

std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ValidValuesSpec< T > const &validValuesSpec, ParameterCategory const &category)

void	setDynamicParameterCallback (std::string const &name, std::function< void(T const &)> cb, bool callnow=true)

void	removeDynamicParameter (std::string const &name, bool throw_if_not_found=true)

void	setPath (std::string const &path)

std::filesystem::path	absolutePath (std::filesystem::path const &path="")

std::shared_ptr< Comp >	addSubComponent (std::string const &instance, Args &&...args)

void	removeSubComponent (std::shared_ptr< Comp > &component)

void	removeSubComponent (std::string const &instance, bool warnIfNotFound=true)

std::shared_ptr< Comp >	getSubComponent (std::string const &instance) const

bool	isTopLevel () const

bool	initialized () const

std::string const &	className () const

std::string const &	instanceName () const

std::vector< std::string >	setParamVal (std::string const &paramdescriptor, T const &val)

void	setParamValUnique (std::string const &paramdescriptor, T const &val)

std::vector< std::pair< std::string, T > >	getParamVal (std::string const &paramdescriptor) const

T	getParamValUnique (std::string const &paramdescriptor) const

std::vector< std::string >	setParamString (std::string const &paramdescriptor, std::string const &val)

void	setParamStringUnique (std::string const &paramdescriptor, std::string const &val)

std::vector< std::pair< std::string, std::string > >	getParamString (std::string const &paramdescriptor) const

std::string	getParamStringUnique (std::string const &paramdescriptor) const

void	freezeParam (std::string const &paramdescriptor, bool doit)

void	freezeAllParams (bool doit)

std::string	descriptor () const

void	setParamsFromFile (std::string const &filename)

std::istream &	setParamsFromStream (std::istream &is, std::string const &absfile)

virtual void	paramInfo (std::shared_ptr< UserInterface > s, std::map< std::string, std::string > &categs, bool skipFrozen, std::string const &cname="", std::string const &pfx="")

void	foreachParam (std::function< void(std::string const &compname, ParameterBase *p)> func, std::string const &cname="")

std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ParameterCategory const &category)

std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ValidValuesSpec< T > const &validValuesSpec, ParameterCategory const &category)

void	setDynamicParameterCallback (std::string const &name, std::function< void(T const &)> cb, bool callnow=true)

void	removeDynamicParameter (std::string const &name, bool throw_if_not_found=true)

void	setPath (std::string const &path)

std::filesystem::path	absolutePath (std::filesystem::path const &path="")

Public Member Functions inherited from jevois::ParameterRegistry
virtual	~ParameterRegistry ()

Protected Attributes
std::shared_ptr< ArUco >	itsArUco

std::vector< std::shared_ptr< BlobDetector > >	itsBlobs

cv::Mat	itsImgHsv

std::map< std::string, std::vector< std::vector< cv::Point > > >	itsContours

std::vector< std::future< void > >	itsBlobFuts

std::mutex	itsBlobMtx

Related Symbols
(Note that these are not member symbols.)
	JEVOIS_DECLARE_PARAMETER (numtrack, size_t, "Number of parallel blob trackers to run. They will be named blob0, " "blob1, etc for parameters and serial messages", 3, ParamCateg)
	Parameter.

Additional Inherited Members
Protected Member Functions inherited from jevois::StdModule
void	sendSerialMarkStart ()

void	sendSerialMarkStop ()

std::string	getStamp () const

Protected Member Functions inherited from jevois::Component
virtual void	preInit ()

virtual void	postUninit ()

virtual void	preInit ()

virtual void	postUninit ()

Protected Member Functions inherited from jevois::ParameterRegistry
void	addParameter (ParameterBase *const param)

void	removeParameter (ParameterBase *const param)

void	callbackInitCall ()

Detailed Description

Combined ArUco marker + multiple color-based object detection.

This modules 1) detects ArUco markers (small black-and-white geometric patterns which can be used as tags for some objects), and, in parallel, 2) isolates pixels within multiple given HSV ranges (hue, saturation, and value of color pixels), does some cleanups, and extracts object contours. It sends information about detected ArUco tags and color objects over serial.

This module was developed to allow students to easily develop visually-guided robots that can at the same time detect ArUco markers placed in the environment to signal certain key objects (e.g., charging station, home base) and colored objects of different kinds (e.g., blue people, green trees, and yellow fires).

This module usually works best with the camera sensor set to manual exposure, manual gain, manual color balance, etc so that HSV color values are reliable. See the file script.cfg file in this module's directory for an example of how to set the camera settings each time this module is loaded.

Since this is a combination module, refer to:

DemoArUco for the ArUco algorithm and messages
ObjectTracker for the blob detection algorithm and messages

The number of parallel blob trackers is determined by parameter numtrack, which should be set before the module is initialized, i.e., in the module's params.cfg file. It cannot be changed while the module is running.

The module runs at about 50 frames/s with 3 parallel blob detectors plus ArUco, at 320x240 camera sensor resolution. Increasing to 10 parallel blob detectors will still get you about 25 frames/s (but finding robust non-overlapping HSV ranges for all those detectors will become challenging!)

To configure parameters hrange, srange, and vrange for each detector in the module's scrip.cfg, we recommend that you do it one by one for each kind of colored object you want, using the ObjectTracker module (which shares the same color blob detection code, just for one HSV range) and the tutorial on Tuning the color-based object tracker using a python graphical interface, or the sliders in JeVois Inventor. Just make sure that both modules have the same camera settings in their respective script.cfg files.

Using the serial outputs

We recommend the following settings (to apply after you load the module, for example in the module's script.cfg file):

setpar serout USB      # to send to serial-over-USB, or use Hard to send to 4-pin serial port
setpar serstyle Normal # to get ID, center location, size for every detected color blob and ArUco tag
setpar serstamp Frame  # to add video frame number to all messages

With a scene as shown in this module's screenshots, you would then get outputs like:

...
1557 N2 U42 -328 -9 706 569
1557 N2 U18 338 -241 613 444
1557 N2 blob0 616 91 406 244
1557 N2 blob1 28 584 881 331
1557 N2 blob2 47 -553 469 206
1558 N2 U42 -328 -9 706 569
1558 N2 U18 338 -241 613 444
1558 N2 blob0 547 113 519 275
1558 N2 blob1 28 581 881 338
1558 N2 blob2 47 -553 469 206
1559 N2 U42 -331 -13 700 563
1559 N2 U18 338 -244 613 450
1559 N2 blob0 369 153 200 194
1559 N2 blob0 616 94 381 250
1559 N2 blob1 28 581 881 338
1559 N2 blob2 47 -553 469 206
...

which basically means that, on frame 1557, ArUco markers U42 and U18 were detected, then blob detector named "blob0" (configured for light blue objects in script.cfg) detected one blob, then "blob1" (configured for yellow) also detected one, and finally "blob2" (configured for green) found one too. That was all for frame 1157, and we then switch to frame 1158 (with essentially the same detections), then frame 1159 (note how blob0 detected 2 different blobs on that frame), and so on. See Standardized serial messages formatting for more info about these messages.

See Standardized serial messages formatting for more on standardized serial messages, and Helper functions to convert coordinates from camera resolution to standardized for more info on standardized coordinates.

Running with no video output (standalone mode)

Try these settings in the global initialization script file of JeVois, which is executed when JeVois powers up, in JEVOIS:/config/initscript.cfg:

setmapping2 YUYV 320 240 45.0 JeVois ArUcoBlob # to select this module upon power up
setpar serout Hard     # to send detection messages to 4-pin serial port
setpar serstyle Normal # to get ID, center location, size
setpar serstamp Frame  # to add video frame number to all messages
streamon               # start capturing and processing camera sensor data

Make sure you do not have conflicting settings in the module's params.cfg or script.cfg file; as a reminder, the order of execution is: 1) initscript.cfg runs, which loads the module through the setmapping2 command; 2) as part of the loading process and before the module is initialized, settings in params.cfg are applied; 3) the module is then initialized and commands in script.cfg are run; 4) the additional commands following setmapping2 in initscript.cfg are finally run. Next time JeVois starts up, it will automatically load this module and start sending messages to the hardware 4-pin serial port, which you should then connect to an Arduino or other robot controller.

Author: Laurent Itti

Display Name:: ArUco Blob

Videomapping:: YUYV 320 266 30.0 YUYV 320 240 30.0 JeVois ArUcoBlob

Videomapping:: NONE 0 0 0.0 YUYV 320 240 30.0 JeVois ArUcoBlob

Email:: itti@usc.edu

Address:: University of Southern California, HNB-07A, 3641 Watt Way, Los Angeles, CA 90089-2520, USA

Copyright: Copyright (C) 2018 by Laurent Itti, iLab and the University of Southern California

Main URL:: http://jevois.org

Support URL:: http://jevois.org/doc

Other URL:: http://iLab.usc.edu

License:: GPL v3

Distribution:: Unrestricted

Restrictions:: None

Definition at line 150 of file ArUcoBlob.C.

Constructor & Destructor Documentation

◆ ArUcoBlob()

ArUcoBlob::ArUcoBlob ( std::string const & instance )

inline

Constructor.

Definition at line 157 of file ArUcoBlob.C.

References itsArUco.

◆ ~ArUcoBlob()

virtual ArUcoBlob::~ArUcoBlob ( )

inlinevirtual

Virtual destructor for safe inheritance.

Definition at line 187 of file ArUcoBlob.C.

Member Function Documentation

◆ detectArUco()

void ArUcoBlob::detectArUco	(	cv::Mat	cvimg,
		std::vector< int > &	ids,
		std::vector< std::vector< cv::Point2f > > &	corners,
		std::vector< cv::Vec3d > &	rvecs,
		std::vector< cv::Vec3d > &	tvecs,
		unsigned int	h,
		jevois::RawImage *	outimg = `nullptr`
	)

inline

Detect ArUcos.

Definition at line 224 of file ArUcoBlob.C.

References h, and itsArUco.

Referenced by process(), and process().

◆ detectBlobs()

void ArUcoBlob::detectBlobs ( )

inline

Detect blobs in parallel threads.

Definition at line 192 of file ArUcoBlob.C.

References jevois::async(), itsBlobFuts, itsBlobs, and itsContours.

Referenced by process(), and process().

◆ postInit()

void ArUcoBlob::postInit ( )

inlineoverridevirtual

Post-init: instantiate the blob detectors.

Reimplemented from jevois::Component.

Definition at line 167 of file ArUcoBlob.C.

References itsBlobs.

◆ preUninit()

void ArUcoBlob::preUninit ( )

inlineoverridevirtual

Reimplemented from jevois::Component.

Definition at line 178 of file ArUcoBlob.C.

References itsBlobs, and jevois::Component::removeSubComponent().

◆ process() [1/2]

virtual void ArUcoBlob::process ( jevois::InputFrame && inframe )

inlineoverridevirtual

Processing function, no USB video output.

Reimplemented from jevois::Module.

Definition at line 240 of file ArUcoBlob.C.

References jevois::rawimage::convertToCvBGR(), jevois::rawimage::convertToCvGray(), detectArUco(), detectBlobs(), h, jevois::RawImage::height, itsArUco, itsImgHsv, sendBlobs(), and jevois::RawImage::width.

◆ process() [2/2]

virtual void ArUcoBlob::process	(	jevois::InputFrame &&	inframe,
		jevois::OutputFrame &&	outframe
	)

inlineoverridevirtual

Processing function, with USB video output.

Reimplemented from jevois::Module.

Definition at line 272 of file ArUcoBlob.C.

References area(), jevois::async(), jevois::rawimage::convertToCvBGR(), jevois::rawimage::convertToCvGray(), jevois::rawimage::cvImage(), detectArUco(), detectBlobs(), jevois::rawimage::drawCircle(), jevois::rawimage::drawFilledRect(), jevois::RawImage::fmt, h, jevois::RawImage::height, itsArUco, itsContours, itsImgHsv, jevois::rawimage::paste(), jevois::RawImage::require(), sendBlobs(), jevois::Timer::start(), jevois::Timer::stop(), jevois::yuyv::White, jevois::RawImage::width, and jevois::rawimage::writeText().

◆ sendBlobs()

void ArUcoBlob::sendBlobs	(	unsigned int	w,
		unsigned int	h
	)

inline

Gather our blob threads and send/draw the results.

Definition at line 209 of file ArUcoBlob.C.

References h, itsBlobFuts, itsContours, LERROR, and jevois::StdModule::sendSerialContour2D().

Referenced by process(), and process().

Friends And Related Symbol Documentation

◆ JEVOIS_DECLARE_PARAMETER()

JEVOIS_DECLARE_PARAMETER	(	numtrack	,
		size_t	,
		"Number of parallel blob trackers to run. They will be named	blob0,
		" "	blob1,
		etc for parameters and serial messages"	,
		3	,
		ParamCateg
	)

Member Data Documentation

◆ itsArUco

std::shared_ptr<ArUco> ArUcoBlob::itsArUco

protected

Definition at line 355 of file ArUcoBlob.C.

Referenced by ArUcoBlob(), detectArUco(), process(), and process().

◆ itsBlobFuts

std::vector<std::future<void> > ArUcoBlob::itsBlobFuts

protected

Definition at line 359 of file ArUcoBlob.C.

Referenced by detectBlobs(), and sendBlobs().

◆ itsBlobMtx

std::mutex ArUcoBlob::itsBlobMtx

protected

Definition at line 360 of file ArUcoBlob.C.

◆ itsBlobs

std::vector<std::shared_ptr<BlobDetector> > ArUcoBlob::itsBlobs

protected

Definition at line 356 of file ArUcoBlob.C.

Referenced by detectBlobs(), postInit(), and preUninit().

◆ itsContours

std::map<std::string, std::vector<std::vector<cv::Point> > > ArUcoBlob::itsContours

protected

Definition at line 358 of file ArUcoBlob.C.

Referenced by detectBlobs(), process(), and sendBlobs().

◆ itsImgHsv

cv::Mat ArUcoBlob::itsImgHsv

protected

Definition at line 357 of file ArUcoBlob.C.

Referenced by process(), and process().

The documentation for this class was generated from the following file:

src/Modules/ArUcoBlob/ArUcoBlob.C

Public Member Functions

Protected Attributes

Related Symbols

Additional Inherited Members

Detailed Description

Using the serial outputs

Running with no video output (standalone mode)

Constructor & Destructor Documentation

◆ ArUcoBlob()

◆ ~ArUcoBlob()

Member Function Documentation

◆ detectArUco()

◆ detectBlobs()

◆ postInit()

◆ preUninit()

◆ process() [1/2]

◆ process() [2/2]

◆ sendBlobs()

Friends And Related Symbol Documentation

◆ JEVOIS_DECLARE_PARAMETER()

Member Data Documentation

◆ itsArUco

◆ itsBlobFuts

◆ itsBlobMtx

◆ itsBlobs

◆ itsContours

◆ itsImgHsv
