Example of modified DNN module with custom post-processing. More...

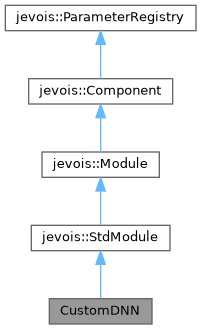

Inheritance diagram for CustomDNN:

[legend]

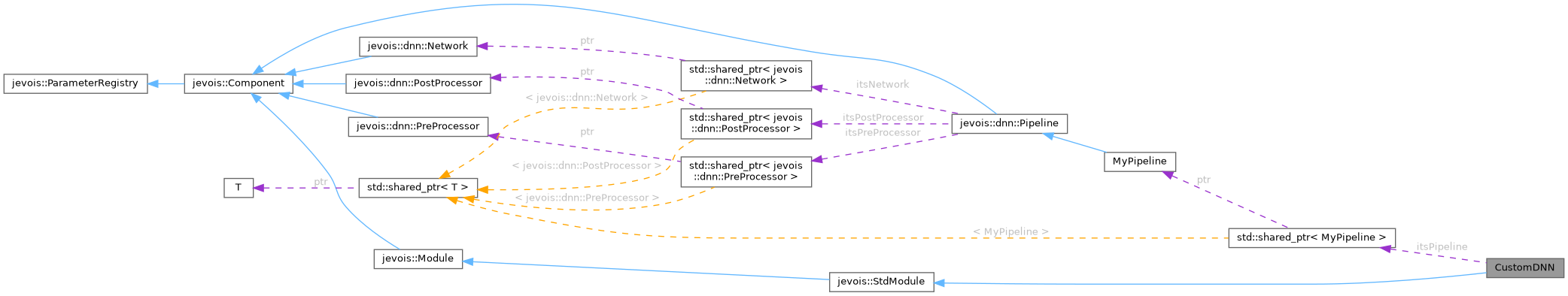

Collaboration diagram for CustomDNN:

[legend]

Public Member Functions
	CustomDNN (std::string const &instance)
	Constructor.

virtual	~CustomDNN ()
	Virtual destructor for safe inheritance.

void	doprocess (jevois::InputFrame const &inframe, jevois::RawImage outimg, jevois::OptGUIhelper helper, bool idle)
	Processing function implementation.

virtual void	process (jevois::InputFrame &&inframe) override
	Processing function, no video output.

virtual void	process (jevois::InputFrame &&inframe, jevois::OutputFrame &&outframe) override
	Processing function with video output to USB on JeVois-A33.

virtual void	process (jevois::InputFrame &&inframe, jevois::GUIhelper &helper) override
	Processing function with zero-copy and GUI on JeVois-Pro.

Public Member Functions inherited from jevois::StdModule
	StdModule (std::string const &instance)

virtual	~StdModule ()

void	sendSerialImg1Dx (unsigned int camw, float x, float size=0.0F, std::string const &id="", std::string const &extra="")

void	sendSerialStd1Dx (float x, float size=0.0F, std::string const &id="", std::string const &extra="")

void	sendSerialImg1Dy (unsigned int camh, float y, float size=0.0F, std::string const &id="", std::string const &extra="")

void	sendSerialStd1Dy (float y, float size=0.0F, std::string const &id="", std::string const &extra="")

void	sendSerialImg2D (unsigned int camw, unsigned int camh, float x, float y, float w=0.0F, float h=0.0F, std::string const &id="", std::string const &extra="")

void	sendSerialStd2D (float x, float y, float w=0.0F, float h=0.0F, std::string const &id="", std::string const &extra="")

void	sendSerialContour2D (unsigned int camw, unsigned int camh, std::vector< cv::Point_< T > > points, std::string const &id="", std::string const &extra="")

void	sendSerialStd3D (float x, float y, float z, float w=0.0F, float h=0.0F, float d=0.0F, float q1=0.0F, float q2=0.0F, float q3=0.0f, float q4=0.0F, std::string const &id="", std::string const &extra="")

void	sendSerialStd3D (std::vector< cv::Point3f > points, std::string const &id="", std::string const &extra="")

void	sendSerialObjReco (std::vector< ObjReco > const &res)

void	sendSerialObjDetImg2D (unsigned int camw, unsigned int camh, float x, float y, float w, float h, std::vector< ObjReco > const &res)

void	sendSerialObjDetImg2D (unsigned int camw, unsigned int camh, ObjDetect const &det)

void	sendSerialObjDetImg2D (unsigned int camw, unsigned int camh, ObjDetectOBB const &det)

	JEVOIS_DEFINE_ENUM_CLASS (SerStyle,(Terse)(Normal)(Detail)(Fine))

	JEVOIS_DECLARE_PARAMETER (serstyle, SerStyle, "Style for standardized serial messages as defined in " "http://jevois.org/doc/UserSerialStyle.html", SerStyle::Terse, SerStyle_Values, ParamCateg)

	JEVOIS_DECLARE_PARAMETER (serprec, unsigned int, "Number of decimal points in standardized serial messages as " "defined in http://jevois.org/doc/UserSerialStyle.html", 0U, jevois::Range< unsigned int >(0U, 10U), ParamCateg)

	JEVOIS_DEFINE_ENUM_CLASS (SerStamp,(None)(Frame)(Time)(FrameTime)(FrameDateTime))

	JEVOIS_DECLARE_PARAMETER (serstamp, SerStamp, "Prepend standardized serial messages with a frame number, " "time, frame+time, or frame+date+time. See details in " "http://jevois.org/doc/UserSerialStyle.html", SerStamp::None, SerStamp_Values, ParamCateg)

	JEVOIS_DEFINE_ENUM_CLASS (SerMark,(None)(Start)(Stop)(Both))

	JEVOIS_DECLARE_PARAMETER (sermark, SerMark, "Send serial message to mark the beginning (MARK START) of the " "processing of a video frame from the camera sensor, the end (MARK STOP), or both. " "Useful, among others, if one needs to know when no results were sent over serial " "on a given frame. Combine with parameter serstamp if you need to know the frame number.", SerMark::None, SerMark_Values, ParamCateg)

Public Member Functions inherited from jevois::Module
	Module (std::string const &instance)

virtual	~Module ()

virtual void	sendSerial (std::string const &str)

virtual void	parseSerial (std::string const &str, std::shared_ptr< UserInterface > s)

virtual void	supportedCommands (std::ostream &os)

Public Member Functions inherited from jevois::Component
	Component (std::string const &instance)

virtual	~Component ()

std::shared_ptr< Comp >	addSubComponent (std::string const &instance, Args &&...args)

void	removeSubComponent (std::shared_ptr< Comp > &component)

void	removeSubComponent (std::string const &instance, bool warnIfNotFound=true)

std::shared_ptr< Comp >	getSubComponent (std::string const &instance) const

bool	isTopLevel () const

bool	initialized () const

std::string const &	className () const

std::string const &	instanceName () const

std::vector< std::string >	setParamVal (std::string const &paramdescriptor, T const &val)

void	setParamValUnique (std::string const &paramdescriptor, T const &val)

std::vector< std::pair< std::string, T > >	getParamVal (std::string const &paramdescriptor) const

T	getParamValUnique (std::string const &paramdescriptor) const

std::vector< std::string >	setParamString (std::string const &paramdescriptor, std::string const &val)

void	setParamStringUnique (std::string const &paramdescriptor, std::string const &val)

std::vector< std::pair< std::string, std::string > >	getParamString (std::string const &paramdescriptor) const

std::string	getParamStringUnique (std::string const &paramdescriptor) const

void	freezeParam (std::string const &paramdescriptor, bool doit)

void	freezeAllParams (bool doit)

std::string	descriptor () const

void	setParamsFromFile (std::string const &filename)

std::istream &	setParamsFromStream (std::istream &is, std::string const &absfile)

virtual void	paramInfo (std::shared_ptr< UserInterface > s, std::map< std::string, std::string > &categs, bool skipFrozen, std::string const &cname="", std::string const &pfx="")

void	foreachParam (std::function< void(std::string const &compname, ParameterBase *p)> func, std::string const &cname="")

std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ParameterCategory const &category)

std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ValidValuesSpec< T > const &validValuesSpec, ParameterCategory const &category)

void	setDynamicParameterCallback (std::string const &name, std::function< void(T const &)> cb, bool callnow=true)

void	removeDynamicParameter (std::string const &name, bool throw_if_not_found=true)

void	setPath (std::string const &path)

std::filesystem::path	absolutePath (std::filesystem::path const &path="")

std::shared_ptr< Comp >	addSubComponent (std::string const &instance, Args &&...args)

void	removeSubComponent (std::shared_ptr< Comp > &component)

void	removeSubComponent (std::string const &instance, bool warnIfNotFound=true)

std::shared_ptr< Comp >	getSubComponent (std::string const &instance) const

bool	isTopLevel () const

bool	initialized () const

std::string const &	className () const

std::string const &	instanceName () const

std::vector< std::string >	setParamVal (std::string const &paramdescriptor, T const &val)

void	setParamValUnique (std::string const &paramdescriptor, T const &val)

std::vector< std::pair< std::string, T > >	getParamVal (std::string const &paramdescriptor) const

T	getParamValUnique (std::string const &paramdescriptor) const

std::vector< std::string >	setParamString (std::string const &paramdescriptor, std::string const &val)

void	setParamStringUnique (std::string const &paramdescriptor, std::string const &val)

std::vector< std::pair< std::string, std::string > >	getParamString (std::string const &paramdescriptor) const

std::string	getParamStringUnique (std::string const &paramdescriptor) const

void	freezeParam (std::string const &paramdescriptor, bool doit)

void	freezeAllParams (bool doit)

std::string	descriptor () const

void	setParamsFromFile (std::string const &filename)

std::istream &	setParamsFromStream (std::istream &is, std::string const &absfile)

virtual void	paramInfo (std::shared_ptr< UserInterface > s, std::map< std::string, std::string > &categs, bool skipFrozen, std::string const &cname="", std::string const &pfx="")

void	foreachParam (std::function< void(std::string const &compname, ParameterBase *p)> func, std::string const &cname="")

std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ParameterCategory const &category)

std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ValidValuesSpec< T > const &validValuesSpec, ParameterCategory const &category)

void	setDynamicParameterCallback (std::string const &name, std::function< void(T const &)> cb, bool callnow=true)

void	removeDynamicParameter (std::string const &name, bool throw_if_not_found=true)

void	setPath (std::string const &path)

std::filesystem::path	absolutePath (std::filesystem::path const &path="")

Public Member Functions inherited from jevois::ParameterRegistry
virtual	~ParameterRegistry ()

Protected Attributes
std::shared_ptr< MyPipeline >	itsPipeline

Additional Inherited Members
Protected Member Functions inherited from jevois::StdModule
void	sendSerialMarkStart ()

void	sendSerialMarkStop ()

std::string	getStamp () const

Protected Member Functions inherited from jevois::Component
virtual void	preInit ()

virtual void	postInit ()

virtual void	preUninit ()

virtual void	postUninit ()

virtual void	preInit ()

virtual void	postInit ()

virtual void	preUninit ()

virtual void	postUninit ()

Protected Member Functions inherited from jevois::ParameterRegistry
void	addParameter (ParameterBase *const param)

void	removeParameter (ParameterBase *const param)

void	callbackInitCall ()

Detailed Description

Example of modified DNN module with custom post-processing.

This example shows you how to customize the JeVois DNN processing framework. Here, we create a custom post-processor that enhances the functionality of PostProcessorDetect by extracting regions of interest for each detected object. For this example, we simply compute an edge map for each detection box and display it as an overlay. Other processing is possible, for example, detected regions of interest could be sent to another neural network for additional processing.

The main goal of this module is as a tutorial for how to implement custom operations within the JeVois DNN framework in C++. The main idea is to create derived classes over Pipeline and PostProcessorDetect.

Author: Laurent Itti

Display Name:: Custom DNN

Videomapping:: JVUI 0 0 30.0 CropScale=RGB24@1024x576:YUYV 1920 1080 30.0 JeVois CustomDNN

Email:: itti@usc.edu

Address:: University of Southern California, HNB-07A, 3641 Watt Way, Los Angeles, CA 90089-2520, USA

Copyright: Copyright (C) 2024 by Laurent Itti, iLab and the University of Southern California

Main URL:: http://jevois.org

Support URL:: http://jevois.org/doc

Other URL:: http://iLab.usc.edu

License:: GPL v3

Distribution:: Unrestricted

Restrictions:: None

Definition at line 122 of file CustomDNN.C.

Constructor & Destructor Documentation

◆ CustomDNN()

CustomDNN::CustomDNN ( std::string const & instance )

inline

Constructor.

Definition at line 128 of file CustomDNN.C.

References itsPipeline.

◆ ~CustomDNN()

virtual CustomDNN::~CustomDNN ( )

inlinevirtual

Virtual destructor for safe inheritance.

Definition at line 137 of file CustomDNN.C.

Member Function Documentation

◆ doprocess()

void CustomDNN::doprocess	(	jevois::InputFrame const &	inframe,
		jevois::RawImage *	outimg,
		jevois::OptGUIhelper *	helper,
		bool	idle
	)

inline

Processing function implementation.

Definition at line 143 of file CustomDNN.C.

References jevois::async(), jevois::GUIhelper::drawCircle(), jevois::GUIhelper::drawImage(), jevois::InputFrame::getCvRGB(), jevois::InputFrame::getp(), jevois::RawImage::height, itsPipeline, LINFO, jevois::StdModule::sendSerialObjDetImg2D(), and jevois::RawImage::width.

Referenced by process(), process(), and process().

◆ process() [1/3]

virtual void CustomDNN::process ( jevois::InputFrame && inframe )

inlineoverridevirtual

Processing function, no video output.

Reimplemented from jevois::Module.

Definition at line 243 of file CustomDNN.C.

References doprocess().

◆ process() [2/3]

virtual void CustomDNN::process	(	jevois::InputFrame &&	inframe,
		jevois::GUIhelper &	helper
	)

inlineoverridevirtual

Processing function with zero-copy and GUI on JeVois-Pro.

Reimplemented from jevois::Module.

Definition at line 281 of file CustomDNN.C.

References doprocess(), jevois::GUIhelper::drawInputFrame(), jevois::GUIhelper::endFrame(), h, jevois::GUIhelper::iinfo(), jevois::Timer::start(), jevois::GUIhelper::startFrame(), and jevois::Timer::stop().

◆ process() [3/3]

virtual void CustomDNN::process	(	jevois::InputFrame &&	inframe,
		jevois::OutputFrame &&	outframe
	)

inlineoverridevirtual

Processing function with video output to USB on JeVois-A33.

Reimplemented from jevois::Module.

Definition at line 253 of file CustomDNN.C.

References doprocess(), jevois::RawImage::fmt, h, jevois::RawImage::height, jevois::rawimage::paste(), jevois::RawImage::require(), and jevois::RawImage::width.

Member Data Documentation

◆ itsPipeline

std::shared_ptr<MyPipeline> CustomDNN::itsPipeline

protected

Definition at line 313 of file CustomDNN.C.

Referenced by CustomDNN(), and doprocess().

The documentation for this class was generated from the following file:

src/Modules/CustomDNN/CustomDNN.C
