DemoArUco Class Reference

Simple demo of ArUco and AprilTag augmented reality markers detection and decoding. More...

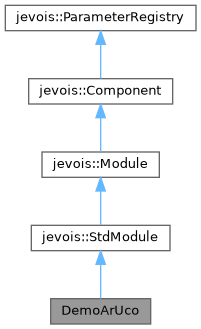

Inheritance diagram for DemoArUco:

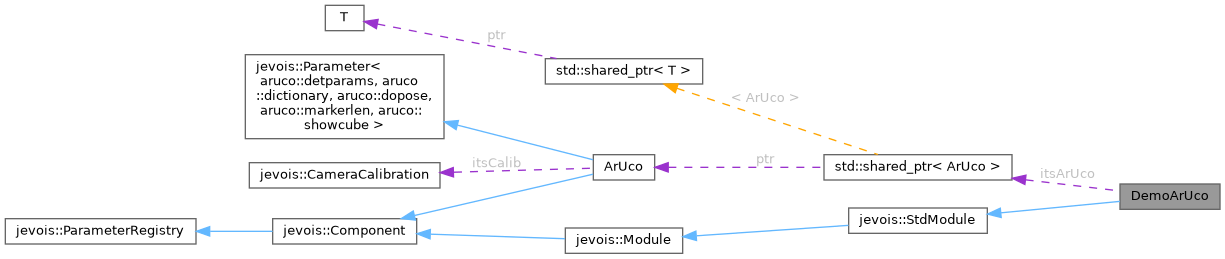

Collaboration diagram for DemoArUco:

Public Member Functions
	DemoArUco (std::string const &instance)
	Constructor.
virtual	~DemoArUco ()
	Virtual destructor for safe inheritance.
virtual void	process (jevois::InputFrame &&inframe) override
	Processing function, no video output.
virtual void	process (jevois::InputFrame &&inframe, jevois::OutputFrame &&outframe) override
	Processing function with video output to USB.
virtual void	process (jevois::InputFrame &&inframe, jevois::GUIhelper &helper) override
	Processing function with zero-copy and GUI on JeVois-Pro.
Public Member Functions inherited from jevois::StdModule
	StdModule (std::string const &instance)
virtual	~StdModule ()
void	sendSerialImg1Dx (unsigned int camw, float x, float size=0.0F, std::string const &id="", std::string const &extra="")
void	sendSerialStd1Dx (float x, float size=0.0F, std::string const &id="", std::string const &extra="")
void	sendSerialImg1Dy (unsigned int camh, float y, float size=0.0F, std::string const &id="", std::string const &extra="")
void	sendSerialStd1Dy (float y, float size=0.0F, std::string const &id="", std::string const &extra="")
void	sendSerialImg2D (unsigned int camw, unsigned int camh, float x, float y, float w=0.0F, float h=0.0F, std::string const &id="", std::string const &extra="")
void	sendSerialStd2D (float x, float y, float w=0.0F, float h=0.0F, std::string const &id="", std::string const &extra="")
void	sendSerialContour2D (unsigned int camw, unsigned int camh, std::vector< cv::Point_< T > > points, std::string const &id="", std::string const &extra="")
void	sendSerialStd3D (float x, float y, float z, float w=0.0F, float h=0.0F, float d=0.0F, float q1=0.0F, float q2=0.0F, float q3=0.0f, float q4=0.0F, std::string const &id="", std::string const &extra="")
void	sendSerialStd3D (std::vector< cv::Point3f > points, std::string const &id="", std::string const &extra="")
void	sendSerialObjReco (std::vector< ObjReco > const &res)
void	sendSerialObjDetImg2D (unsigned int camw, unsigned int camh, float x, float y, float w, float h, std::vector< ObjReco > const &res)
void	sendSerialObjDetImg2D (unsigned int camw, unsigned int camh, ObjDetect const &det)
void	sendSerialObjDetImg2D (unsigned int camw, unsigned int camh, ObjDetectOBB const &det)
	JEVOIS_DEFINE_ENUM_CLASS (SerStyle,(Terse)(Normal)(Detail)(Fine))
	JEVOIS_DECLARE_PARAMETER (serstyle, SerStyle, "Style for standardized serial messages as defined in " "http://jevois.org/doc/UserSerialStyle.html", SerStyle::Terse, SerStyle_Values, ParamCateg)
	JEVOIS_DECLARE_PARAMETER (serprec, unsigned int, "Number of decimal points in standardized serial messages as " "defined in http://jevois.org/doc/UserSerialStyle.html", 0U, jevois::Range< unsigned int >(0U, 10U), ParamCateg)
	JEVOIS_DEFINE_ENUM_CLASS (SerStamp,(None)(Frame)(Time)(FrameTime)(FrameDateTime))
	JEVOIS_DECLARE_PARAMETER (serstamp, SerStamp, "Prepend standardized serial messages with a frame number, " "time, frame+time, or frame+date+time. See details in " "http://jevois.org/doc/UserSerialStyle.html", SerStamp::None, SerStamp_Values, ParamCateg)
	JEVOIS_DEFINE_ENUM_CLASS (SerMark,(None)(Start)(Stop)(Both))
	JEVOIS_DECLARE_PARAMETER (sermark, SerMark, "Send serial message to mark the beginning (MARK START) of the " "processing of a video frame from the camera sensor, the end (MARK STOP), or both. " "Useful, among others, if one needs to know when no results were sent over serial " "on a given frame. Combine with parameter serstamp if you need to know the frame number.", SerMark::None, SerMark_Values, ParamCateg)
Public Member Functions inherited from jevois::Module
	Module (std::string const &instance)
virtual	~Module ()
virtual void	sendSerial (std::string const &str)
virtual void	parseSerial (std::string const &str, std::shared_ptr< UserInterface > s)
virtual void	supportedCommands (std::ostream &os)
Public Member Functions inherited from jevois::Component
	Component (std::string const &instance)
virtual	~Component ()
std::shared_ptr< Comp >	addSubComponent (std::string const &instance, Args &&...args)
void	removeSubComponent (std::shared_ptr< Comp > &component)
void	removeSubComponent (std::string const &instance, bool warnIfNotFound=true)
std::shared_ptr< Comp >	getSubComponent (std::string const &instance) const
bool	isTopLevel () const
bool	initialized () const
std::string const &	className () const
std::string const &	instanceName () const
std::vector< std::string >	setParamVal (std::string const &paramdescriptor, T const &val)
void	setParamValUnique (std::string const &paramdescriptor, T const &val)
std::vector< std::pair< std::string, T > >	getParamVal (std::string const &paramdescriptor) const
T	getParamValUnique (std::string const &paramdescriptor) const
std::vector< std::string >	setParamString (std::string const &paramdescriptor, std::string const &val)
void	setParamStringUnique (std::string const &paramdescriptor, std::string const &val)
std::vector< std::pair< std::string, std::string > >	getParamString (std::string const &paramdescriptor) const
std::string	getParamStringUnique (std::string const &paramdescriptor) const
void	freezeParam (std::string const &paramdescriptor, bool doit)
void	freezeAllParams (bool doit)
std::string	descriptor () const
void	setParamsFromFile (std::string const &filename)
std::istream &	setParamsFromStream (std::istream &is, std::string const &absfile)
virtual void	paramInfo (std::shared_ptr< UserInterface > s, std::map< std::string, std::string > &categs, bool skipFrozen, std::string const &cname="", std::string const &pfx="")
void	foreachParam (std::function< void(std::string const &compname, ParameterBase *p)> func, std::string const &cname="")
std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ParameterCategory const &category)
std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ValidValuesSpec< T > const &validValuesSpec, ParameterCategory const &category)
void	setDynamicParameterCallback (std::string const &name, std::function< void(T const &)> cb, bool callnow=true)
void	removeDynamicParameter (std::string const &name, bool throw_if_not_found=true)
void	setPath (std::string const &path)
std::filesystem::path	absolutePath (std::filesystem::path const &path="")
std::shared_ptr< Comp >	addSubComponent (std::string const &instance, Args &&...args)
void	removeSubComponent (std::shared_ptr< Comp > &component)
void	removeSubComponent (std::string const &instance, bool warnIfNotFound=true)
std::shared_ptr< Comp >	getSubComponent (std::string const &instance) const
bool	isTopLevel () const
bool	initialized () const
std::string const &	className () const
std::string const &	instanceName () const
std::vector< std::string >	setParamVal (std::string const &paramdescriptor, T const &val)
void	setParamValUnique (std::string const &paramdescriptor, T const &val)
std::vector< std::pair< std::string, T > >	getParamVal (std::string const &paramdescriptor) const
T	getParamValUnique (std::string const &paramdescriptor) const
std::vector< std::string >	setParamString (std::string const &paramdescriptor, std::string const &val)
void	setParamStringUnique (std::string const &paramdescriptor, std::string const &val)
std::vector< std::pair< std::string, std::string > >	getParamString (std::string const &paramdescriptor) const
std::string	getParamStringUnique (std::string const &paramdescriptor) const
void	freezeParam (std::string const &paramdescriptor, bool doit)
void	freezeAllParams (bool doit)
std::string	descriptor () const
void	setParamsFromFile (std::string const &filename)
std::istream &	setParamsFromStream (std::istream &is, std::string const &absfile)
virtual void	paramInfo (std::shared_ptr< UserInterface > s, std::map< std::string, std::string > &categs, bool skipFrozen, std::string const &cname="", std::string const &pfx="")
void	foreachParam (std::function< void(std::string const &compname, ParameterBase *p)> func, std::string const &cname="")
std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ParameterCategory const &category)
std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ValidValuesSpec< T > const &validValuesSpec, ParameterCategory const &category)
void	setDynamicParameterCallback (std::string const &name, std::function< void(T const &)> cb, bool callnow=true)
void	removeDynamicParameter (std::string const &name, bool throw_if_not_found=true)
void	setPath (std::string const &path)
std::filesystem::path	absolutePath (std::filesystem::path const &path="")
Public Member Functions inherited from jevois::ParameterRegistry
virtual	~ParameterRegistry ()

Protected Attributes
std::shared_ptr< ArUco >	itsArUco

Additional Inherited Members
Protected Member Functions inherited from jevois::StdModule
void	sendSerialMarkStart ()
void	sendSerialMarkStop ()
std::string	getStamp () const
Protected Member Functions inherited from jevois::Component
virtual void	preInit ()
virtual void	postInit ()
virtual void	preUninit ()
virtual void	postUninit ()
virtual void	preInit ()
virtual void	postInit ()
virtual void	preUninit ()
virtual void	postUninit ()
Protected Member Functions inherited from jevois::ParameterRegistry
void	addParameter (ParameterBase *const param)
void	removeParameter (ParameterBase *const param)
void	callbackInitCall ()

Detailed Description

Simple demo of ArUco and AprilTag augmented reality markers detection and decoding.

Detect and decode patterns known as ArUco markers, which are small 2D barcodes often used in augmented reality and robotics.

ArUco and AprilTag markers are small 2D barcodes. Each marker corresponds to a number, encoded into a small grid of black and white pixels. The marker decoding algorithm is capable of locating, decoding, and of estimating the pose (location and orientation in space) of any compatible markers in the camera's field of view.

ArUco and AprilTag markers are very useful as tags for many robotics and augmented reality applications. For example, one may place an ArUco next to a robot's charging station, an elevator button, or an object that a robot should manipulate.

The implementation of ArUco used by JeVois is the one of OpenCV-Contrib, documented here: https://docs.opencv.org/4.x/d5/dae/tutorial_aruco_detection.html

ArUco and AprilTag markers can be created with several standard dictionaries. Different dictionaries give rise to different numbers of pixels in the markers, and to different numbers of possible symbols that can be created using the dictionary. The default dictionary used by JeVois is ArUco 4x4 with 50 symbols. Other dictionaries are also supported by setting the parameter dictionary over serial port or in a config file, up to 7x7 with 1000 symbols.

Creating and printing markers

We have created the 50 markers available in the default ArUco dictionary (4x4_50) as PNG images that you can download and print, at http://jevois.org/data/ArUco.zip

To make your own, for example, using another dictionary, see the documentation of the ArUco component of JeVoisBase. Some utilities are provided with the component.

Serial Messages

This module can send standardized serial messages as described in Standardized serial messages formatting.

When dopose is turned on, 3D messages will be sent, otherwise 2D messages.

One message is issued for every detected ArUco, on every video frame.

2D messages when dopose is off:

• Serial message type: 2D
• id: decoded ArUco marker ID, with a prefix 'U'
• x, y, or vertices: standardized 2D coordinates of marker center or corners
• w, h: standardized marker size
• extra: none (empty string)

3D messages when dopose is on:

• Serial message type: 3D
• id: decoded ArUco marker ID, with a prefix 'U'
• x, y, z, or vertices: 3D coordinates in millimeters of marker center or corners
• w, h, d: marker size in millimeters, a depth of 1mm is always used
• extra: none (empty string)

If you will use the quaternion data (Detail message style; see Standardized serial messages formatting), you should probably set the serprec parameter to something non-zero to get enough accuracy in the quaternion values.

See Standardized serial messages formatting for more on standardized serial messages, and Helper functions to convert coordinates from camera resolution to standardized for more info on standardized coordinates.

Things to try

• First, use a video viewer software on a host computer and select one of the video modes with video output over USB. Point your JeVois camera towards one of the screenshots provided with this module, or towards some ArUco markers that you find on the web or that you have printed from the collection above (note: the default dictionary is 4x4_50, see parameter dictionary).
• Then try it with no video output, as it would be used by a robot. Connect to the command-line interface of your JeVois camera through the serial-over-USB connection (see Command-line interface user guide; on Linux, you would use sudo screen /dev/ttyACM0 115200) and try:

    setpar serout USB
    setmapping2 YUYV 320 240 30.0 JeVois DemoArUco
    streamon

  and point the camera to some markers; the camera should issue messages about all the markers it identifies.

Computing and showing 3D pose

The OpenCV ArUco module can also compute the 3D location and orientation of each marker in the world when dopose is true. The requires that the camera be calibrated, see the documentation of the ArUco component in JeVoisBase. A generic calibration that is for a JeVois camera with standard lens is included in files calibration640x480.yaml, calibration352x288.yaml, etc in the jevoisbase share directory (on the MicroSD, this is in JEVOIS:/share/camera/).

When doing pose estimation, you should set the markerlen parameter to the size (width) in millimeters of your actual physical markers. Knowing that size will allow the pose estimation algorithm to know where in the world your detected markers are.

For more about camera calibration, see this tutorial and http://jevois.org/basedoc/ArUco_8H_source.html

Tutorial and video

Check out this tutorial on how to build a simple visually-guided toy robot car for under $100 with JeVois, which uses ArUco at its core. A demo video is here:

Author

Laurent Itti

Display Name:

Demo ArUco

Videomapping:

NONE 0 0 0 YUYV 320 240 30.0 JeVois DemoArUco

Videomapping:

YUYV 320 260 30.0 YUYV 320 240 30.0 JeVois DemoArUco

Videomapping:

YUYV 640 500 20.0 YUYV 640 480 20.0 JeVois DemoArUco

Email:

itti@usc.edu

Address:

University of Southern California, HNB-07A, 3641 Watt Way, Los Angeles, CA 90089-2520, USA

Copyright

Copyright (C) 2016 by Laurent Itti, iLab and the University of Southern California

Main URL:

http://jevois.org

Support URL:

http://jevois.org/doc

Other URL:

http://iLab.usc.edu

License:

GPL v3

Distribution:

Unrestricted

Restrictions:

None

Definition at line 143 of file DemoArUco.C.

Constructor & Destructor Documentation

DemoArUco()

DemoArUco::DemoArUco ( std::string const &  instance )

inline

Constructor.

Definition at line 149 of file DemoArUco.C.

References itsArUco.

~DemoArUco()

virtual DemoArUco::~DemoArUco ( )

inlinevirtual

Virtual destructor for safe inheritance.

Definition at line 157 of file DemoArUco.C.

Member Function Documentation

process() [1/3]

virtual void DemoArUco::process ( jevois::InputFrame &&  inframe )

inlineoverridevirtual

Processing function, no video output.

Reimplemented from jevois::Module.

Definition at line 163 of file DemoArUco.C.

References jevois::rawimage::convertToCvGray(), h, jevois::RawImage::height, itsArUco, and jevois::RawImage::width.

process() [2/3]

virtual void DemoArUco::process ( jevois::InputFrame &&  inframe, jevois::GUIhelper &  helper  )

inlineoverridevirtual

Processing function with zero-copy and GUI on JeVois-Pro.

Reimplemented from jevois::Module.

Definition at line 246 of file DemoArUco.C.

References jevois::rawimage::convertToCvGray(), jevois::GUIhelper::drawInputFrame(), jevois::GUIhelper::endFrame(), h, jevois::RawImage::height, jevois::GUIhelper::iinfo(), jevois::GUIhelper::itext(), itsArUco, jevois::Timer::start(), jevois::GUIhelper::startFrame(), jevois::Timer::stop(), and jevois::RawImage::width.

process() [3/3]

virtual void DemoArUco::process ( jevois::InputFrame &&  inframe, jevois::OutputFrame &&  outframe  )

inlineoverridevirtual

Processing function with video output to USB.

Reimplemented from jevois::Module.

Definition at line 189 of file DemoArUco.C.

References jevois::async(), jevois::yuyv::Black, jevois::rawimage::convertToCvGray(), jevois::rawimage::drawFilledRect(), jevois::RawImage::fmt, h, jevois::RawImage::height, itsArUco, jevois::rawimage::paste(), jevois::RawImage::require(), jevois::Timer::start(), jevois::Timer::stop(), jevois::yuyv::White, jevois::RawImage::width, and jevois::rawimage::writeText().

Member Data Documentation

itsArUco

std::shared_ptr<ArUco> DemoArUco::itsArUco

protected

Definition at line 295 of file DemoArUco.C.

Referenced by DemoArUco(), process(), process(), and process().

---

The documentation for this class was generated from the following file:

• src/Modules/DemoArUco/DemoArUco.C
