#include <jevois/Core/PythonModule.H>

Wrapper module to allow users to develop new modules written in Python.

This wrapper module calls a process function written in Python on every frame. Note how sendSerial() is added dynamically after the python class is defined, as a new member function of the class.

Definition at line 366 of file PythonModule.H.

Inheritance diagram for jevois::PythonModule:

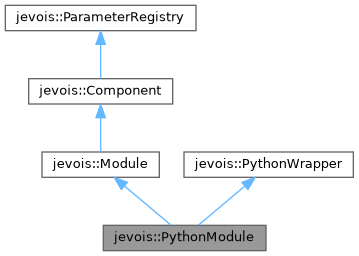

Collaboration diagram for jevois::PythonModule:

Public Member Functions

 PythonModule (VideoMapping const &m)
 Constructor needs the full path to a Python source code file.

void preInit () override
 Load python code and optionally call init() python module function, if implemented.

virtual ~PythonModule ()
 Virtual destructor for safe inheritance.

virtual void process (InputFrame &&inframe, OutputFrame &&outframe) override
 Processing function, version that receives a frame from camera and sends a frame out over USB.

virtual void process (InputFrame &&inframe) override
 Processing function, version that receives a frame from camera and does not use USB.

virtual void process (InputFrame &&inframe, GUIhelper &helper)
 Processing function, version that receives a frame from camera, no USB, but GUI output on JeVois-Pro.

virtual void parseSerial (std::string const &str, std::shared_ptr< UserInterface > s) override
 Receive a string from a serial port which contains a user command.

virtual void supportedCommands (std::ostream &os) override
 Human-readable description of this Module's supported custom commands.

void postUninit () override
 Optionally call uninit() python module function, if implemented.

- Public Member Functions inherited from jevois::Module
 Module (std::string const &instance)
 Constructor.

virtual ~Module ()
 Virtual destructor for safe inheritance.

virtual void sendSerial (std::string const &str)
 Send a string over the 'serout' serial port.

- Public Member Functions inherited from jevois::Component
 Component (std::string const &instance)
 Constructor.

virtual ~Component ()
 Virtual destructor for safe inheritance.

template<class Comp , typename... Args>
std::shared_ptr< Comp > addSubComponent (std::string const &instance, Args &&...args)
 Pseudo-constructor: construct and add another component as a subcomponent of this one.

template<class Comp >
void removeSubComponent (std::shared_ptr< Comp > &component)
 Remove a sub-Component from this Component, by shared_ptr.

void removeSubComponent (std::string const &instance, bool warnIfNotFound=true)
 Remove a sub-Component from this Component, by instance name.

template<class Comp = jevois::Component>
std::shared_ptr< Comp > getSubComponent (std::string const &instance) const
 Get a sub-component by instance name.

bool isTopLevel () const
 Returns true if this component is top-level, i.e., its parent is jevois::Manager.

bool initialized () const
 Has this component been initialized yet?

std::string const & className () const
 The class name of this component.

std::string const & instanceName () const
 The instance name of this component.

template<typename T >
std::vector< std::string > setParamVal (std::string const &paramdescriptor, T const &val)
 Set a parameter value.

template<typename T >
void setParamValUnique (std::string const &paramdescriptor, T const &val)
 Set a parameter value, simple version assuming only one parameter match.

template<typename T >
std::vector< std::pair< std::string, T > > getParamVal (std::string const &paramdescriptor) const
 Get parameter(s) value(s) by descriptor.

template<typename T >
getParamValUnique (std::string const &paramdescriptor) const
 Get a parameter value, simple version assuming only one parameter match.

std::vector< std::string > setParamString (std::string const &paramdescriptor, std::string const &val)
 Set a parameter value, by string.

void setParamStringUnique (std::string const &paramdescriptor, std::string const &val)
 Set a parameter value by string, simple version assuming only one parameter match.

std::vector< std::pair< std::string, std::string > > getParamString (std::string const &paramdescriptor) const
 Get a parameter value, by string.

std::string getParamStringUnique (std::string const &paramdescriptor) const
 Get a parameter value by string, simple version assuming only one parameter match.

void freezeParam (std::string const &paramdescriptor, bool doit)
 Freeze/unfreeze a parameter, by name, see ParameterBase::freeze()

void freezeAllParams (bool doit)
 Freeze all parameters.

std::string descriptor () const
 Get our full descriptor (including all parents) as [Instancename]:[...]:[...].

void setParamsFromFile (std::string const &filename)
 Set some parameters from a file.

std::istream & setParamsFromStream (std::istream &is, std::string const &absfile)
 Set some parameters from an open stream.

virtual void paramInfo (std::shared_ptr< UserInterface > s, std::map< std::string, std::string > &categs, bool skipFrozen, std::string const &cname="", std::string const &pfx="")
 Get machine-oriented descriptions of all parameters.

void foreachParam (std::function< void(std::string const &compname, ParameterBase *p)> func, std::string const &cname="")
 Run a function on every param we hold.

template<typename T >
std::shared_ptr< DynamicParameter< T > > addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ParameterCategory const &category)
 Add a new parameter after the Component has already been constructed.

template<typename T , template< typename > class ValidValuesSpec>
std::shared_ptr< DynamicParameter< T > > addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ValidValuesSpec< T > const &validValuesSpec, ParameterCategory const &category)
 Add a new parameter after the Component has already been constructed.

template<typename T >
void setDynamicParameterCallback (std::string const &name, std::function< void(T const &)> cb, bool callnow=true)
 Register a callback with a previously created dynamic parameter.

void removeDynamicParameter (std::string const &name, bool throw_if_not_found=true)
 Remove a previously added dynamic parameter.

void setPath (std::string const &path)
 Assign a filesystem path to this component.

std::filesystem::path absolutePath (std::filesystem::path const &path="")
 If given path is relative (not starting with /), prepend the Component path to it.

- Public Member Functions inherited from jevois::ParameterRegistry
virtual ~ParameterRegistry ()
 Virtual destructor for safe inheritance.

- Public Member Functions inherited from jevois::PythonWrapper
 PythonWrapper ()
 Default constructor. Will need to call pythonload() later.

virtual ~PythonWrapper ()
 Destructor.

 PythonWrapper (std::string const &path)
 Construct from path.

void pythonload (std::string const &path)
 Init from path if default constructor was used.

boost::python::object & pyinst ()
 Get the python class pyinst, or throw if construction error occurred (e.g., file not found)

boost::python::object & mainModule ()
 Get the main module.

boost::python::object & mainNamespace ()
 Get the main namespace.

std::string const & constructionError () const
 Get the construction error if any, or empty string.


Additional Inherited Members

- Protected Member Functions inherited from jevois::Component
virtual void postInit ()
 Called after all sub-Components are init()ed.

virtual void preUninit ()
 Called before all sub-Components are uninit()ed.

- Protected Member Functions inherited from jevois::ParameterRegistry
void addParameter (ParameterBase *const param)
 The Parameter class uses this method to register itself on construction with its owning Component.

void removeParameter (ParameterBase *const param)
 The Parameter class uses this method to un-register itself on destruction with its owning Component.

void callbackInitCall ()
 For all parameters that have a callback which has never been called, call it with the default param value.


Constructor & Destructor Documentation

◆ PythonModule()

jevois::PythonModule::PythonModule ( jevois::VideoMapping const &  m)

Constructor needs the full path to a Python source code file.

Note that, contrary to C++ modules, construction will not throw. This is so that the module is always valid and initialized, and its module path can be set by Engine, which is necessary to allow saving the source code from JeVois Inventor. Instead, any construction error is stored internally in this class and will be re-thrown at any access to process(), parfseSerial(), etc.

Definition at line 510 of file PythonModule.C.

References jevois::VideoMapping::ispython, and LFATAL.

◆ ~PythonModule()

jevois::PythonModule::~PythonModule ( )
virtual

Virtual destructor for safe inheritance.

Definition at line 534 of file PythonModule.C.

References jevois::Engine::unRegisterPythonComponent().

Member Function Documentation

◆ parseSerial()

void jevois::PythonModule::parseSerial ( std::string const &  str,
std::shared_ptr< UserInterface s
)
overridevirtual

Receive a string from a serial port which contains a user command.

Reimplemented from jevois::Module.

Definition at line 567 of file PythonModule.C.

References jevois::python::hasattr(), jevois::Module::parseSerial(), and jevois::PythonWrapper::pyinst().

◆ postUninit()

void jevois::PythonModule::postUninit ( )
overridevirtual

Optionally call uninit() python module function, if implemented.

Reimplemented from jevois::Component.

Definition at line 527 of file PythonModule.C.

References jevois::python::hasattr(), and jevois::PythonWrapper::pyinst().

◆ preInit()

void jevois::PythonModule::preInit ( )
overridevirtual

Load python code and optionally call init() python module function, if implemented.

Reimplemented from jevois::Component.

Definition at line 517 of file PythonModule.C.

References jevois::python::hasattr(), jevois::PythonWrapper::pyinst(), and jevois::PythonWrapper::pythonload().

◆ process() [1/3]

void jevois::PythonModule::process ( InputFrame &&  inframe)
overridevirtual

Processing function, version that receives a frame from camera and does not use USB.

Reimplemented from jevois::Module.

Definition at line 548 of file PythonModule.C.

References jevois::PythonWrapper::pyinst().

◆ process() [2/3]

void jevois::PythonModule::process ( InputFrame &&  inframe,
GUIhelper helper
)
virtual

Processing function, version that receives a frame from camera, no USB, but GUI output on JeVois-Pro.

Reimplemented from jevois::Module.

Definition at line 557 of file PythonModule.C.

References jevois::PythonWrapper::pyinst().

◆ process() [3/3]

void jevois::PythonModule::process ( InputFrame &&  inframe,
OutputFrame &&  outframe
)
overridevirtual

Processing function, version that receives a frame from camera and sends a frame out over USB.

Reimplemented from jevois::Module.

Definition at line 540 of file PythonModule.C.

References jevois::PythonWrapper::pyinst().

◆ supportedCommands()

void jevois::PythonModule::supportedCommands ( std::ostream &  os)
overridevirtual

Human-readable description of this Module's supported custom commands.

Reimplemented from jevois::Module.

Definition at line 579 of file PythonModule.C.

References jevois::python::hasattr(), jevois::PythonWrapper::pyinst(), and jevois::Module::supportedCommands().


The documentation for this class was generated from the following files:
