jevois::PoseSkeleton Struct Reference

#include <jevois/Types/PoseSkeleton.H>

A simple skeleton class for pose detection deep neural networks.

This class simply represents a set of nodes and links with associated confidences and colors. In this class, you should only store nodes and links that have actually been detected.

Definition at line 45 of file PoseSkeleton.H.

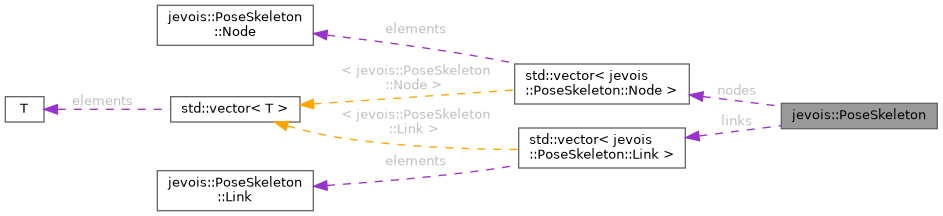

Collaboration diagram for jevois::PoseSkeleton:

Classes

struct  Link
 A pose skeleton link between two nodes. More...

struct  Node
 A pose skeleton node. More...


Public Member Functions

 PoseSkeleton (std::shared_ptr< PoseSkeletonDefinition > def)
 Constructor from a previously loaded definition.

unsigned int numSkeletonNodes () const
 Get the total number of nodes in the skeleton. Node ID is from 0 to that total - 1.

unsigned int numSkeletonLinks () const
 Get the total number of links in the skeleton. Link ID is from 0 to that total - 1.

char const * nodeName (unsigned int id) const
 Get the name of a node from its ID.

unsigned int nodeColor (unsigned int id) const
 Get draw color of a node from its ID, as 0xAABBGGRR (note: returned unsigned int is the same as ImU32)

unsigned int linkColor (unsigned int id) const
 Get draw color of a node from its ID, as 0xAABBGGRR (note: returned unsigned int is the same as ImU32)

std::vector< std::pair< unsigned int, unsigned int > > const & linkDefinitions () const
 Get a const ref to our link definitions, useful to iterate over. Each link is <node_id_1, node_id_2>


Public Attributes

std::vector< Nodenodes
 The nodes we found in this detection.

std::vector< Linklinks
 The links we found in this detection.


Constructor & Destructor Documentation

◆ PoseSkeleton()

jevois::PoseSkeleton::PoseSkeleton ( std::shared_ptr< PoseSkeletonDefinition def)

Constructor from a previously loaded definition.

Definition at line 123 of file PoseSkeleton.C.

References LFATAL, and PoseSkeleton().

Referenced by PoseSkeleton().

Member Function Documentation

◆ linkColor()

unsigned int jevois::PoseSkeleton::linkColor ( unsigned int  id) const

Get draw color of a node from its ID, as 0xAABBGGRR (note: returned unsigned int is the same as ImU32)

Definition at line 154 of file PoseSkeleton.C.

References LFATAL.

◆ linkDefinitions()

std::vector< std::pair< unsigned int, unsigned int > > const & jevois::PoseSkeleton::linkDefinitions ( ) const

Get a const ref to our link definitions, useful to iterate over. Each link is <node_id_1, node_id_2>

Definition at line 161 of file PoseSkeleton.C.

Referenced by jevois::dnn::PostProcessorPose::process().

◆ nodeColor()

unsigned int jevois::PoseSkeleton::nodeColor ( unsigned int  id) const

Get draw color of a node from its ID, as 0xAABBGGRR (note: returned unsigned int is the same as ImU32)

Definition at line 147 of file PoseSkeleton.C.

References LFATAL.

◆ nodeName()

char const * jevois::PoseSkeleton::nodeName ( unsigned int  id) const

Get the name of a node from its ID.

Definition at line 140 of file PoseSkeleton.C.

References LFATAL.

◆ numSkeletonLinks()

unsigned int jevois::PoseSkeleton::numSkeletonLinks ( ) const

Get the total number of links in the skeleton. Link ID is from 0 to that total - 1.

This is not the number of detected links for a particular detection, which is simply links.size()

Definition at line 136 of file PoseSkeleton.C.

◆ numSkeletonNodes()

unsigned int jevois::PoseSkeleton::numSkeletonNodes ( ) const

Get the total number of nodes in the skeleton. Node ID is from 0 to that total - 1.

This is not the number of detected nodes for a particular detection, which is simply nodes.size()

Definition at line 132 of file PoseSkeleton.C.

Member Data Documentation

◆ links

std::vector<Link> jevois::PoseSkeleton::links

The links we found in this detection.

Definition at line 68 of file PoseSkeleton.H.

Referenced by jevois::dnn::PostProcessorPose::process().

◆ nodes

std::vector<Node> jevois::PoseSkeleton::nodes

The nodes we found in this detection.

Definition at line 67 of file PoseSkeleton.H.

Referenced by jevois::dnn::PostProcessorPose::process().


The documentation for this struct was generated from the following files:
