Wrapper around a neural network implemented by with the tiny-dnn framework by Taiga Nomi. More...

#include <jevoisbase/Components/ObjectRecognition/ObjectRecognition.H>

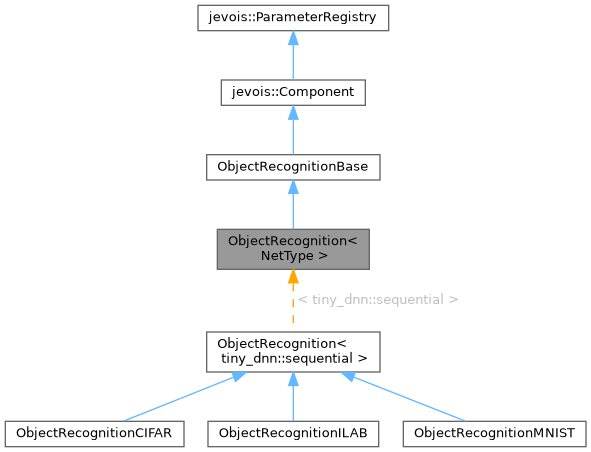

Inheritance diagram for ObjectRecognition< NetType >:

[legend]

Collaboration diagram for ObjectRecognition< NetType >:

[legend]

Public Member Functions
	ObjectRecognition (std::string const &instance)
	Constructor allocates the (empty) network. More...

virtual	~ObjectRecognition ()
	Destructor. More...

virtual tiny_dnn::index3d< size_t >	insize () const override
	Get the input size for the current network, useful to prepare inputs to process() More...

vec_t	process (cv::Mat const &img, bool normalize=true) override
	Process an image, results are confidence for each category. More...

Public Member Functions inherited from ObjectRecognitionBase
	ObjectRecognitionBase (std::string const &instance)
	Constructor. More...

virtual	~ObjectRecognitionBase ()
	Virtual destructor for safe inheritance. More...

virtual void	define ()=0
	Define the network structure. More...

virtual void	train (std::string const &path)=0
	Train the network. More...

virtual const std::string &	category (size_t idx) const =0
	Return the name of a given category (0-based index in the vector of results) More...

Public Member Functions inherited from jevois::Component
	Component (std::string const &instance)

virtual	~Component ()

std::shared_ptr< Comp >	addSubComponent (std::string const &instance, Args &&...args)

void	removeSubComponent (std::shared_ptr< Comp > &component)

void	removeSubComponent (std::string const &instance, bool warnIfNotFound=true)

std::shared_ptr< Comp >	getSubComponent (std::string const &instance) const

bool	isTopLevel () const

Engine *	engine () const

bool	initialized () const

const std::string &	className () const

const std::string &	instanceName () const

std::vector< std::string >	setParamVal (std::string const &paramdescriptor, T const &val)

void	setParamValUnique (std::string const &paramdescriptor, T const &val)

std::vector< std::pair< std::string, T > >	getParamVal (std::string const &paramdescriptor) const

T	getParamValUnique (std::string const &paramdescriptor) const

std::vector< std::string >	setParamString (std::string const &paramdescriptor, std::string const &val)

void	setParamStringUnique (std::string const &paramdescriptor, std::string const &val)

std::vector< std::pair< std::string, std::string > >	getParamString (std::string const &paramdescriptor) const

std::string	getParamStringUnique (std::string const &paramdescriptor) const

void	freezeParam (std::string const &paramdescriptor)

void	unFreezeParam (std::string const &paramdescriptor)

void	freezeAllParams ()

void	unFreezeAllParams ()

std::string	descriptor () const

void	setParamsFromFile (std::string const &filename)

std::istream &	setParamsFromStream (std::istream &is, std::string const &absfile)

virtual void	paramInfo (std::shared_ptr< UserInterface > s, std::map< std::string, std::string > &categs, bool skipFrozen, std::string const &cname="", std::string const &pfx="")

void	foreachParam (std::function< void(std::string const &compname, ParameterBase *p)> func, std::string const &cname="")

std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ParameterCategory const &category)

std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ValidValuesSpec< T > const &validValuesSpec, ParameterCategory const &category)

void	setDynamicParameterCallback (std::string const &name, std::function< void(T const &)> cb, bool callnow=true)

void	removeDynamicParameter (std::string const &name)

void	setPath (std::string const &path)

std::filesystem::path	absolutePath (std::filesystem::path const &path="")

std::shared_ptr< Comp >	addSubComponent (std::string const &instance, Args &&...args)

void	removeSubComponent (std::shared_ptr< Comp > &component)

void	removeSubComponent (std::string const &instance, bool warnIfNotFound=true)

std::shared_ptr< Comp >	getSubComponent (std::string const &instance) const

bool	isTopLevel () const

Engine *	engine () const

bool	initialized () const

const std::string &	className () const

const std::string &	instanceName () const

std::vector< std::string >	setParamVal (std::string const &paramdescriptor, T const &val)

void	setParamValUnique (std::string const &paramdescriptor, T const &val)

std::vector< std::pair< std::string, T > >	getParamVal (std::string const &paramdescriptor) const

T	getParamValUnique (std::string const &paramdescriptor) const

std::vector< std::string >	setParamString (std::string const &paramdescriptor, std::string const &val)

void	setParamStringUnique (std::string const &paramdescriptor, std::string const &val)

std::vector< std::pair< std::string, std::string > >	getParamString (std::string const &paramdescriptor) const

std::string	getParamStringUnique (std::string const &paramdescriptor) const

void	freezeParam (std::string const &paramdescriptor)

void	unFreezeParam (std::string const &paramdescriptor)

void	freezeAllParams ()

void	unFreezeAllParams ()

std::string	descriptor () const

void	setParamsFromFile (std::string const &filename)

std::istream &	setParamsFromStream (std::istream &is, std::string const &absfile)

virtual void	paramInfo (std::shared_ptr< UserInterface > s, std::map< std::string, std::string > &categs, bool skipFrozen, std::string const &cname="", std::string const &pfx="")

void	foreachParam (std::function< void(std::string const &compname, ParameterBase *p)> func, std::string const &cname="")

std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ParameterCategory const &category)

std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ValidValuesSpec< T > const &validValuesSpec, ParameterCategory const &category)

void	setDynamicParameterCallback (std::string const &name, std::function< void(T const &)> cb, bool callnow=true)

void	removeDynamicParameter (std::string const &name)

void	setPath (std::string const &path)

std::filesystem::path	absolutePath (std::filesystem::path const &path="")

Public Member Functions inherited from jevois::ParameterRegistry
virtual	~ParameterRegistry ()

Protected Member Functions
virtual void	postInit () override
	Initialize the network, required before one starts using it. More...

Protected Member Functions inherited from jevois::Component
virtual void	preInit ()

virtual void	preUninit ()

virtual void	postUninit ()

virtual void	preInit ()

virtual void	preUninit ()

virtual void	postUninit ()

Protected Member Functions inherited from jevois::ParameterRegistry
void	addParameter (ParameterBase *const param)

void	removeParameter (ParameterBase *const param)

void	callbackInitCall ()

Protected Attributes
tiny_dnn::network< NetType > *	net

Additional Inherited Members
Public Types inherited from ObjectRecognitionBase
typedef std::vector< tiny_dnn::float_t, tiny_dnn::aligned_allocator< tiny_dnn::float_t, 64 > >	vec_t
	Type used by tiny-dnn for the results: More...

Detailed Description

template<typename NetType>
class ObjectRecognition< NetType >

Wrapper around a neural network implemented by with the tiny-dnn framework by Taiga Nomi.

Because tiny-dnn is an all-include package, we use the pimpl idiom here to avoid including all the tiny-dnn sources in the header file, and instead only include and compile them once in our ObjectRecognition.C file.

Definition at line 123 of file ObjectRecognition.H.

Constructor & Destructor Documentation

◆ ObjectRecognition()

template<typename NetType >

ObjectRecognition< NetType >::ObjectRecognition ( std::string const & instance )

Constructor allocates the (empty) network.

Definition at line 35 of file ObjectRecognition.C.

◆ ~ObjectRecognition()

template<typename NetType >

ObjectRecognition< NetType >::~ObjectRecognition

virtual

Destructor.

Definition at line 107 of file ObjectRecognition.C.

Member Function Documentation

◆ insize()

template<typename NetType >

tiny_dnn::index3d< size_t > ObjectRecognition< NetType >::insize

overridevirtual

Get the input size for the current network, useful to prepare inputs to process()

Implements ObjectRecognitionBase.

Definition at line 112 of file ObjectRecognition.C.

◆ postInit()

template<typename NetType >

void ObjectRecognition< NetType >::postInit

overrideprotectedvirtual

Initialize the network, required before one starts using it.

First, we will call define(). Then, we will look in path for weights.tnn, and if not found, we will call train() to train the network using data in that path, and then we will save weights.tnn. Derived classes may implement a constructor that takes path and then calls init(path) after the base class has been constructed (e.g., in the body of the derived class constructor).

Reimplemented from jevois::Component.

Definition at line 41 of file ObjectRecognition.C.

◆ process()

template<typename NetType >

ObjectRecognition< NetType >::vec_t ObjectRecognition< NetType >::process	(	cv::Mat const &	img,
		bool	normalize = `true`
	)

overridevirtual

Process an image, results are confidence for each category.

Implements ObjectRecognitionBase.

Definition at line 118 of file ObjectRecognition.C.

Member Data Documentation

◆ net

template<typename NetType >

tiny_dnn::network<NetType>* ObjectRecognition< NetType >::net

protected

Definition at line 146 of file ObjectRecognition.H.

Referenced by PyNetOpenCV.PyNetOpenCV::load(), PyDetectionDNN.PyDetectionDNN::postprocess(), PyNetOpenCV.PyNetOpenCV::process(), PyClassificationDNN.PyClassificationDNN::process(), and PyDetectionDNN.PyDetectionDNN::process().

The documentation for this class was generated from the following files:

include/jevoisbase/Components/ObjectRecognition/ObjectRecognition.H
src/Components/ObjectRecognition/ObjectRecognition.C
