Abstract base class for an object recognition component. More...

#include <jevoisbase/Components/ObjectRecognition/ObjectRecognition.H>

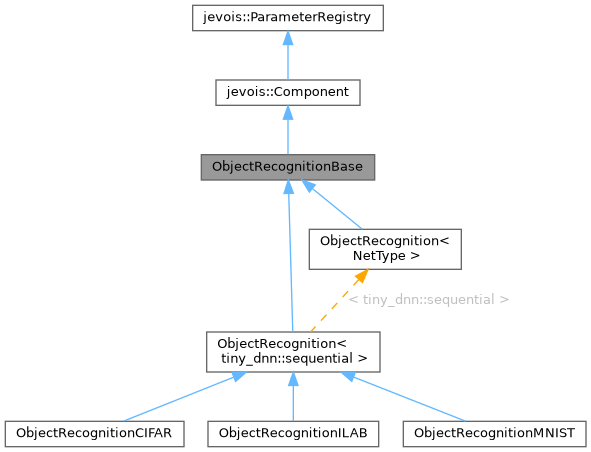

Inheritance diagram for ObjectRecognitionBase:

[legend]

Collaboration diagram for ObjectRecognitionBase:

Public Types
typedef std::vector< tiny_dnn::float_t, tiny_dnn::aligned_allocator< tiny_dnn::float_t, 64 > >	vec_t
	Type used by tiny-dnn for the results: More...

Public Member Functions
	ObjectRecognitionBase (std::string const &instance)
	Constructor. More...

virtual	~ObjectRecognitionBase ()
	Virtual destructor for safe inheritance. More...

virtual void	define ()=0
	Define the network structure. More...

virtual tiny_dnn::index3d< size_t >	insize () const =0
	Get the input size for the current network, useful to prepare inputs to process() More...

virtual void	train (std::string const &path)=0
	Train the network. More...

virtual vec_t	process (cv::Mat const &img, bool normalize=true)=0
	Process an image, results are confidence for each category. More...

virtual const std::string &	category (size_t idx) const =0
	Return the name of a given category (0-based index in the vector of results) More...

Public Member Functions inherited from jevois::Component
	Component (std::string const &instance)

virtual	~Component ()

std::shared_ptr< Comp >	addSubComponent (std::string const &instance, Args &&...args)

void	removeSubComponent (std::shared_ptr< Comp > &component)

void	removeSubComponent (std::string const &instance, bool warnIfNotFound=true)

std::shared_ptr< Comp >	getSubComponent (std::string const &instance) const

bool	isTopLevel () const

Engine *	engine () const

bool	initialized () const

const std::string &	className () const

const std::string &	instanceName () const

std::vector< std::string >	setParamVal (std::string const &paramdescriptor, T const &val)

void	setParamValUnique (std::string const &paramdescriptor, T const &val)

std::vector< std::pair< std::string, T > >	getParamVal (std::string const &paramdescriptor) const

T	getParamValUnique (std::string const &paramdescriptor) const

std::vector< std::string >	setParamString (std::string const &paramdescriptor, std::string const &val)

void	setParamStringUnique (std::string const &paramdescriptor, std::string const &val)

std::vector< std::pair< std::string, std::string > >	getParamString (std::string const &paramdescriptor) const

std::string	getParamStringUnique (std::string const &paramdescriptor) const

void	freezeParam (std::string const &paramdescriptor)

void	unFreezeParam (std::string const &paramdescriptor)

void	freezeAllParams ()

void	unFreezeAllParams ()

std::string	descriptor () const

void	setParamsFromFile (std::string const &filename)

std::istream &	setParamsFromStream (std::istream &is, std::string const &absfile)

virtual void	paramInfo (std::shared_ptr< UserInterface > s, std::map< std::string, std::string > &categs, bool skipFrozen, std::string const &cname="", std::string const &pfx="")

void	foreachParam (std::function< void(std::string const &compname, ParameterBase *p)> func, std::string const &cname="")

std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ParameterCategory const &category)

std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ValidValuesSpec< T > const &validValuesSpec, ParameterCategory const &category)

void	setDynamicParameterCallback (std::string const &name, std::function< void(T const &)> cb, bool callnow=true)

void	removeDynamicParameter (std::string const &name)

void	setPath (std::string const &path)

std::filesystem::path	absolutePath (std::filesystem::path const &path="")

std::shared_ptr< Comp >	addSubComponent (std::string const &instance, Args &&...args)

void	removeSubComponent (std::shared_ptr< Comp > &component)

void	removeSubComponent (std::string const &instance, bool warnIfNotFound=true)

std::shared_ptr< Comp >	getSubComponent (std::string const &instance) const

bool	isTopLevel () const

Engine *	engine () const

bool	initialized () const

const std::string &	className () const

const std::string &	instanceName () const

std::vector< std::string >	setParamVal (std::string const &paramdescriptor, T const &val)

void	setParamValUnique (std::string const &paramdescriptor, T const &val)

std::vector< std::pair< std::string, T > >	getParamVal (std::string const &paramdescriptor) const

T	getParamValUnique (std::string const &paramdescriptor) const

std::vector< std::string >	setParamString (std::string const &paramdescriptor, std::string const &val)

void	setParamStringUnique (std::string const &paramdescriptor, std::string const &val)

std::vector< std::pair< std::string, std::string > >	getParamString (std::string const &paramdescriptor) const

std::string	getParamStringUnique (std::string const &paramdescriptor) const

void	freezeParam (std::string const &paramdescriptor)

void	unFreezeParam (std::string const &paramdescriptor)

void	freezeAllParams ()

void	unFreezeAllParams ()

std::string	descriptor () const

void	setParamsFromFile (std::string const &filename)

std::istream &	setParamsFromStream (std::istream &is, std::string const &absfile)

virtual void	paramInfo (std::shared_ptr< UserInterface > s, std::map< std::string, std::string > &categs, bool skipFrozen, std::string const &cname="", std::string const &pfx="")

void	foreachParam (std::function< void(std::string const &compname, ParameterBase *p)> func, std::string const &cname="")

std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ParameterCategory const &category)

std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ValidValuesSpec< T > const &validValuesSpec, ParameterCategory const &category)

void	setDynamicParameterCallback (std::string const &name, std::function< void(T const &)> cb, bool callnow=true)

void	removeDynamicParameter (std::string const &name)

void	setPath (std::string const &path)

std::filesystem::path	absolutePath (std::filesystem::path const &path="")

Public Member Functions inherited from jevois::ParameterRegistry
virtual	~ParameterRegistry ()

Additional Inherited Members
Protected Member Functions inherited from jevois::Component
virtual void	preInit ()

virtual void	postInit ()

virtual void	preUninit ()

virtual void	postUninit ()

virtual void	preInit ()

virtual void	postInit ()

virtual void	preUninit ()

virtual void	postUninit ()

Protected Member Functions inherited from jevois::ParameterRegistry
void	addParameter (ParameterBase *const param)

void	removeParameter (ParameterBase *const param)

void	callbackInitCall ()

Detailed Description

Abstract base class for an object recognition component.

This base class provides a framework to recognize objects using deep neural networks. The network is implemented using the tiny-dnn library, see https://github.com/tiny-dnn/tiny-dnn

Derived classes implement a particular network by overriding the define() method of the base class. They also must implement the other abstract methods provided here.

To create a new object recognition component, one would usually derive from the ObjectRecognition class template as opposed to deriving directly from ObjectRecognitionBase.

Training

Training is automatically launched if a pre-trained weight file is not found. Thus, typical workflow is, assuming JeVois v1.4 or later:

create a new derived class and implement define(), train(), prcess(), etc in there. See ObjectRecognitionMNIST for example.
create a directory /jevois/share/tiny-dnn/NAME/ where NAME is the instance name you give to your derived object.
copy the training data to that directory (as required by your implementation of train() in your derived class)
run jevois-daemon on host, make sure it has write permission to the directory you created. It will fail to load the pre-trained weights and will initiate training.
when training is complete, trained weights will be saved as /jevois/share/tiny-dnn/NAME/weights.tnn (for JeVois v1.4 or earlier) or as /jevois/share/tiny-dnn/NAME/weights.tnn.host (for JeVois v1.5 or later).

Starting with JeVois v1.5, tiny-dnn has been updated to a recent version which uses cereal as a back-end to save networks and weights. This yields efficient loading of pre-trained networks but the binary archive format is not portable between Intel x64 hosts and ARM platform. Hence, you should proceed as follows:

run the above steps. Two files will be saved: weights.tnn.host (binary) and weights.tnn.json (portable text file).
copy weights.tnn.json to microSD in JEVOIS:/share//tiny-dnn/NAME/ where NAME is the instance name you give to your derived object.
insert microSD into JeVois camera and launch the machine vision mode that uses your network.
ObjectRecognition::load() will fail to load the missing weights.tnn.platform (binary) and will thus revert to loading weights.tnn.json instead. It will then save weights.tnn.platform to microSD. Because this was done by the JeVois camera, weights.tnn.platform will now be in ARM binary format.
You can now copy weights.tnn.platform out of your microSD to ~/jevoisbase/share/tiny-dnn/NAME/ so that it will be flashed to microSD next time you make one using jevois-flash-card and you will avoid having to convert again next time JeVois starts.

Definition at line 87 of file ObjectRecognition.H.

Member Typedef Documentation

◆ vec_t

typedef std::vector<tiny_dnn::float_t, tiny_dnn::aligned_allocator<tiny_dnn::float_t, 64> > ObjectRecognitionBase::vec_t

Type used by tiny-dnn for the results:

Definition at line 91 of file ObjectRecognition.H.

Constructor & Destructor Documentation

◆ ObjectRecognitionBase()

ObjectRecognitionBase::ObjectRecognitionBase ( std::string const & instance )

Constructor.

Definition at line 25 of file ObjectRecognition.C.

◆ ~ObjectRecognitionBase()

ObjectRecognitionBase::~ObjectRecognitionBase ( )

virtual

Virtual destructor for safe inheritance.

Definition at line 30 of file ObjectRecognition.C.

Member Function Documentation

◆ category()

virtual const std::string& ObjectRecognitionBase::category ( size_t idx ) const

pure virtual

Return the name of a given category (0-based index in the vector of results)

Implemented in ObjectRecognitionCIFAR, ObjectRecognitionILAB, and ObjectRecognitionMNIST.

◆ define()

virtual void ObjectRecognitionBase::define ( )

pure virtual

Define the network structure.

Derived classes must implement this function and load a network structure.

Implemented in ObjectRecognitionCIFAR, ObjectRecognitionILAB, and ObjectRecognitionMNIST.

◆ insize()

virtual tiny_dnn::index3d<size_t> ObjectRecognitionBase::insize ( ) const

pure virtual

Get the input size for the current network, useful to prepare inputs to process()

Implemented in ObjectRecognition< NetType >.

◆ process()

virtual vec_t ObjectRecognitionBase::process	(	cv::Mat const &	img,
		bool	normalize = `true`
	)

pure virtual

Process an image, results are confidence for each category.

Implemented in ObjectRecognition< NetType >, and ObjectRecognition< tiny_dnn::sequential >.

◆ train()

virtual void ObjectRecognitionBase::train ( std::string const & path )

pure virtual

Train the network.

Derived classes must implement this function.

Implemented in ObjectRecognitionCIFAR, ObjectRecognitionILAB, and ObjectRecognitionMNIST.

The documentation for this class was generated from the following files:

include/jevoisbase/Components/ObjectRecognition/ObjectRecognition.H
src/Components/ObjectRecognition/ObjectRecognition.C
