Simple color-based detection of a U-shaped object for FIRST Robotics. More...

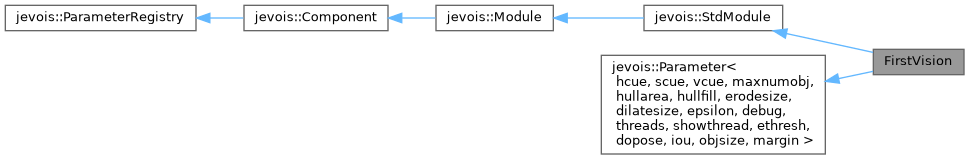

Inheritance diagram for FirstVision:

[legend]

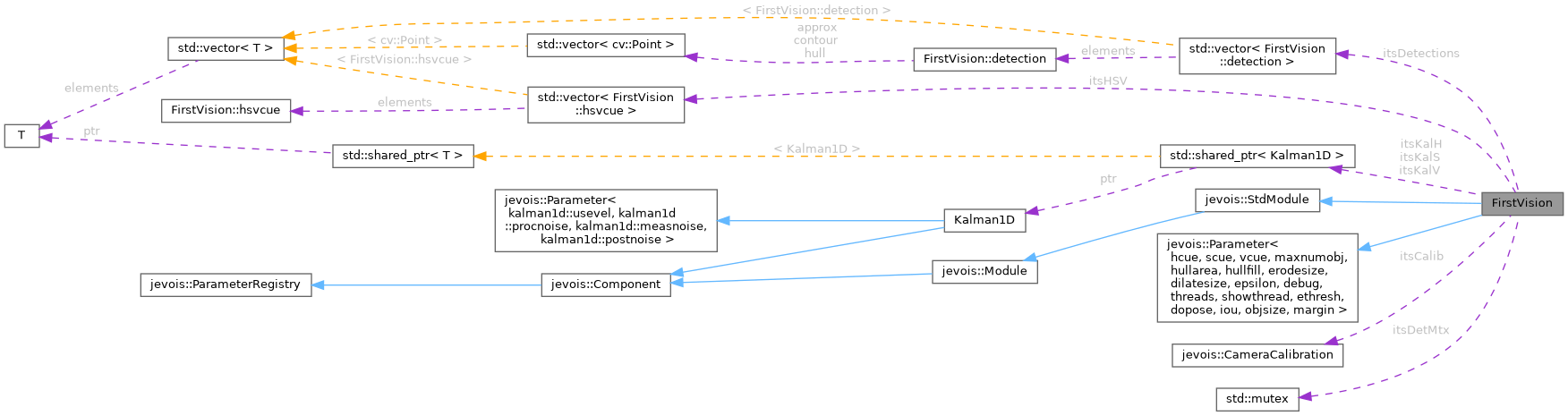

Collaboration diagram for FirstVision:

[legend]

Classes
struct	detection
	Helper struct for a detected object. More...

struct	hsvcue
	Helper struct for an HSV range triplet, where each range is specified as a mean and sigma: More...

class	SinglePoseEstimationParallel
	ParallelLoopBody class for the parallelization of the single markers pose estimation. More...

Public Member Functions
	FirstVision (std::string const &instance)
	Constructor. More...

virtual	~FirstVision ()
	Virtual destructor for safe inheritance. More...

void	estimatePose (std::vector< std::vector< cv::Point2f > > &corners, cv::OutputArray _rvecs, cv::OutputArray _tvecs)
	Estimate 6D pose of detected objects, if dopose parameter is true, otherwise just 2D corners. More...

void	loadCameraCalibration (unsigned int w, unsigned int h)
	Load camera calibration parameters. More...

void	detect (cv::Mat const &imghsv, size_t tnum, int dispx=3, int dispy=242, jevois::RawImage *outimg=nullptr)
	HSV object detector, we run several of those in parallel with different hsvcue settings. More...

void	updateHSV (size_t nthreads)
	Initialize (e.g., if user changes cue params) or update our HSV detection ranges. More...

void	cleanupDetections ()
	Clean up the detections by eliminating duplicates: More...

void	learnHSV (size_t nthreads, cv::Mat const &imgbgr, jevois::RawImage *outimg=nullptr)
	Learn and update our HSV ranges. More...

void	sendAllSerial (int w, int h, std::vector< std::vector< cv::Point2f > > const &corners, std::vector< cv::Vec3d > const &rvecs, std::vector< cv::Vec3d > const &tvecs)
	Send serial messages about each detection: More...

void	updateStructuringElements ()
	Update the morphology structuring elements if needed. More...

virtual void	process (jevois::InputFrame &&inframe) override
	Processing function, no USB video output. More...

virtual void	process (jevois::InputFrame &&inframe, jevois::OutputFrame &&outframe) override
	Processing function, with USB video output. More...

void	drawDetections (jevois::RawImage &outimg, std::vector< std::vector< cv::Point2f > > corners, std::vector< cv::Vec3d > const &rvecs, std::vector< cv::Vec3d > const &tvecs)

Public Member Functions inherited from jevois::StdModule
	StdModule (std::string const &instance)

virtual	~StdModule ()

void	sendSerialImg1Dx (unsigned int camw, float x, float size=0.0F, std::string const &id="", std::string const &extra="")

void	sendSerialStd1Dx (float x, float size=0.0F, std::string const &id="", std::string const &extra="")

void	sendSerialImg1Dy (unsigned int camh, float y, float size=0.0F, std::string const &id="", std::string const &extra="")

void	sendSerialStd1Dy (float y, float size=0.0F, std::string const &id="", std::string const &extra="")

void	sendSerialImg2D (unsigned int camw, unsigned int camh, float x, float y, float w=0.0F, float h=0.0F, std::string const &id="", std::string const &extra="")

void	sendSerialStd2D (float x, float y, float w=0.0F, float h=0.0F, std::string const &id="", std::string const &extra="")

void	sendSerialContour2D (unsigned int camw, unsigned int camh, std::vector< cv::Point_< T > > points, std::string const &id="", std::string const &extra="")

void	sendSerialStd3D (float x, float y, float z, float w=0.0F, float h=0.0F, float d=0.0F, float q1=0.0F, float q2=0.0F, float q3=0.0f, float q4=0.0F, std::string const &id="", std::string const &extra="")

void	sendSerialStd3D (std::vector< cv::Point3f > points, std::string const &id="", std::string const &extra="")

void	sendSerialObjReco (std::vector< ObjReco > const &res)

void	sendSerialObjDetImg2D (unsigned int camw, unsigned int camh, float x, float y, float w, float h, std::vector< ObjReco > const &res)

void	sendSerialObjDetImg2D (unsigned int camw, unsigned int camh, ObjDetect const &det)

	JEVOIS_DEFINE_ENUM_CLASS (SerStyle,(Terse)(Normal)(Detail)(Fine)) JEVOIS_DECLARE_PARAMETER(serstyle

	JEVOIS_DECLARE_PARAMETER (serprec, unsigned int, "Number of decimal points in standardized serial messages as " "defined in http://jevois.org/doc/UserSerialStyle.html", 0U, jevois::Range< unsigned int >(0U, 10U), ParamCateg)

	JEVOIS_DEFINE_ENUM_CLASS (SerStamp,(None)(Frame)(Time)(FrameTime)(FrameDateTime)) JEVOIS_DECLARE_PARAMETER(serstamp

	JEVOIS_DEFINE_ENUM_CLASS (SerMark,(None)(Start)(Stop)(Both)) JEVOIS_DECLARE_PARAMETER(sermark

Public Member Functions inherited from jevois::Module
	Module (std::string const &instance)

virtual	~Module ()

virtual void	process (InputFrame &&inframe, GUIhelper &helper)

virtual void	sendSerial (std::string const &str)

virtual void	parseSerial (std::string const &str, std::shared_ptr< UserInterface > s)

virtual void	supportedCommands (std::ostream &os)

Public Member Functions inherited from jevois::Component
	Component (std::string const &instance)

virtual	~Component ()

std::shared_ptr< Comp >	addSubComponent (std::string const &instance, Args &&...args)

void	removeSubComponent (std::shared_ptr< Comp > &component)

void	removeSubComponent (std::string const &instance, bool warnIfNotFound=true)

std::shared_ptr< Comp >	getSubComponent (std::string const &instance) const

bool	isTopLevel () const

Engine *	engine () const

bool	initialized () const

const std::string &	className () const

const std::string &	instanceName () const

std::vector< std::string >	setParamVal (std::string const &paramdescriptor, T const &val)

void	setParamValUnique (std::string const &paramdescriptor, T const &val)

std::vector< std::pair< std::string, T > >	getParamVal (std::string const &paramdescriptor) const

T	getParamValUnique (std::string const &paramdescriptor) const

std::vector< std::string >	setParamString (std::string const &paramdescriptor, std::string const &val)

void	setParamStringUnique (std::string const &paramdescriptor, std::string const &val)

std::vector< std::pair< std::string, std::string > >	getParamString (std::string const &paramdescriptor) const

std::string	getParamStringUnique (std::string const &paramdescriptor) const

void	freezeParam (std::string const &paramdescriptor)

void	unFreezeParam (std::string const &paramdescriptor)

void	freezeAllParams ()

void	unFreezeAllParams ()

std::string	descriptor () const

void	setParamsFromFile (std::string const &filename)

std::istream &	setParamsFromStream (std::istream &is, std::string const &absfile)

virtual void	paramInfo (std::shared_ptr< UserInterface > s, std::map< std::string, std::string > &categs, bool skipFrozen, std::string const &cname="", std::string const &pfx="")

void	foreachParam (std::function< void(std::string const &compname, ParameterBase *p)> func, std::string const &cname="")

std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ParameterCategory const &category)

std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ValidValuesSpec< T > const &validValuesSpec, ParameterCategory const &category)

void	setDynamicParameterCallback (std::string const &name, std::function< void(T const &)> cb, bool callnow=true)

void	removeDynamicParameter (std::string const &name)

void	setPath (std::string const &path)

std::filesystem::path	absolutePath (std::filesystem::path const &path="")

std::shared_ptr< Comp >	addSubComponent (std::string const &instance, Args &&...args)

void	removeSubComponent (std::shared_ptr< Comp > &component)

void	removeSubComponent (std::string const &instance, bool warnIfNotFound=true)

std::shared_ptr< Comp >	getSubComponent (std::string const &instance) const

bool	isTopLevel () const

Engine *	engine () const

bool	initialized () const

const std::string &	className () const

const std::string &	instanceName () const

std::vector< std::string >	setParamVal (std::string const &paramdescriptor, T const &val)

void	setParamValUnique (std::string const &paramdescriptor, T const &val)

std::vector< std::pair< std::string, T > >	getParamVal (std::string const &paramdescriptor) const

T	getParamValUnique (std::string const &paramdescriptor) const

std::vector< std::string >	setParamString (std::string const &paramdescriptor, std::string const &val)

void	setParamStringUnique (std::string const &paramdescriptor, std::string const &val)

std::vector< std::pair< std::string, std::string > >	getParamString (std::string const &paramdescriptor) const

std::string	getParamStringUnique (std::string const &paramdescriptor) const

void	freezeParam (std::string const &paramdescriptor)

void	unFreezeParam (std::string const &paramdescriptor)

void	freezeAllParams ()

void	unFreezeAllParams ()

std::string	descriptor () const

void	setParamsFromFile (std::string const &filename)

std::istream &	setParamsFromStream (std::istream &is, std::string const &absfile)

virtual void	paramInfo (std::shared_ptr< UserInterface > s, std::map< std::string, std::string > &categs, bool skipFrozen, std::string const &cname="", std::string const &pfx="")

void	foreachParam (std::function< void(std::string const &compname, ParameterBase *p)> func, std::string const &cname="")

std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ParameterCategory const &category)

std::shared_ptr< DynamicParameter< T > >	addDynamicParameter (std::string const &name, std::string const &description, T const &defaultValue, ValidValuesSpec< T > const &validValuesSpec, ParameterCategory const &category)

void	setDynamicParameterCallback (std::string const &name, std::function< void(T const &)> cb, bool callnow=true)

void	removeDynamicParameter (std::string const &name)

void	setPath (std::string const &path)

std::filesystem::path	absolutePath (std::filesystem::path const &path="")

Public Member Functions inherited from jevois::ParameterRegistry
virtual	~ParameterRegistry ()

Protected Member Functions
void	onParamChange (hcue const &, unsigned char const &) override

void	onParamChange (scue const &, unsigned char const &) override

void	onParamChange (vcue const &, unsigned char const &) override

Protected Member Functions inherited from jevois::StdModule
void	sendSerialMarkStart ()

void	sendSerialMarkStop ()

std::string	getStamp () const

Protected Member Functions inherited from jevois::Component
virtual void	preInit ()

virtual void	postInit ()

virtual void	preUninit ()

virtual void	postUninit ()

virtual void	preInit ()

virtual void	postInit ()

virtual void	preUninit ()

virtual void	postUninit ()

Protected Member Functions inherited from jevois::ParameterRegistry
void	addParameter (ParameterBase *const param)

void	removeParameter (ParameterBase *const param)

void	callbackInitCall ()

Protected Attributes
cv::Mat	itsCamMatrix
	Our camera matrix. More...

cv::Mat	itsDistCoeffs
	Our camera distortion coefficients. More...

bool	itsCueChanged = true
	True when users change ranges. More...

std::vector< hsvcue >	itsHSV

std::vector< detection >	itsDetections
	Our detections, combined across all threads. More...

std::mutex	itsDetMtx

std::shared_ptr< Kalman1D >	itsKalH
	Kalman filters to learn and adapt HSV windows over time. More...

std::shared_ptr< Kalman1D >	itsKalS

std::shared_ptr< Kalman1D >	itsKalV

cv::Mat	itsErodeElement
	Erosion and dilation kernels shared across all detect threads. More...

cv::Mat	itsDilateElement

Related Functions
(Note that these are not member functions.)
	JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK (hcue, unsigned char, "Initial cue for target hue (0=red/do not use because of " "wraparound, 30=yellow, 45=light green, 60=green, 75=green cyan, 90=cyan, " "105=light blue, 120=blue, 135=purple, 150=pink)", 45, jevois::Range< unsigned char >(0, 179), ParamCateg)
	Parameter. More...

	JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK (scue, unsigned char, "Initial cue for target saturation lower bound", 50, ParamCateg)
	Parameter. More...

	JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK (vcue, unsigned char, "Initial cue for target value (brightness) lower bound", 200, ParamCateg)
	Parameter. More...

	JEVOIS_DECLARE_PARAMETER (maxnumobj, size_t, "Max number of objects to declare a clean image. If more blobs are " "detected in a frame, we skip that frame before we even try to analyze shapes of the blobs", 100, ParamCateg)
	Parameter. More...

	JEVOIS_DECLARE_PARAMETER (hullarea, jevois::Range< unsigned int >, "Range of object area (in pixels) to track. Use this " "if you want to skip shape analysis of very large or very small blobs", jevois::Range< unsigned int >(20 20, 300 300), ParamCateg)
	Parameter. More...

	JEVOIS_DECLARE_PARAMETER (hullfill, int, "Max fill ratio of the convex hull (percent). Lower values mean your shape " "occupies a smaller fraction of its convex hull. This parameter sets an upper bound, " "fuller shapes will be rejected.", 50, jevois::Range< int >(1, 100), ParamCateg)
	Parameter. More...

	JEVOIS_DECLARE_PARAMETER (erodesize, size_t, "Erosion structuring element size (pixels), or 0 for no erosion", 2, ParamCateg)
	Parameter. More...

	JEVOIS_DECLARE_PARAMETER (dilatesize, size_t, "Dilation structuring element size (pixels), or 0 for no dilation", 4, ParamCateg)
	Parameter. More...

	JEVOIS_DECLARE_PARAMETER (epsilon, double, "Shape smoothing factor (higher for smoother). Shape smoothing is applied " "to remove small contour defects before the shape is analyzed.", 0.015, jevois::Range< double >(0.001, 0.999), ParamCateg)
	Parameter. More...

	JEVOIS_DECLARE_PARAMETER (debug, bool, "Show contours of all object candidates if true", false, ParamCateg)
	Parameter. More...

	JEVOIS_DECLARE_PARAMETER (threads, size_t, "Number of parallel vision processing threads. Thread 0 uses the HSV values " "provided by user parameters thread 1 broadens that fixed range a bit threads 2-3 use a " "narrow and broader learned HSV window over time", 4, jevois::Range< size_t >(2, 4), ParamCateg)
	Parameter. More...

	JEVOIS_DECLARE_PARAMETER (showthread, size_t, "Thread number that is used to display HSV-thresholded image", 0, jevois::Range< size_t >(0, 3), ParamCateg)
	Parameter. More...

	JEVOIS_DECLARE_PARAMETER (ethresh, double, "Shape error threshold (lower is stricter for exact shape)", 900.0, jevois::Range< double >(0.01, 1000.0), ParamCateg)
	Parameter. More...

	JEVOIS_DECLARE_PARAMETER (dopose, bool, "Compute (and show) 6D object pose, requires a valid camera calibration. " "When dopose is true, 3D serial messages are sent out, otherwise 2D serial messages.", true, ParamCateg)
	Parameter. More...

	JEVOIS_DECLARE_PARAMETER (camparams, std::string, "File stem of camera parameters, or empty. Camera resolution " "will be appended, as well as a .yaml extension. For example, specifying 'calibration' " "here and running the camera sensor at 320x240 will attempt to load " "calibration320x240.yaml from within directory " JEVOIS_SHARE_PATH "/camera/", "calibration", ParamCateg)
	Parameter. More...

	JEVOIS_DECLARE_PARAMETER (iou, double, "Intersection-over-union ratio over which duplicates are eliminated", 0.3, jevois::Range< double >(0.01, 0.99), ParamCateg)
	Parameter. More...

	JEVOIS_DECLARE_PARAMETER (objsize, cv::Size_< float >, "Object size (in meters)", cv::Size_< float >(0.28F, 0.175F), ParamCateg)
	Parameter. More...

	JEVOIS_DECLARE_PARAMETER (margin, size_t, "Margin from from frame borders (pixels). If any corner of a detected shape " "gets closer than the margin to the frame borders, the shape will be rejected. This is to " "avoid possibly bogus 6D pose estimation when the shape starts getting truncated as it " "partially exits the camera's field of view.", 5, ParamCateg)
	Parameter. More...

Detailed Description

Simple color-based detection of a U-shaped object for FIRST Robotics.

This module isolates pixels within a given HSV range (hue, saturation, and value of color pixels), does some cleanups, and extracts object contours. It is looking for a rectangular U shape of a specific size (set by parameter objsize). See screenshots for an example of shape. It sends information about detected objects over serial.

This module usually works best with the camera sensor set to manual exposure, manual gain, manual color balance, etc so that HSV color values are reliable. See the file script.cfg file in this module's directory for an example of how to set the camera settings each time this module is loaded.

This code was loosely inspired by the JeVois ObjectTracker module. Also see FirstPython for a simplified version of this module, written in Python.

This module is provided for inspiration. It has no pretension of actually solving the FIRST Robotics vision problem in a complete and reliable way. It is released in the hope that FRC teams will try it out and get inspired to develop something much better for their own robot.

General pipeline

The basic idea of this module is the classic FIRST robotics vision pipeline: first, select a range of pixels in HSV color pixel space likely to include the object. Then, detect contours of all blobs in range. Then apply some tests on the shape of the detected blobs, their size, fill ratio (ratio of object area compared to its convex hull's area), etc. Finally, estimate the location and pose of the object in the world.

In this module, we run up to 4 pipelines in parallel, using different settings for the range of HSV pixels considered:

Pipeline 0 uses the HSV values provided by user parameters;
Pipeline 1 broadens that fixed range a bit;
Pipelines 2-3 use a narrow and broader learned HSV window over time.

Detections from all 4 pipelines are considered for overlap and quality (raggedness of their outlines), and only the cleanest of several overlapping detections is preserved. From those cleanest detections, pipelines 2-3 learn and adapt the HSV range for future video frames.

Using this module

Check out this tutorial.

Detection and quality control steps

The following messages appear for each of the 4 pipelines, at the bottom of the demo video, to help users figure out why their object may not be detected:

T0 to T3: thread (pipeline) number
H=..., S=..., V=...: HSV range considered by that thread
N=...: number of raw blobs detected in that range
Because N blobs are considered in each thread from this point on, information about only the one that progressed the farthest through a series of tests is shown. One letter is added each time a test is passed:
- H: the convex hull of the blob is quadrilateral (4 vertices)
- A: hull area is within range specified by parameter hullarea
- F: object to hull fill ratio is below the limit set by parameter hullfill (i.e., object is not a solid, filled quadrilateral shape)
- S: the object has 8 vertices after shape smoothing to eliminate small shape defects (a U shape is indeed expected to have 8 vertices).
- E: The shape discrepency between the original shape and the smoothed shape is acceptable per parameter ethresh, i.e., the original contour did not have a lot of defects.
- M: the shape is not too close to the borders of the image, per parameter margin, i.e., it is unlikely to be truncated as the object partially exits the camera's field of view.
- V: Vectors describing the shape as it related to its convex hull are non-zero, i.e., the centroid of the shape is not exactly coincident with the centroid of its convex hull, as we would expect for a U shape.
- U: the shape is roughly upright; upside-down U shapes are rejected as likely spurious.
- OK: this thread detected at least one shape that passed all the tests.

The black and white picture at right shows the pixels in HSV range for the thread determined by parameter showthread (with value 0 by default).

Serial Messages

This module can send standardized serial messages as described in Standardized serial messages formatting. One message is issued on every video frame for each detected and good object. The id field in the messages simply is FIRST for all messages.

When dopose is turned on, 3D messages will be sent, otherwise 2D messages.

2D messages when dopose is off:

Serial message type: 2D
id: always FIRST
x, y, or vertices: standardized 2D coordinates of object center or corners
w, h: standardized marker size
extra: none (empty string)

3D messages when dopose is on:

Serial message type: 3D
id: always FIRST
x, y, z, or vertices: 3D coordinates in millimeters of object center, or corners
w, h, d: object size in millimeters, a depth of 1mm is always used
extra: none (empty string)

NOTE: 3D pose estimation from low-resolution 176x144 images at 120fps can be quite noisy. Make sure you tune your HSV ranges very well if you want to operate at 120fps (see below). To operate more reliably at very low resolutions, one may want to improve this module by adding subpixel shape refinement and tracking across frames.

See Standardized serial messages formatting for more on standardized serial messages, and Helper functions to convert coordinates from camera resolution to standardized for more info on standardized coordinates.

Trying it out

The default parameter settings (which are set in script.cfg explained below) attempt to detect yellow-green objects. Present an object to the JeVois camera and see whether it is detected. When detected and good enough according to a number of quality control tests, the outline of the object is drawn.

For further use of this module, you may want to check out the following tutorials:

Tuning

You need to provide the exact width and height of your physical shape to parameter objsize for this module to work. It will look for a shape of that physical size (though at any distance and orientation from the camera). Be sure you edit script.cfg and set the parameter objsize in there to the true measured physical size of your shape.

You should adjust parameters hcue, scue, and vcue to isolate the range of Hue, Saturation, and Value (respectively) that correspond to the objects you want to detect. Note that there is a script.cfg file in this module's directory that provides a range tuned to a light yellow-green object, as shown in the demo screenshot.

Tuning the parameters is best done interactively by connecting to your JeVois camera while it is looking at some object of the desired color. Once you have achieved a tuning, you may want to set the hcue, scue, and vcue parameters in your script.cfg file for this module on the microSD card (see below).

Typically, you would start by narrowing down on the hue, then the value, and finally the saturation. Make sure you also move your camera around and show it typical background clutter so check for false positives (detections of things which you are not interested, which can happen if your ranges are too wide).

Config file

JeVois allows you to store parameter settings and commands in a file named script.cfg stored in the directory of a module. The file script.cfg may contain any sequence of commands as you would type them interactively in the JeVois command-line interface. For the FirstVision module, a default script is provided that sets the camera to manual color, gain, and exposure mode (for more reliable color values), and other example parameter values.

The script.cfg file for FirstVision is stored on your microSD at JEVOIS:/modules/JeVois/FirstVision/script.cfg

Author: Laurent Itti

Videomapping:: YUYV 176 194 120.0 YUYV 176 144 120.0 JeVois FirstVision

Videomapping:: YUYV 352 194 120.0 YUYV 176 144 120.0 JeVois FirstVision

Videomapping:: YUYV 320 290 60.0 YUYV 320 240 60.0 JeVois FirstVision

Videomapping:: YUYV 640 290 60.0 YUYV 320 240 60.0 JeVois FirstVision

Videomapping:: NONE 0 0 0.0 YUYV 320 240 60.0 JeVois FirstVision

Videomapping:: NONE 0 0 0.0 YUYV 176 144 120.0 JeVois FirstVision

Email:: itti@usc.edu

Address:: University of Southern California, HNB-07A, 3641 Watt Way, Los Angeles, CA 90089-2520, USA

Copyright: Copyright (C) 2017 by Laurent Itti, iLab and the University of Southern California

Main URL:: http://jevois.org

Support URL:: http://jevois.org/doc

Other URL:: http://iLab.usc.edu

License:: GPL v3

Distribution:: Unrestricted

Restrictions:: None

Definition at line 292 of file FirstVision.C.

Constructor & Destructor Documentation

◆ FirstVision()

FirstVision::FirstVision ( std::string const & instance )

inline

Constructor.

Definition at line 403 of file FirstVision.C.

References itsKalH, itsKalS, and itsKalV.

◆ ~FirstVision()

virtual FirstVision::~FirstVision ( )

inlinevirtual

Virtual destructor for safe inheritance.

Definition at line 412 of file FirstVision.C.

Member Function Documentation

◆ cleanupDetections()

void FirstVision::cleanupDetections ( )

inline

Clean up the detections by eliminating duplicates:

Definition at line 653 of file FirstVision.C.

References itsDetections.

Referenced by process().

◆ detect()

void FirstVision::detect	(	cv::Mat const &	imghsv,
		size_t	tnum,
		int	dispx = `3`,
		int	dispy = `242`,
		jevois::RawImage *	outimg = `nullptr`
	)

inline

HSV object detector, we run several of those in parallel with different hsvcue settings.

Definition at line 475 of file FirstVision.C.

References FirstVision::detection::approx, area(), FirstVision::detection::contour, FirstVision::detection::hull, demo::int, itsDilateElement, itsErodeElement, itsHSV, FirstVision::hsvcue::rmax(), FirstVision::hsvcue::rmin(), FirstVision::detection::serr, jevois::sformat(), and demo::str.

Referenced by PythonObject6D.PythonObject6D::process(), process(), and PythonObject6D.PythonObject6D::processNoUSB().

◆ drawDetections()

void FirstVision::drawDetections	(	jevois::RawImage &	outimg,
		std::vector< std::vector< cv::Point2f > >	corners,
		std::vector< cv::Vec3d > const &	rvecs,
		std::vector< cv::Vec3d > const &	tvecs
	)

inline

Definition at line 944 of file FirstVision.C.

References jevois::rawimage::drawLine(), h, demo::int, itsCamMatrix, itsDistCoeffs, and demo::w.

Referenced by PythonObject6D.PythonObject6D::process(), and process().

◆ estimatePose()

void FirstVision::estimatePose	(	std::vector< std::vector< cv::Point2f > > &	corners,
		cv::OutputArray	_rvecs,
		cv::OutputArray	_tvecs
	)

inline

Estimate 6D pose of detected objects, if dopose parameter is true, otherwise just 2D corners.

Inspired from the ArUco module of opencv_contrib The corners array is always filled, but rvecs and tvecs only are if dopose is true

Definition at line 418 of file FirstVision.C.

References demo::int, itsCamMatrix, itsDetections, and itsDistCoeffs.

Referenced by PythonObject6D.PythonObject6D::process(), process(), and PythonObject6D.PythonObject6D::processNoUSB().

◆ learnHSV()

void FirstVision::learnHSV	(	size_t	nthreads,
		cv::Mat const &	imgbgr,
		jevois::RawImage *	outimg = `nullptr`
	)

inline

Learn and update our HSV ranges.

Definition at line 692 of file FirstVision.C.

References jevois::async(), H, h, itsDetections, itsHSV, itsKalH, itsKalS, itsKalV, and demo::w.

Referenced by process().

◆ loadCameraCalibration()

void FirstVision::loadCameraCalibration	(	unsigned int	w,
		unsigned int	h
	)

inline

Load camera calibration parameters.

Definition at line 451 of file FirstVision.C.

References freeze(), h, itsCamMatrix, itsDistCoeffs, LERROR, LINFO, to_string(), and demo::w.

Referenced by PythonObject6D.PythonObject6D::process(), process(), and PythonObject6D.PythonObject6D::processNoUSB().

◆ onParamChange() [1/3]

void FirstVision::onParamChange	(	hcue const &	,
		unsigned char const &
	)

inlineoverrideprotected

Definition at line 302 of file FirstVision.C.

References itsCueChanged.

◆ onParamChange() [2/3]

void FirstVision::onParamChange	(	scue const &	,
		unsigned char const &
	)

inlineoverrideprotected

Definition at line 303 of file FirstVision.C.

References itsCueChanged.

◆ onParamChange() [3/3]

void FirstVision::onParamChange	(	vcue const &	,
		unsigned char const &
	)

inlineoverrideprotected

Definition at line 304 of file FirstVision.C.

References itsCueChanged.

◆ process() [1/2]

virtual void FirstVision::process ( jevois::InputFrame && inframe )

inlineoverridevirtual

Processing function, no USB video output.

Reimplemented from jevois::Module.

Definition at line 803 of file FirstVision.C.

References jevois::async(), cleanupDetections(), jevois::rawimage::convertToCvBGR(), detect(), estimatePose(), h, jevois::RawImage::height, itsCamMatrix, itsDetections, learnHSV(), loadCameraCalibration(), sendAllSerial(), jevois::Timer::start(), jevois::Timer::stop(), updateHSV(), updateStructuringElements(), demo::w, jevois::warnAndIgnoreException(), and jevois::RawImage::width.

◆ process() [2/2]

virtual void FirstVision::process	(	jevois::InputFrame &&	inframe,
		jevois::OutputFrame &&	outframe
	)

inlineoverridevirtual

Processing function, with USB video output.

Reimplemented from jevois::Module.

Definition at line 861 of file FirstVision.C.

References jevois::async(), cleanupDetections(), jevois::rawimage::convertToCvBGR(), detect(), drawDetections(), jevois::rawimage::drawFilledRect(), estimatePose(), jevois::RawImage::fmt, h, jevois::RawImage::height, itsCamMatrix, itsDetections, learnHSV(), LFATAL, loadCameraCalibration(), jevois::rawimage::paste(), jevois::RawImage::require(), sendAllSerial(), jevois::Timer::start(), jevois::Timer::stop(), to_string(), updateHSV(), updateStructuringElements(), demo::w, jevois::warnAndIgnoreException(), jevois::RawImage::width, and jevois::rawimage::writeText().

◆ sendAllSerial()

void FirstVision::sendAllSerial	(	int	w,
		int	h,
		std::vector< std::vector< cv::Point2f > > const &	corners,
		std::vector< cv::Vec3d > const &	rvecs,
		std::vector< cv::Vec3d > const &	tvecs
	)

inline

Send serial messages about each detection:

Definition at line 751 of file FirstVision.C.

References h, quantize-inc::q, jevois::StdModule::sendSerialContour2D(), jevois::StdModule::sendSerialStd3D(), and demo::w.

Referenced by PythonObject6D.PythonObject6D::process(), process(), and PythonObject6D.PythonObject6D::processNoUSB().

◆ updateHSV()

void FirstVision::updateHSV ( size_t nthreads )

inline

Initialize (e.g., if user changes cue params) or update our HSV detection ranges.

Definition at line 608 of file FirstVision.C.

References FirstVision::hsvcue::fix(), itsCueChanged, itsHSV, itsKalH, itsKalS, itsKalV, FirstVision::hsvcue::sih, FirstVision::hsvcue::sis, and FirstVision::hsvcue::siv.

Referenced by process().

◆ updateStructuringElements()

void FirstVision::updateStructuringElements ( )

inline

Update the morphology structuring elements if needed.

Definition at line 784 of file FirstVision.C.

References itsDilateElement, and itsErodeElement.

Referenced by process().

Friends And Related Function Documentation

◆ JEVOIS_DECLARE_PARAMETER() [1/15]

JEVOIS_DECLARE_PARAMETER	(	camparams	,
		std::string	,
		"File stem of camera	parameters,
		or empty. Camera resolution " "will be	appended,
		as well as a .yaml extension. For	example,
		specifying 'calibration' " "here and running the camera sensor at 320x240 will attempt to load " "calibration320x240.yaml from within directory " JEVOIS_SHARE_PATH "/camera/"	,
		"calibration"	,
		ParamCateg
	)

◆ JEVOIS_DECLARE_PARAMETER() [2/15]

JEVOIS_DECLARE_PARAMETER	(	debug	,
		bool	,
		"Show contours of all object candidates if true"	,
		false	,
		ParamCateg
	)

◆ JEVOIS_DECLARE_PARAMETER() [3/15]

JEVOIS_DECLARE_PARAMETER	(	dilatesize	,
		size_t	,
		"Dilation structuring element size	pixels,
		or 0 for no dilation"	,
		4	,
		ParamCateg
	)

◆ JEVOIS_DECLARE_PARAMETER() [4/15]

JEVOIS_DECLARE_PARAMETER	(	dopose	,
		bool	,
		"Compute (and show) 6D object	pose,
		requires a valid camera calibration. " "When dopose is	true,
		3D serial messages are sent	out,
		otherwise 2D serial messages."	,
		true	,
		ParamCateg
	)

◆ JEVOIS_DECLARE_PARAMETER() [5/15]

JEVOIS_DECLARE_PARAMETER	(	epsilon	,
		double	,
		"Shape smoothing factor (higher for smoother). Shape smoothing is applied " "to remove small contour defects before the shape is analyzed."	,
		0.	015,
		jevois::Range< double >	0.001, 0.999,
		ParamCateg
	)

◆ JEVOIS_DECLARE_PARAMETER() [6/15]

JEVOIS_DECLARE_PARAMETER	(	erodesize	,
		size_t	,
		"Erosion structuring element size	pixels,
		or 0 for no erosion"	,
		2	,
		ParamCateg
	)

◆ JEVOIS_DECLARE_PARAMETER() [7/15]

JEVOIS_DECLARE_PARAMETER	(	ethresh	,
		double	,
		"Shape error threshold (lower is stricter for exact shape)"	,
		900.	0,
		jevois::Range< double >	0.01, 1000.0,
		ParamCateg
	)

◆ JEVOIS_DECLARE_PARAMETER() [8/15]

JEVOIS_DECLARE_PARAMETER	(	hullarea	,
		jevois::Range< unsigned int >	,
		"Range of object area (in pixels) to track. Use this " "if you want to skip shape analysis of very large or very small blobs"	,
		jevois::Range< unsigned int >	20 20, 300 300,
		ParamCateg
	)

◆ JEVOIS_DECLARE_PARAMETER() [9/15]

JEVOIS_DECLARE_PARAMETER	(	hullfill	,
		int	,
		"Max fill ratio of the convex hull (percent). Lower values mean your shape " "occupies a smaller fraction of its convex hull. This parameter sets an upper	bound,
		" "fuller shapes will be rejected."	,
		50	,
		jevois::Range< int >	1, 100,
		ParamCateg
	)

◆ JEVOIS_DECLARE_PARAMETER() [10/15]

JEVOIS_DECLARE_PARAMETER	(	iou	,
		double	,
		"Intersection-over-union ratio over which duplicates are eliminated"	,
		0.	3,
		jevois::Range< double >	0.01, 0.99,
		ParamCateg
	)

◆ JEVOIS_DECLARE_PARAMETER() [11/15]

JEVOIS_DECLARE_PARAMETER	(	margin	,
		size_t	,
		"Margin from from frame borders (pixels). If any corner of a detected shape " "gets closer than the margin to the frame	borders,
		the shape will be rejected. This is to " "avoid possibly bogus 6D pose estimation when the shape starts getting truncated as it " "partially exits the camera 's field of view."	,
		5	,
		ParamCateg
	)

◆ JEVOIS_DECLARE_PARAMETER() [12/15]

JEVOIS_DECLARE_PARAMETER	(	maxnumobj	,
		size_t	,
		"Max number of objects to declare a clean image. If more blobs are " "detected in a	frame,
		we skip that frame before we even try to analyze shapes of the blobs"	,
		100	,
		ParamCateg
	)

◆ JEVOIS_DECLARE_PARAMETER() [13/15]

JEVOIS_DECLARE_PARAMETER	(	objsize	,
		cv::Size_< float >	,
		"Object size (in meters)"	,
		cv::Size_< float >	0.28F, 0.175F,
		ParamCateg
	)

◆ JEVOIS_DECLARE_PARAMETER() [14/15]

JEVOIS_DECLARE_PARAMETER	(	showthread	,
		size_t	,
		"Thread number that is used to display HSV-thresholded image"	,
		0	,
		jevois::Range< size_t >	0, 3,
		ParamCateg
	)

◆ JEVOIS_DECLARE_PARAMETER() [15/15]

JEVOIS_DECLARE_PARAMETER	(	threads	,
		size_t	,
		"Number of parallel vision processing threads. Thread 0 uses the HSV values " "provided by user parameters thread 1 broadens that fixed range a bit threads 2-3 use a " "narrow and broader learned HSV window over time"	,
		4	,
		jevois::Range< size_t >	2, 4,
		ParamCateg
	)

◆ JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK() [1/3]

JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK	(	hcue	,
		unsigned char	,
		"Initial cue for target hue (0=red/do not use because of " "wraparound, 30=yellow, 45=light green, 60=green, 75=green cyan, 90=cyan, " "105=light blue, 120=blue, 135=purple, 150=pink)"	,
		45	,
		jevois::Range< unsigned char >	0, 179,
		ParamCateg
	)

◆ JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK() [2/3]

JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK	(	scue	,
		unsigned char	,
		"Initial cue for target saturation lower bound"	,
		50	,
		ParamCateg
	)

◆ JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK() [3/3]

JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK	(	vcue	,
		unsigned char	,
		"Initial cue for target value (brightness) lower bound"	,
		200	,
		ParamCateg
	)

Member Data Documentation

◆ itsCamMatrix

cv::Mat FirstVision::itsCamMatrix

protected

Our camera matrix.

Definition at line 298 of file FirstVision.C.

Referenced by drawDetections(), estimatePose(), loadCameraCalibration(), and process().

◆ itsCueChanged

bool FirstVision::itsCueChanged = true

protected

True when users change ranges.

Definition at line 300 of file FirstVision.C.

Referenced by onParamChange(), and updateHSV().

◆ itsDetections

std::vector<detection> FirstVision::itsDetections

protected

Our detections, combined across all threads.

Definition at line 357 of file FirstVision.C.

Referenced by cleanupDetections(), estimatePose(), learnHSV(), and process().

◆ itsDetMtx

std::mutex FirstVision::itsDetMtx

protected

Definition at line 358 of file FirstVision.C.

◆ itsDilateElement

cv::Mat FirstVision::itsDilateElement

protected

Definition at line 364 of file FirstVision.C.

Referenced by detect(), and updateStructuringElements().

◆ itsDistCoeffs

cv::Mat FirstVision::itsDistCoeffs

protected

Our camera distortion coefficients.

Definition at line 299 of file FirstVision.C.

Referenced by drawDetections(), estimatePose(), and loadCameraCalibration().

◆ itsErodeElement

cv::Mat FirstVision::itsErodeElement

protected

Erosion and dilation kernels shared across all detect threads.

Definition at line 364 of file FirstVision.C.

Referenced by detect(), and updateStructuringElements().

◆ itsHSV

std::vector<hsvcue> FirstVision::itsHSV

protected

Definition at line 343 of file FirstVision.C.

Referenced by detect(), learnHSV(), and updateHSV().

◆ itsKalH

std::shared_ptr<Kalman1D> FirstVision::itsKalH

protected

Kalman filters to learn and adapt HSV windows over time.

Definition at line 361 of file FirstVision.C.

Referenced by FirstVision(), learnHSV(), and updateHSV().

◆ itsKalS

std::shared_ptr<Kalman1D> FirstVision::itsKalS

protected

Definition at line 361 of file FirstVision.C.

Referenced by FirstVision(), learnHSV(), and updateHSV().

◆ itsKalV

std::shared_ptr<Kalman1D> FirstVision::itsKalV

protected

Definition at line 361 of file FirstVision.C.

Referenced by FirstVision(), learnHSV(), and updateHSV().

The documentation for this class was generated from the following file:

src/Modules/FirstVision/FirstVision.C

Classes

Public Member Functions

Protected Member Functions

Protected Attributes

Related Functions

Detailed Description

General pipeline

Using this module

Detection and quality control steps

Serial Messages

Trying it out

Tuning

Config file

Constructor & Destructor Documentation

◆ FirstVision()

◆ ~FirstVision()

Member Function Documentation

◆ cleanupDetections()

◆ detect()

◆ drawDetections()

◆ estimatePose()

◆ learnHSV()

◆ loadCameraCalibration()

◆ onParamChange() [1/3]

◆ onParamChange() [2/3]

◆ onParamChange() [3/3]

◆ process() [1/2]

◆ process() [2/2]

◆ sendAllSerial()

◆ updateHSV()

◆ updateStructuringElements()

Friends And Related Function Documentation

◆ JEVOIS_DECLARE_PARAMETER() [1/15]

◆ JEVOIS_DECLARE_PARAMETER() [2/15]

◆ JEVOIS_DECLARE_PARAMETER() [3/15]

◆ JEVOIS_DECLARE_PARAMETER() [4/15]

◆ JEVOIS_DECLARE_PARAMETER() [5/15]

◆ JEVOIS_DECLARE_PARAMETER() [6/15]

◆ JEVOIS_DECLARE_PARAMETER() [7/15]

◆ JEVOIS_DECLARE_PARAMETER() [8/15]

◆ JEVOIS_DECLARE_PARAMETER() [9/15]

◆ JEVOIS_DECLARE_PARAMETER() [10/15]

◆ JEVOIS_DECLARE_PARAMETER() [11/15]

◆ JEVOIS_DECLARE_PARAMETER() [12/15]

◆ JEVOIS_DECLARE_PARAMETER() [13/15]

◆ JEVOIS_DECLARE_PARAMETER() [14/15]

◆ JEVOIS_DECLARE_PARAMETER() [15/15]

◆ JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK() [1/3]

◆ JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK() [2/3]

◆ JEVOIS_DECLARE_PARAMETER_WITH_CALLBACK() [3/3]

Member Data Documentation

◆ itsCamMatrix

◆ itsCueChanged

◆ itsDetections

◆ itsDetMtx

◆ itsDilateElement

◆ itsDistCoeffs

◆ itsErodeElement

◆ itsHSV

◆ itsKalH

◆ itsKalS

◆ itsKalV
